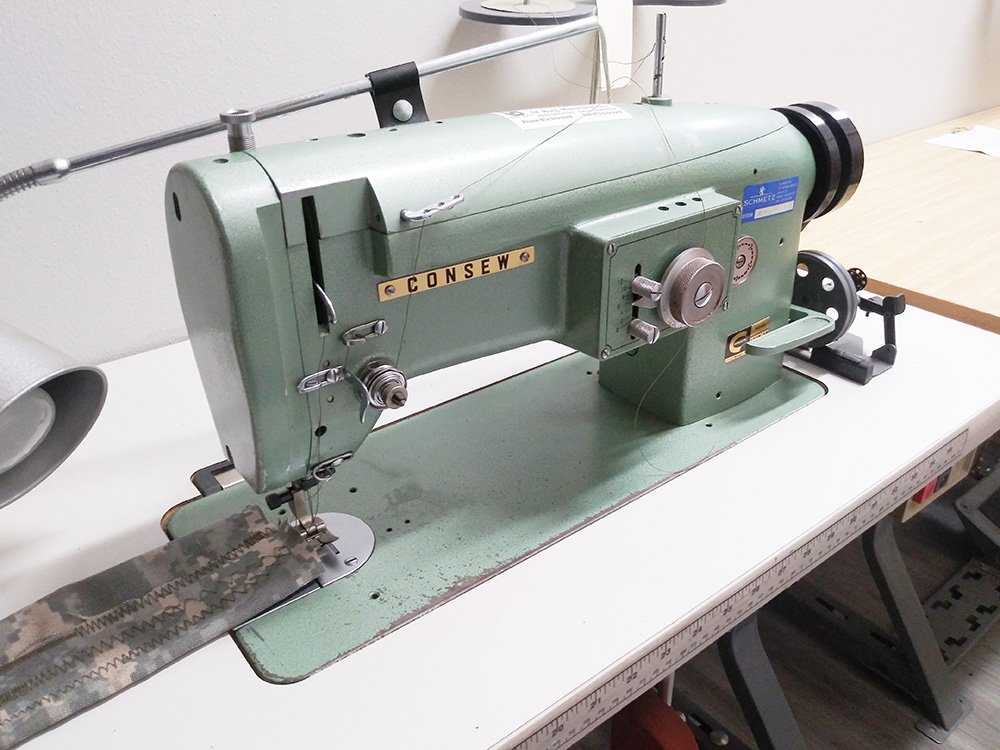

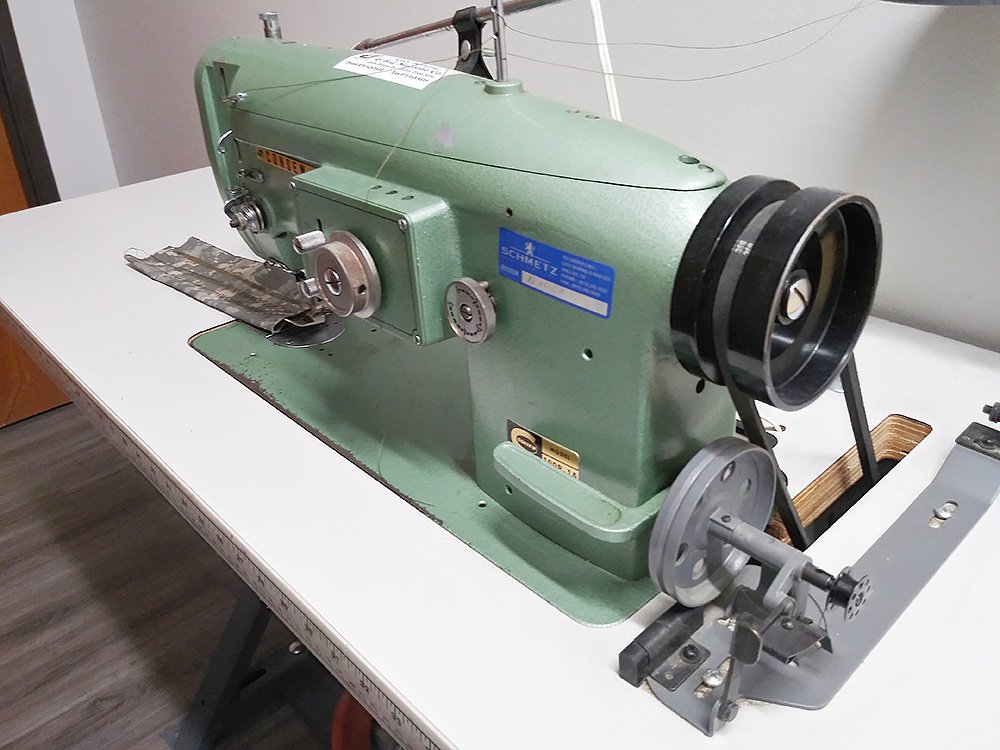

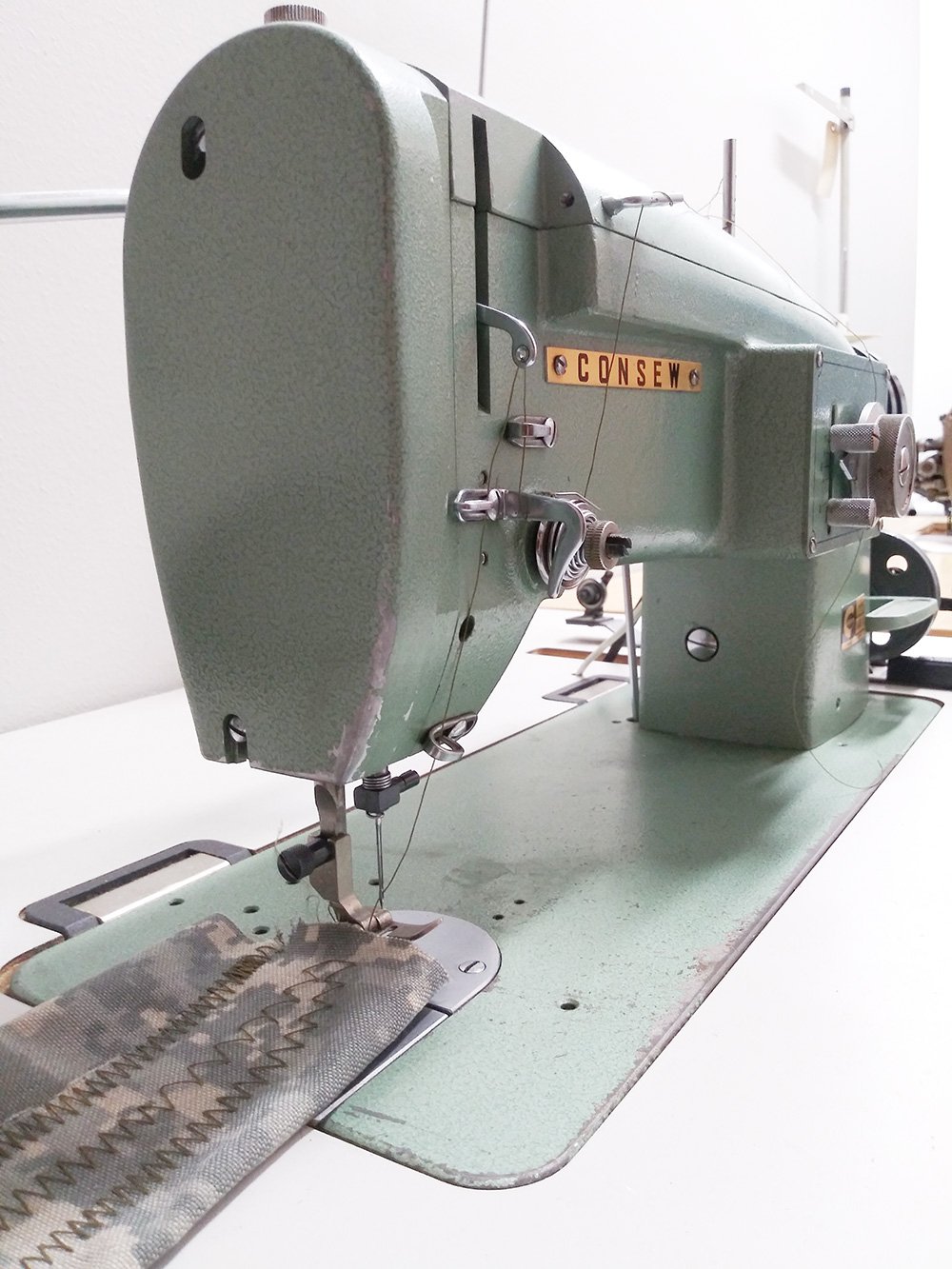

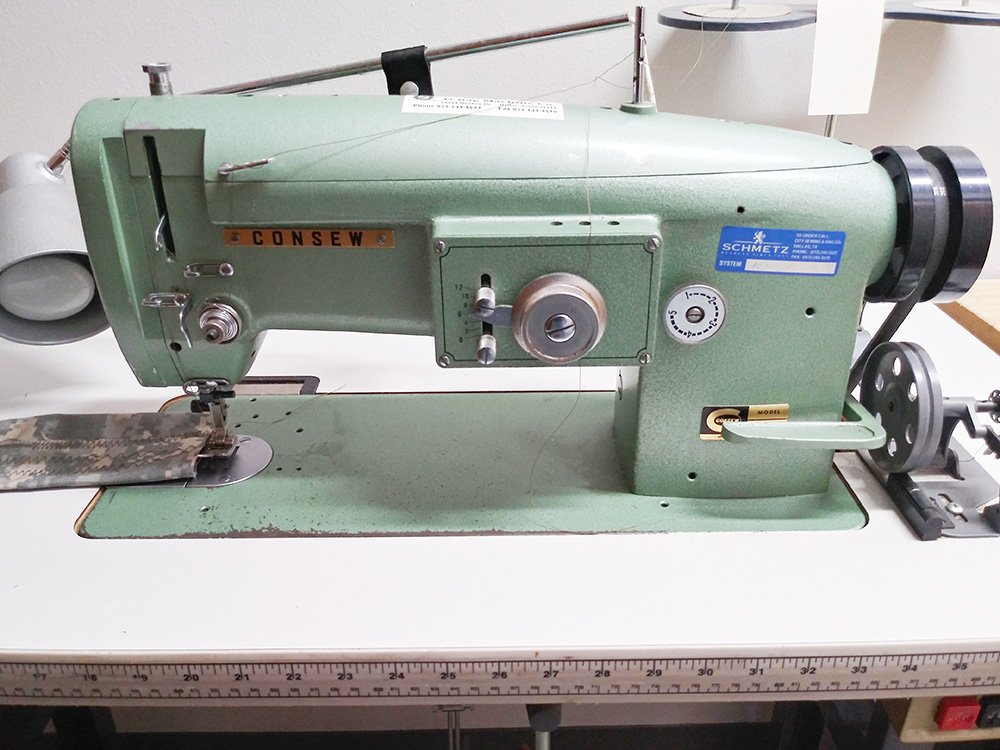

CONSEW 199R-A1 Zig Zag Sewing Machine with Reverse – Made in Japan
USED – Consew 199R-A1 Industrial ZIG ZAG Sewing Machine for Light and Medium Weight Fabrics.
This is an original Made in JAPAN machine in excellent operating condition.
This Package includes a Fully Assembled Table and a Clutch Motor. The motor can be upgraded to an adjustable-speed servo motor for only $95.
SINGLE NEEDLE, DROP FEED, ZIG-ZAG, LOCKSTITCH MACHINE
Consew 199R is a single-needle, drop-feed, zig-zag lockstitch machine with a horizontal axis transverse rotary hook, reverse feed, and combination zig-zag and straight stitch function.
199R – Series Stitches
- Stitch Type-1A
- 2-step / 1-stitch zig-zag
Specifications
- Max Speed (SpM) (speed depends on thread, material and operation)
- Zig-Zag Stitch – 3000 for stitches -1A
- Straight Stitch – 3200 for stitches -1A
- Clearance Under Foot – 25/64″ (10 mm)
- Needle Bar Stroke – 1 11/32″ (34 mm)
- Max Stitch Length – 5 s.p.i. (5 mm)
- Needle – 16 X 95
- Bobbin Metal – B75
- Bobbin Pre-wound – L
- Hook – B70
- Work Space – 10″ (255 mm)
- Bed Size – 7″ x 18 7/8″ (178 x 480 mm)
- Zig-Zag Max Width – 3/8″ (9.5 mm)
Features
- Horizontal axis transverse rotary hook

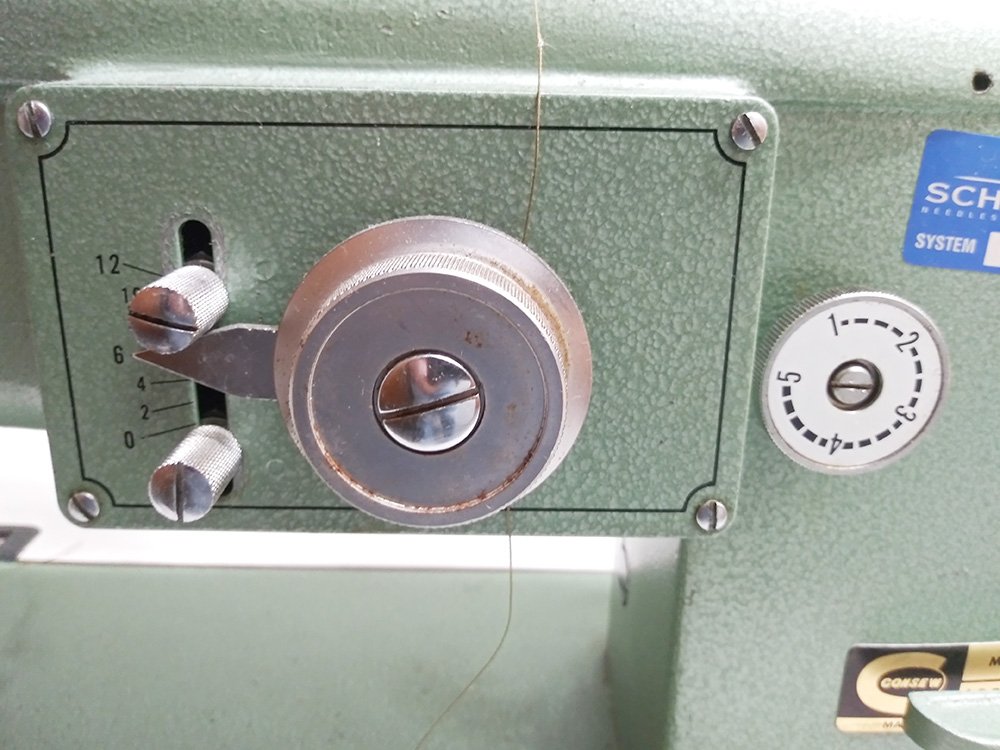

- Wide Zig-Zag – Locking Zig-Zag width regulator
- Straight stitcher when zig-zag is set to 0mm
- Upper feed mechanism helps avoid slippage when sewing
- Reverse stitching
- Maximum width of zig-zag : 3/8″ (9.5 mm)
- Long arm with 10″ free space between needle and arm
Feel free to contact us at 972-428-8698 with any questions or to order this machine over the phone.
