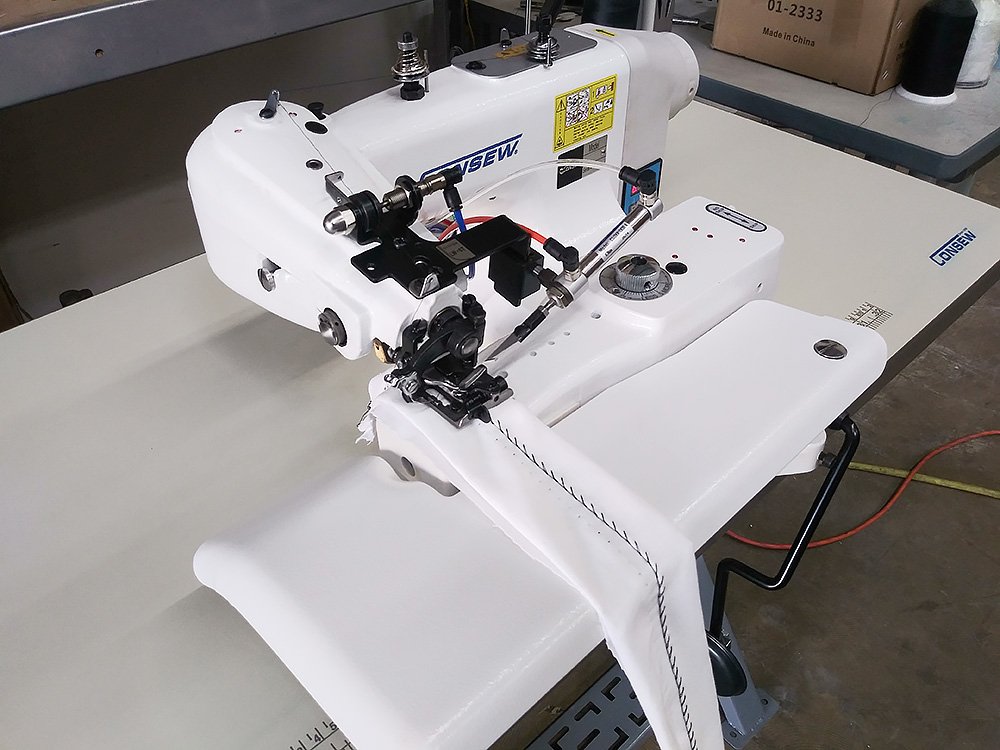

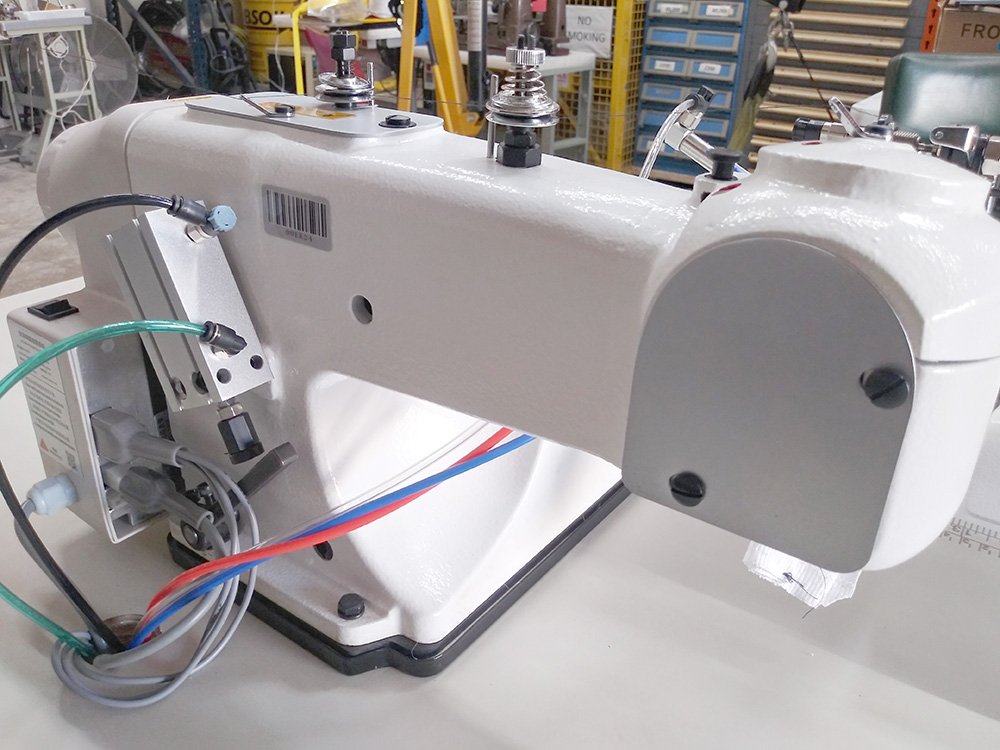

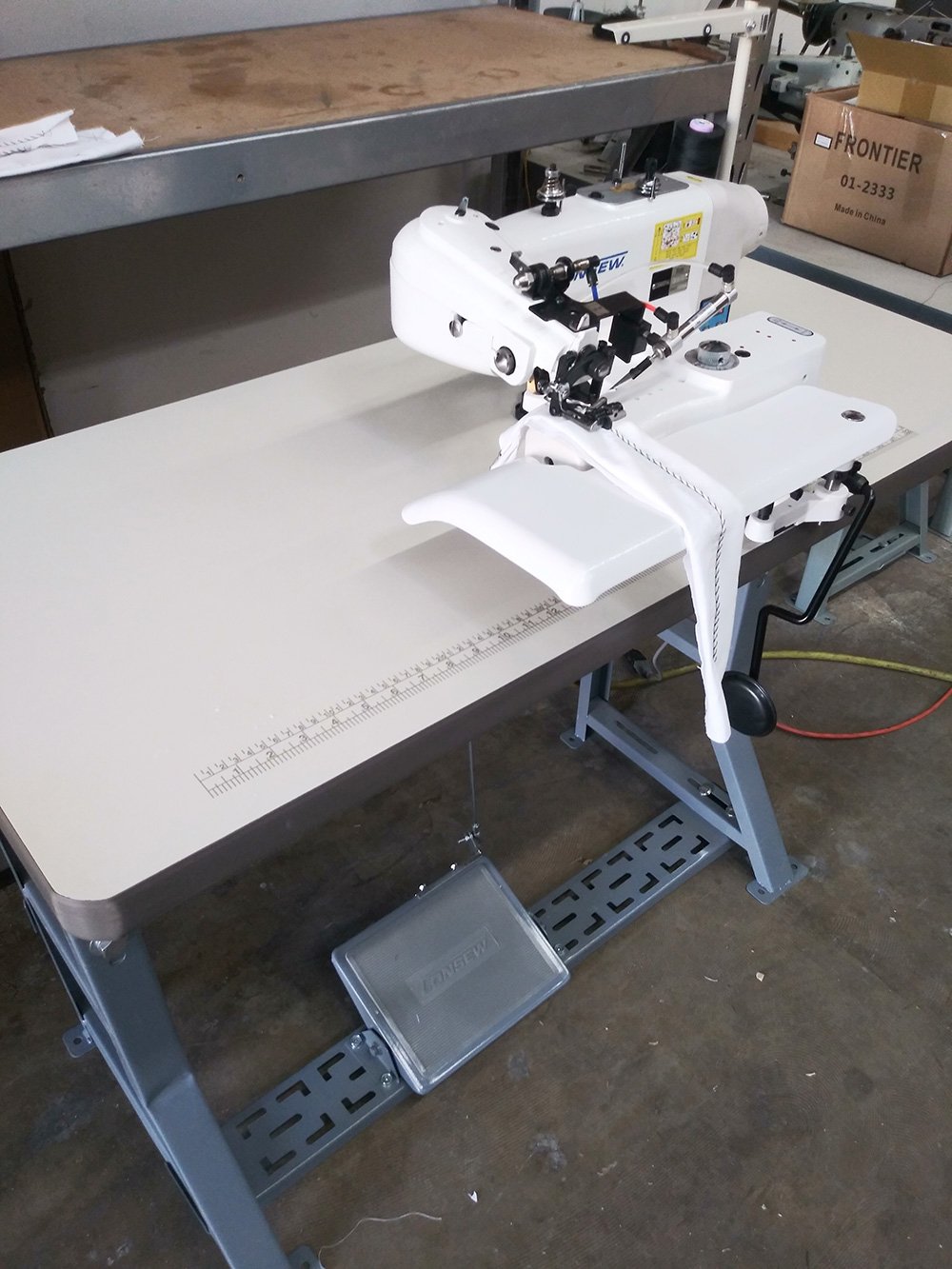

CONSEW CM-101-7DD Industrial Blindstitch Sewing Machine with Direct Drive Motor, Auto Thread Trimmer and Auto Fabric Release
Single Thread, Chainstitch, Blindstitch Machine, Direct Drive with Electronic Auto-Thread Trimmer & Fabric Release
APPLICATIONS:
Perfect for sewing all weights of materials, including synthetics, woolens, cottons, fabrics, and knits
1 to 1 non-skip stitches: Used for felling edge tapes, bottoms of trousers, cuffs, wigging in sleeves, facings to canvas and knit goods, turned-up bottoms of fully lined coats, padding collars and lapels, and reinforcing trouser seats
2 to 1 skip stitch: Ideal for hemming dresses, skirts, slacks, trousers, sportswear, ladies’ coats, draperies, blouses, and other articles
Suitable for felling operations requiring a skip stitch to simulate hand-stitching
2 to 1 skip stitch: Recommended for synthetics and other lightweight materials
1 to 1 non-skip stitch: Best for heavier cotton, woolen, and linen goods
FEATURES:

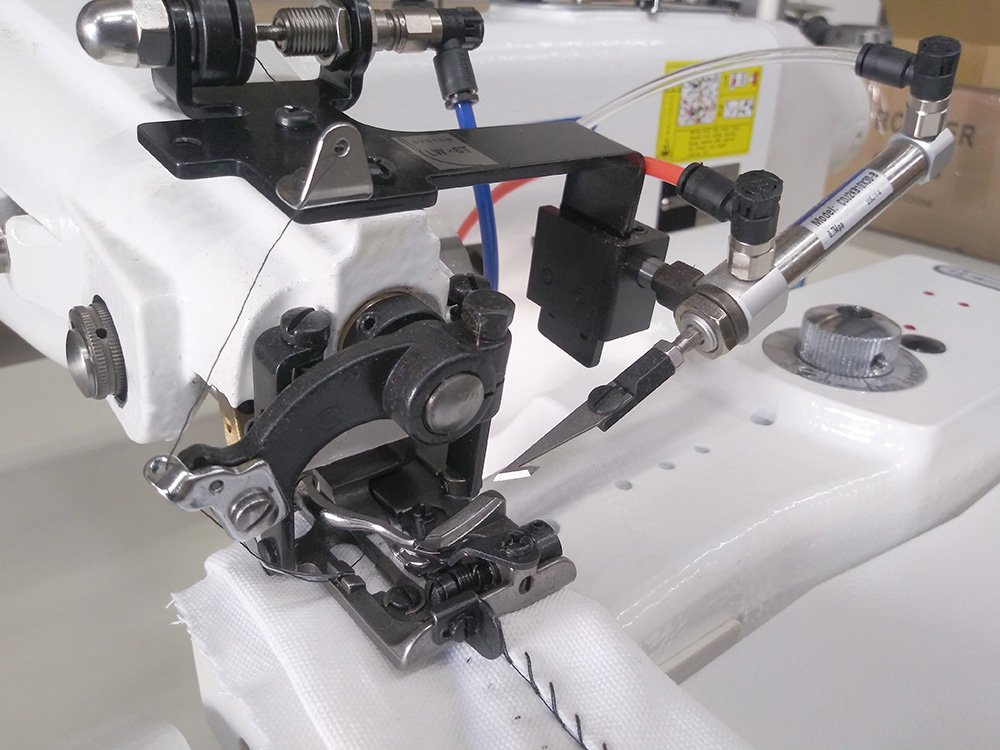

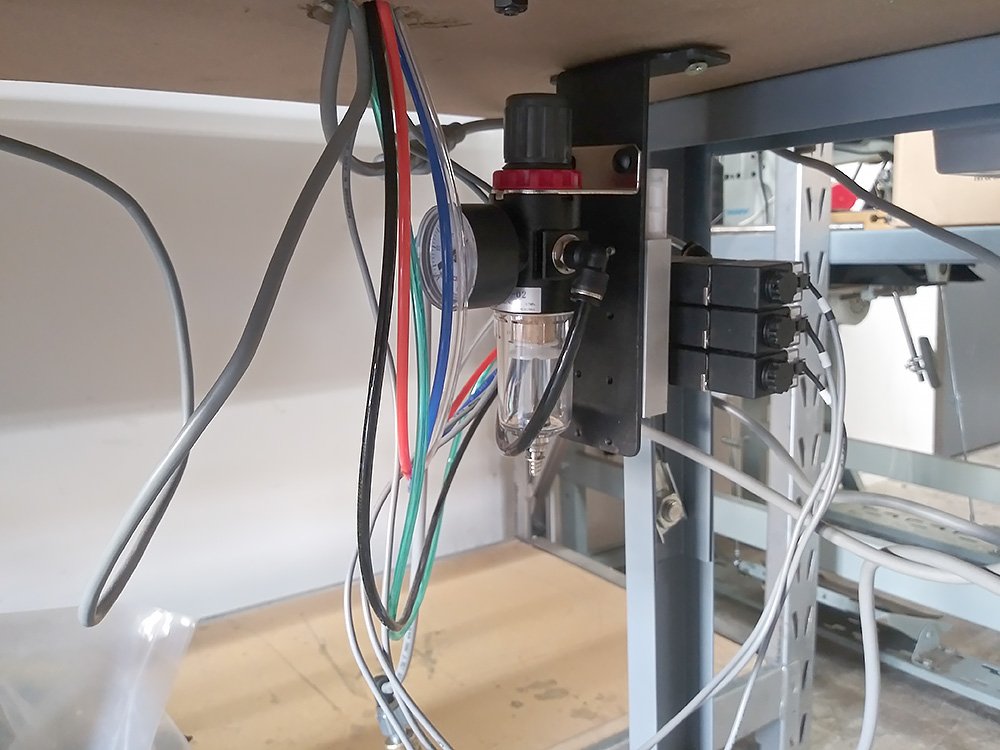

Model CM-101-7DD includes electronic Auto-Thread Trimmer & Fabric Release mechanism (requires compressed air source)

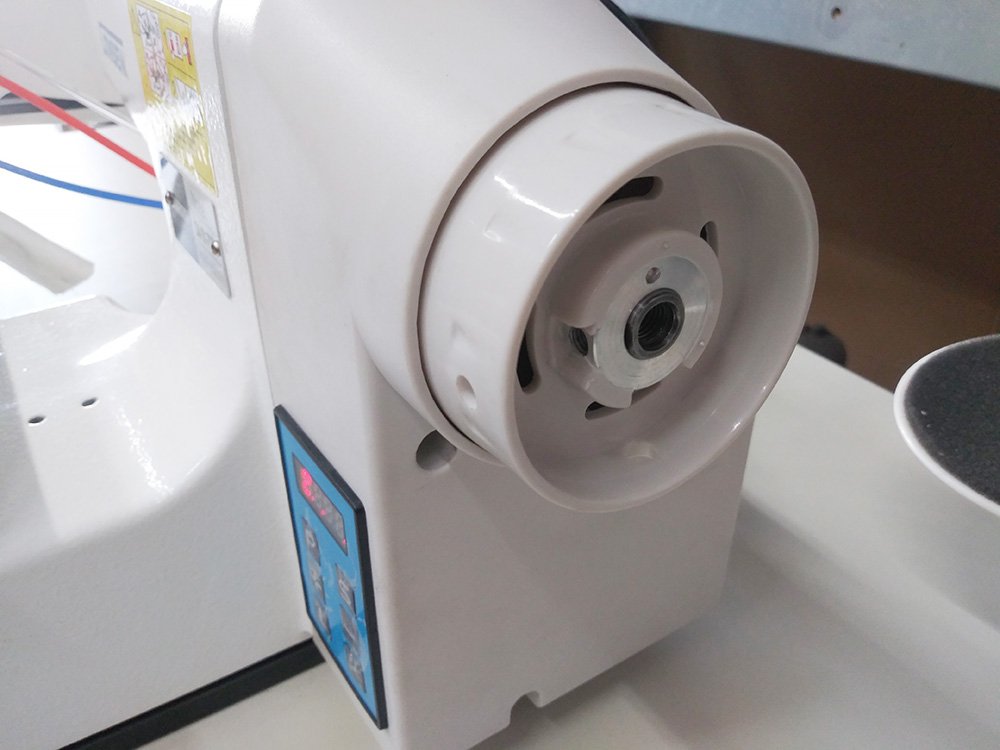

Internal Direct Drive Motor

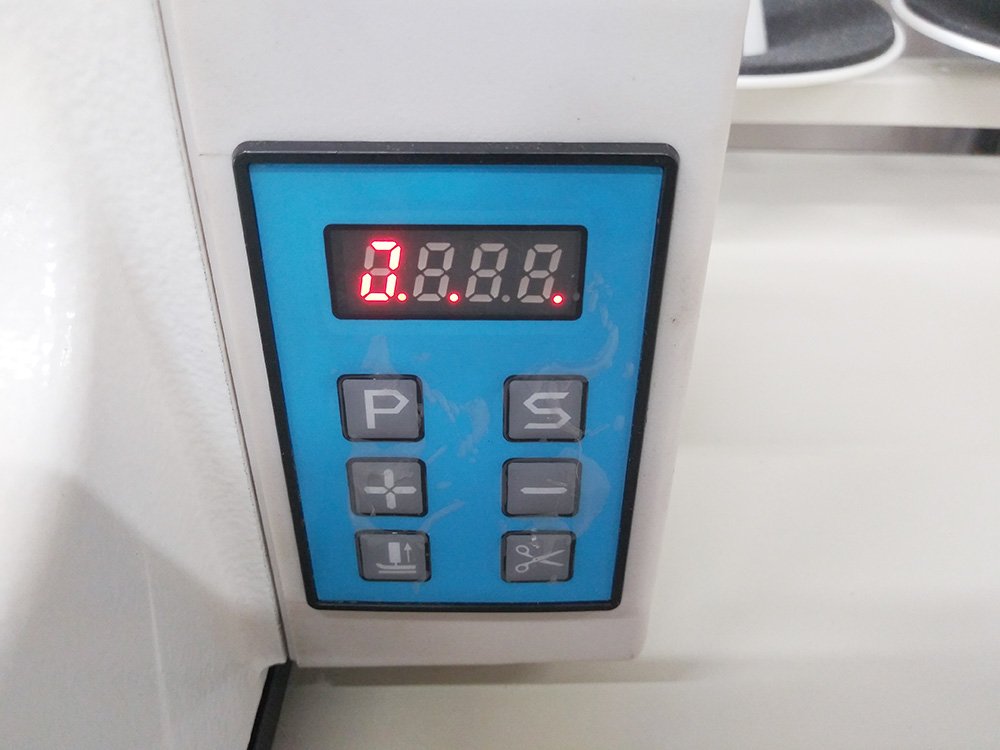

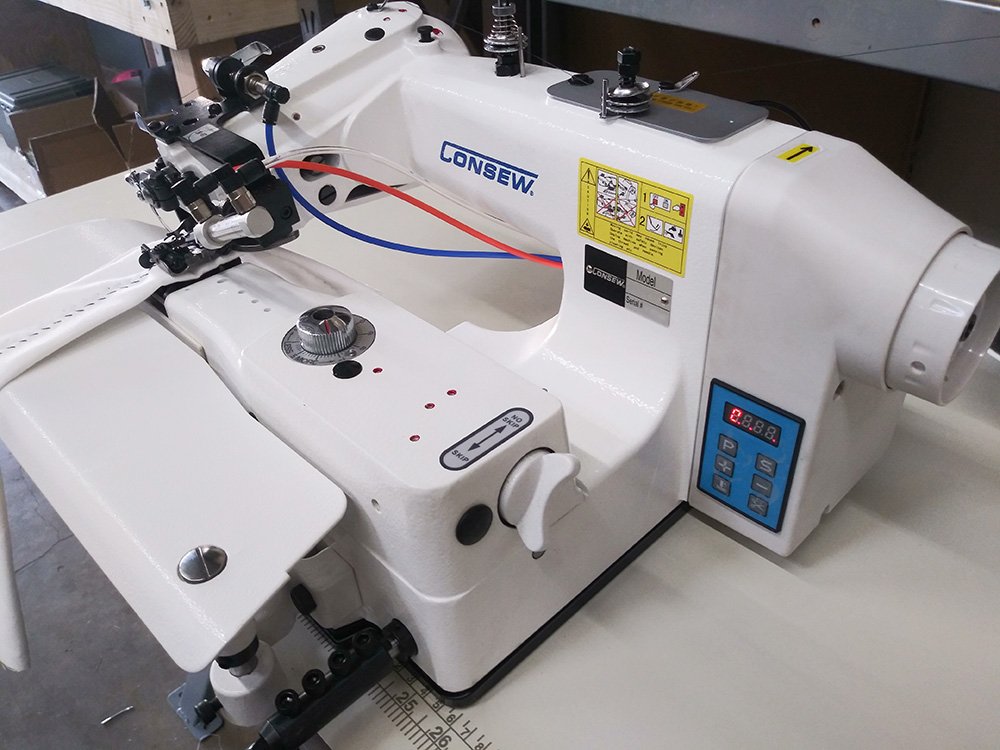

Digital Control Panel

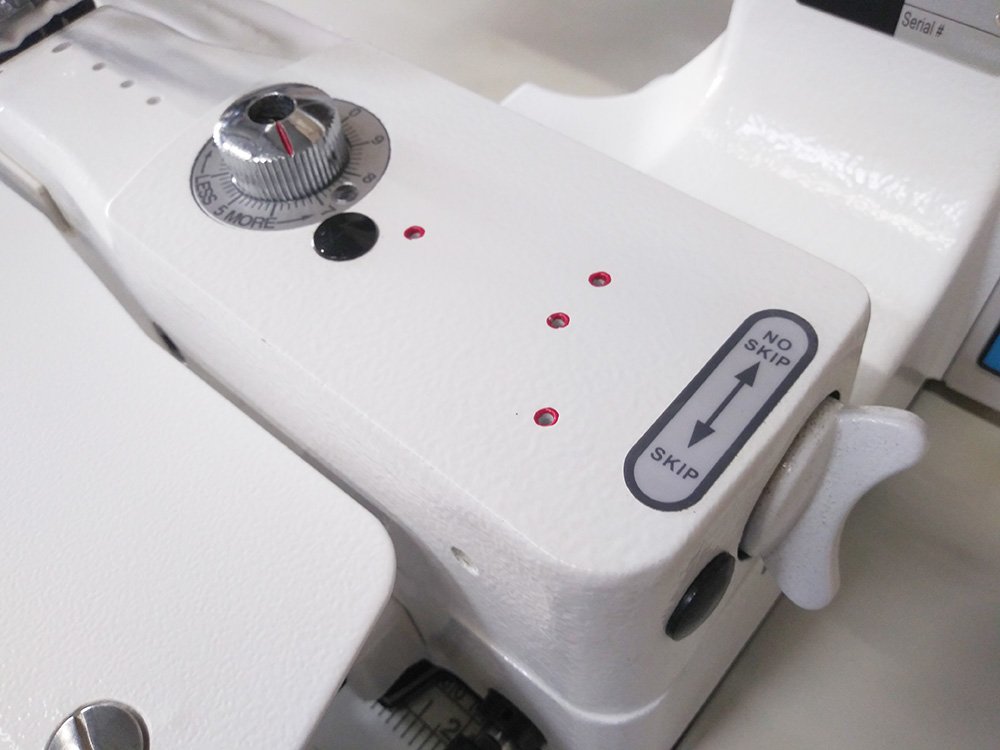

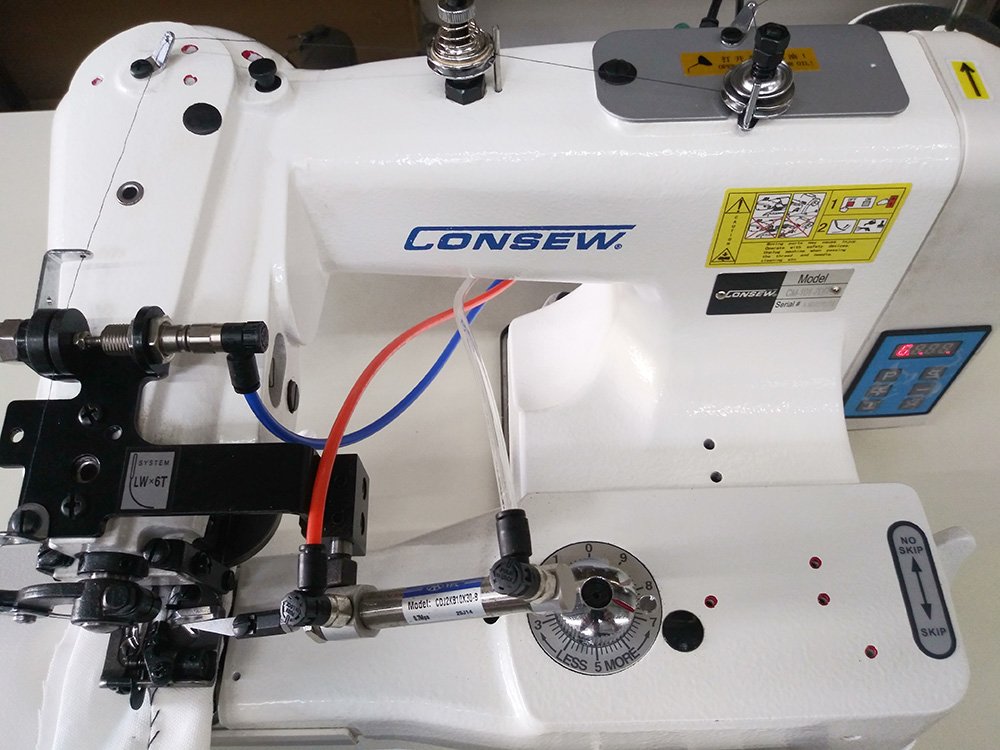

Skip and non-skip stitch lever

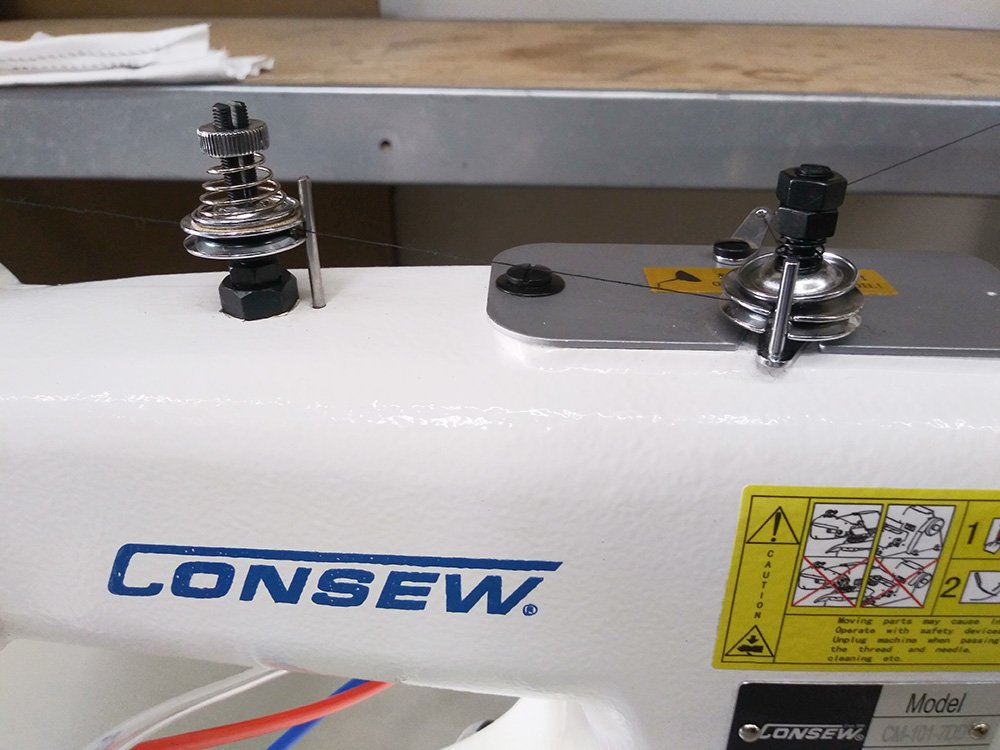

Adjustable thread tension
1 to 1 non-skip stitch and 2 to 1 skip stitch

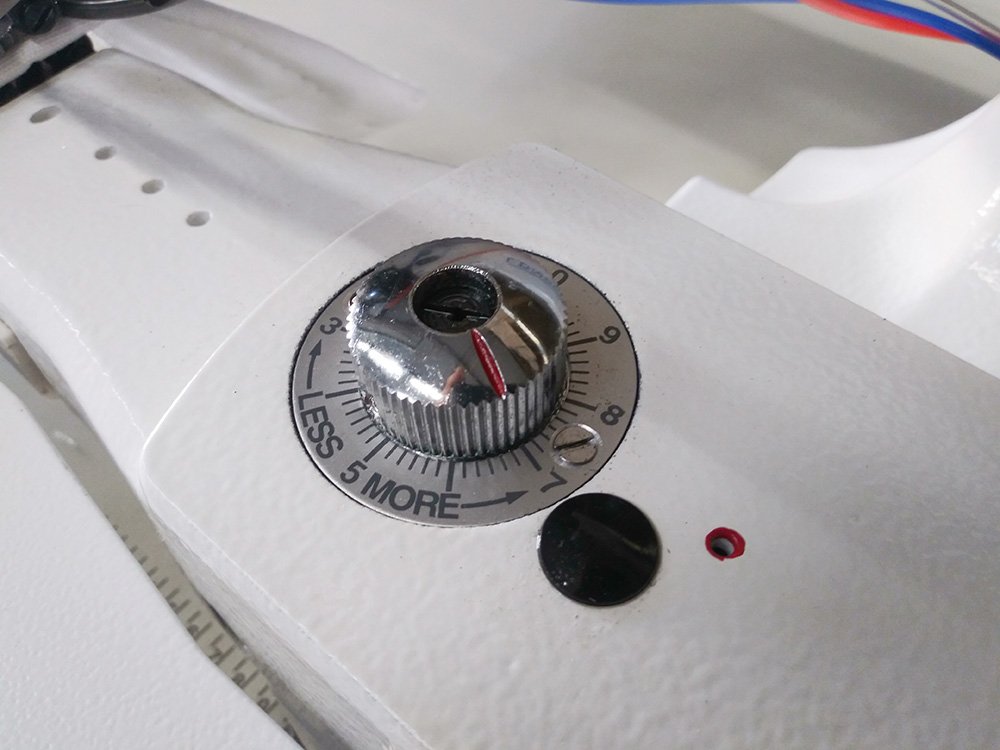

Stitch depth penetration and stitch length adjustment dials

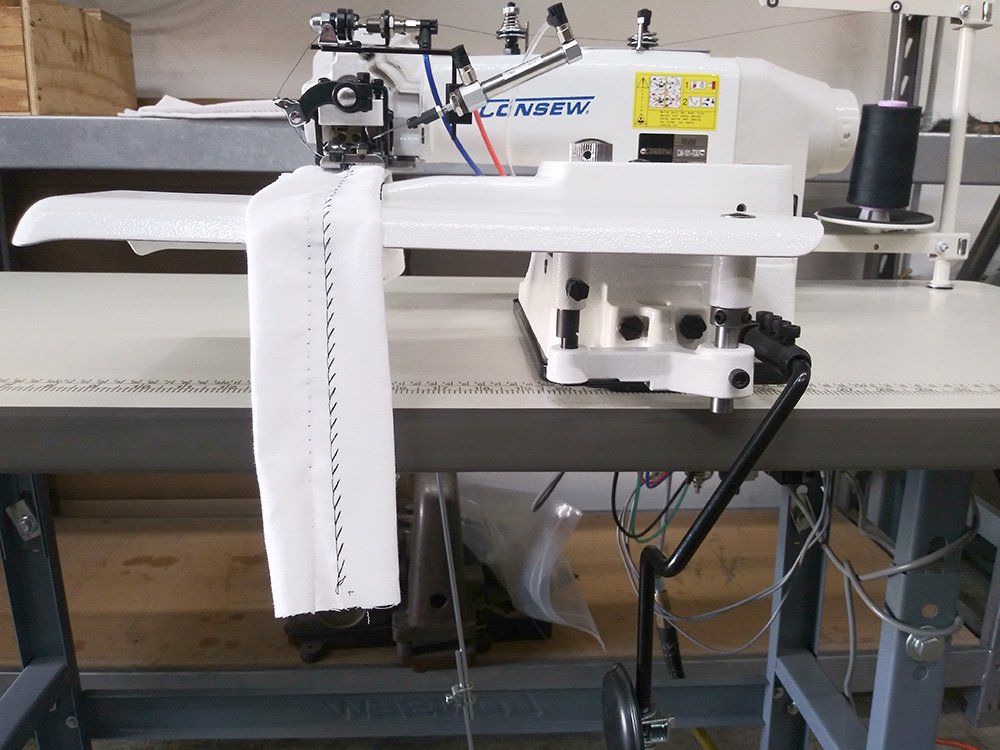

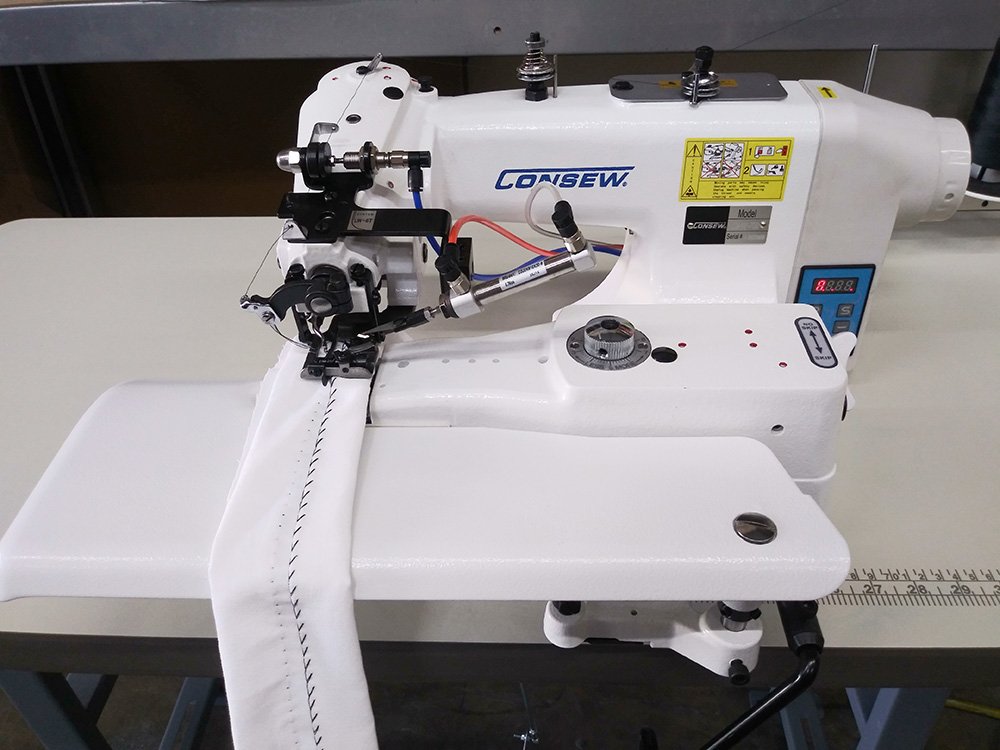

Swing-away work plate for extended working space
Knee-operated feed plate lowers for insertion and removal of workpiece
SPECIFICATIONS:
Number of Needles: 1 (Single)
Feeding Mechanism: Drop Feed
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Stitch Type: 103
Speed, Max (S.P.M.): 2500
Max Stitch Length: 1/4″ – 3/8″ (3-8mm)
Work Space: 7″ (180mm)
Looper: 162
