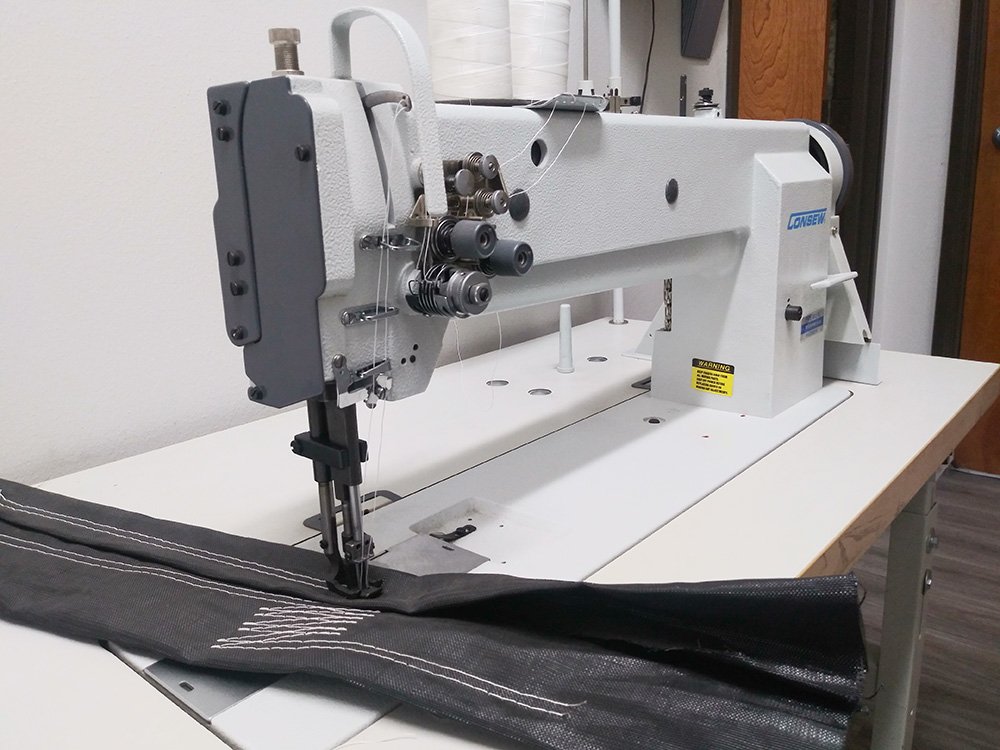

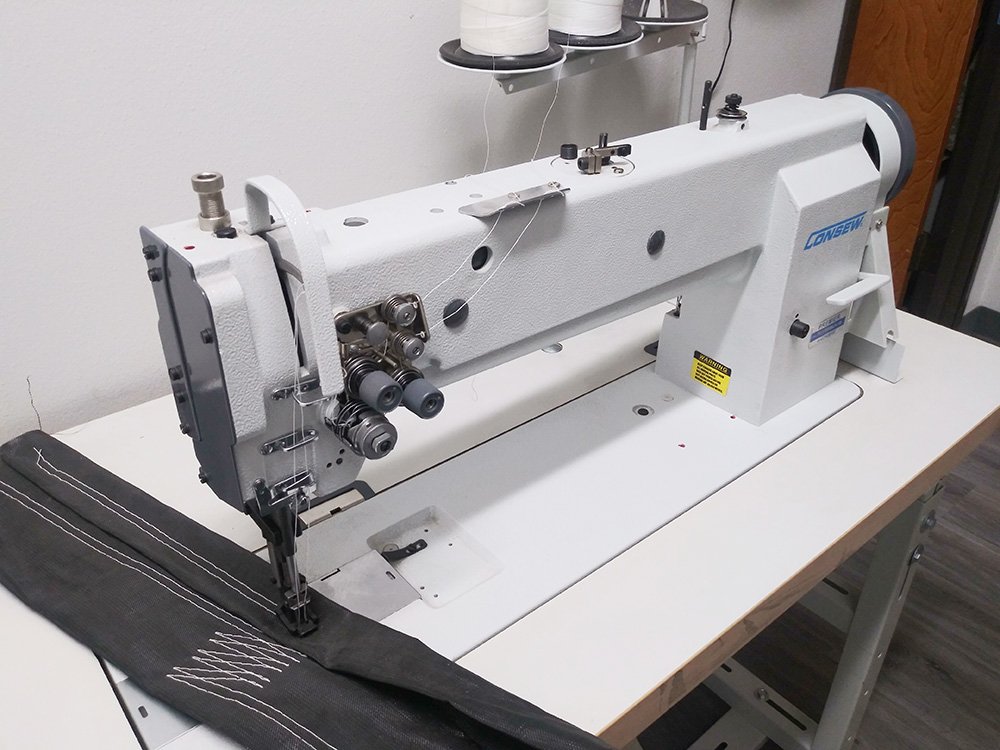

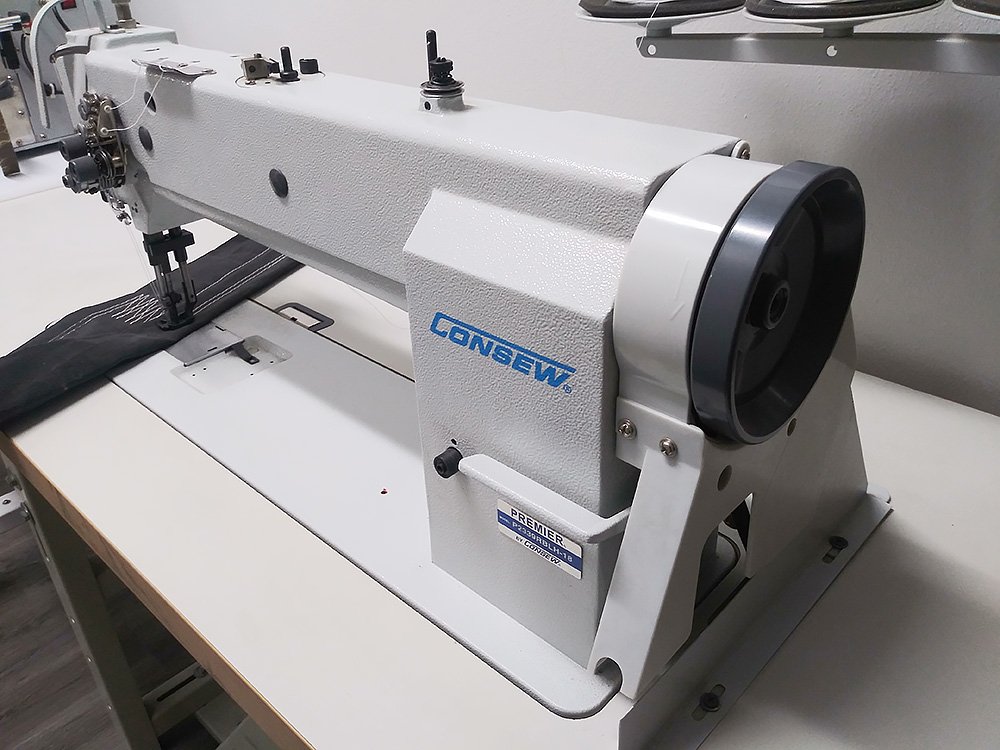

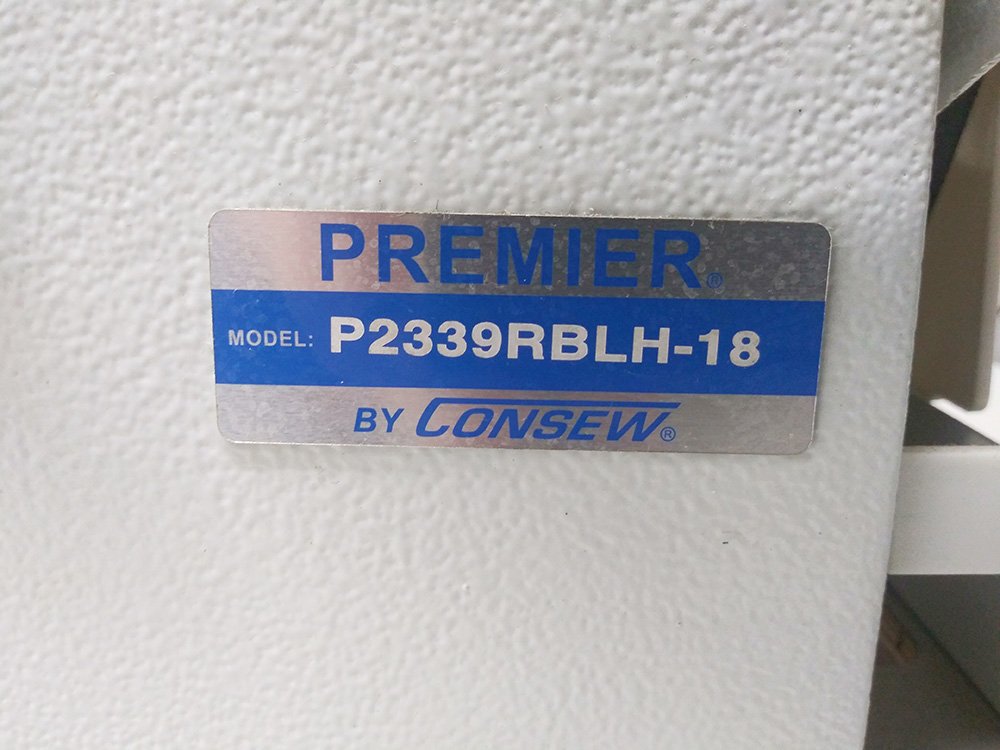

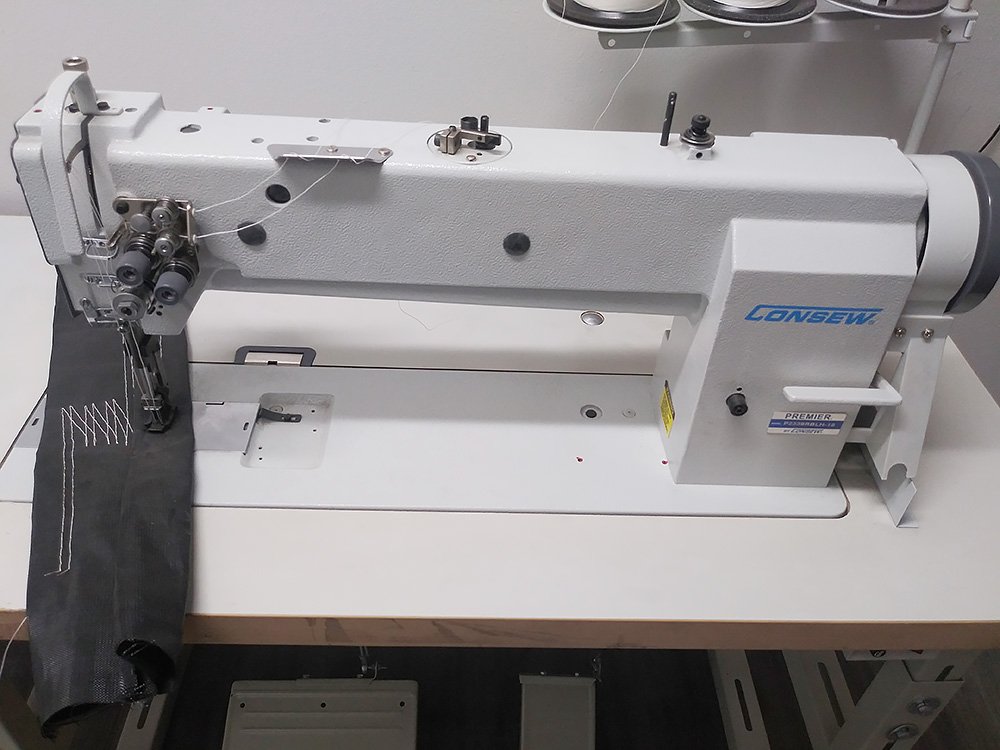

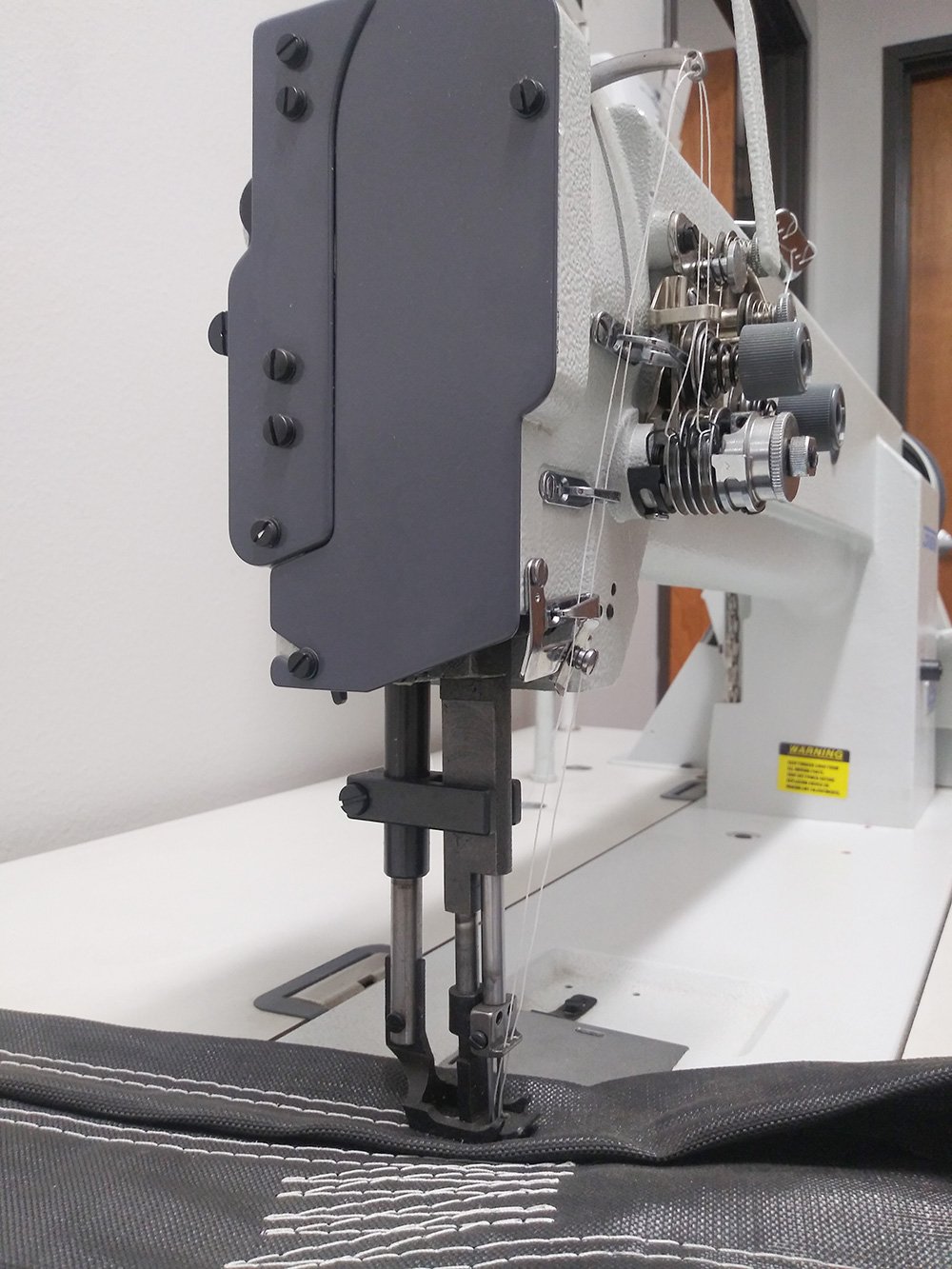

CONSEW p2339RBLH-18 Double Needle Walking Foot Sewing Machine with 18″ Long Arm and 6″ High Arm, 1/4″ Needle Gauge, Fully Assembled
The CONSEW P2339RBLH-18 is a double needle walking foot sewing machine with triple feeding action to move medium to heavy-weight materials with ease at the time of stitching. Vertical axis hooks with large U-Size bobbins. 18″ long arm with the 6″ high arm provides ample space for moving and handling bigger panels of material. Ideal for sewing leather, vinyl, canvas and other upholstery materials ranging in thread size Tex 70 to Tex 210.
The machine features adjustable stitch length, reverse lever, top-mounted bobbin winder and is built to withstand heavy use over a long period of time.

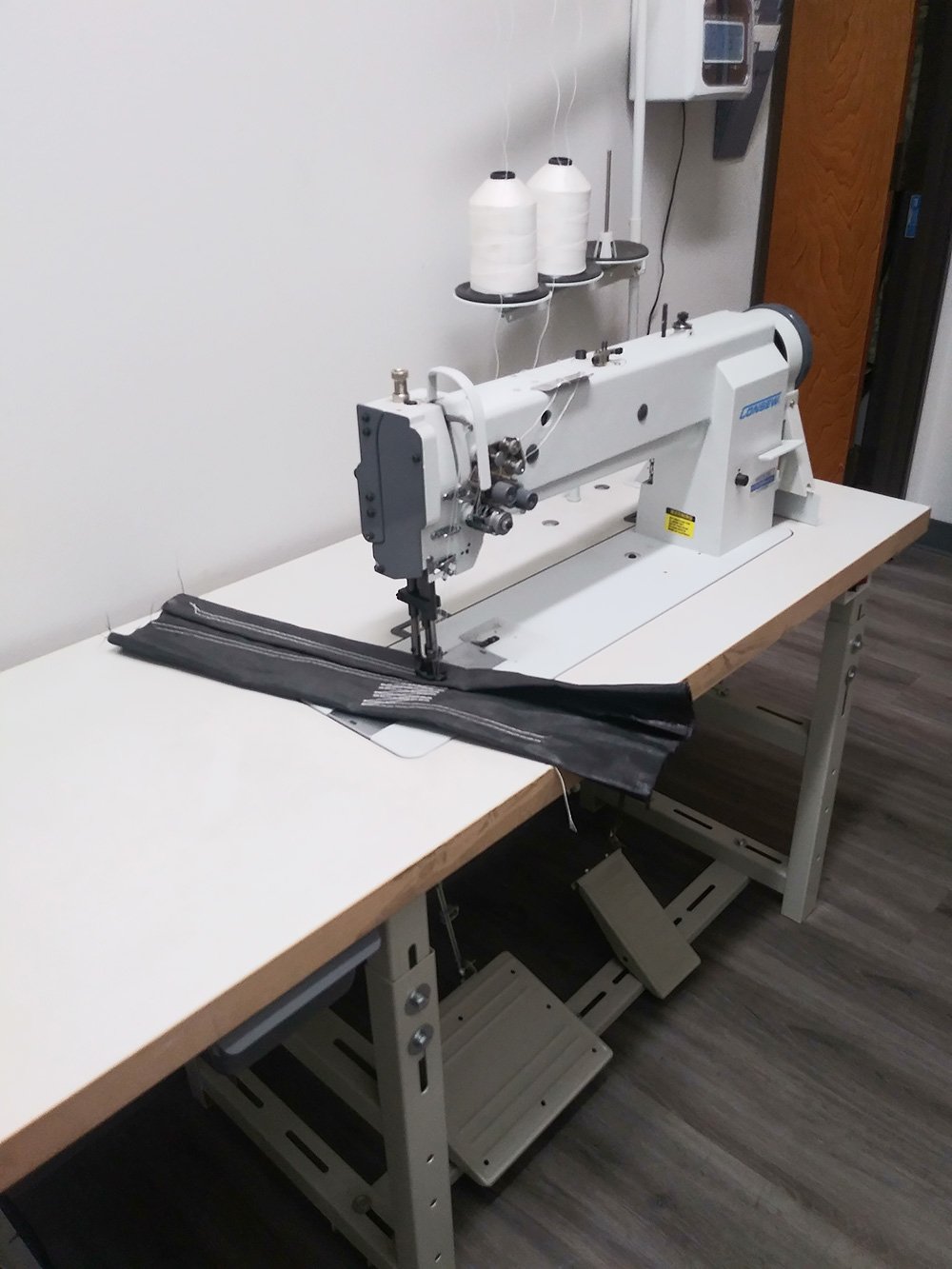

The machine is priced complete, fully assembled and tested at our shop before delivery to the customer. It is set up with
- new table top
- new stand

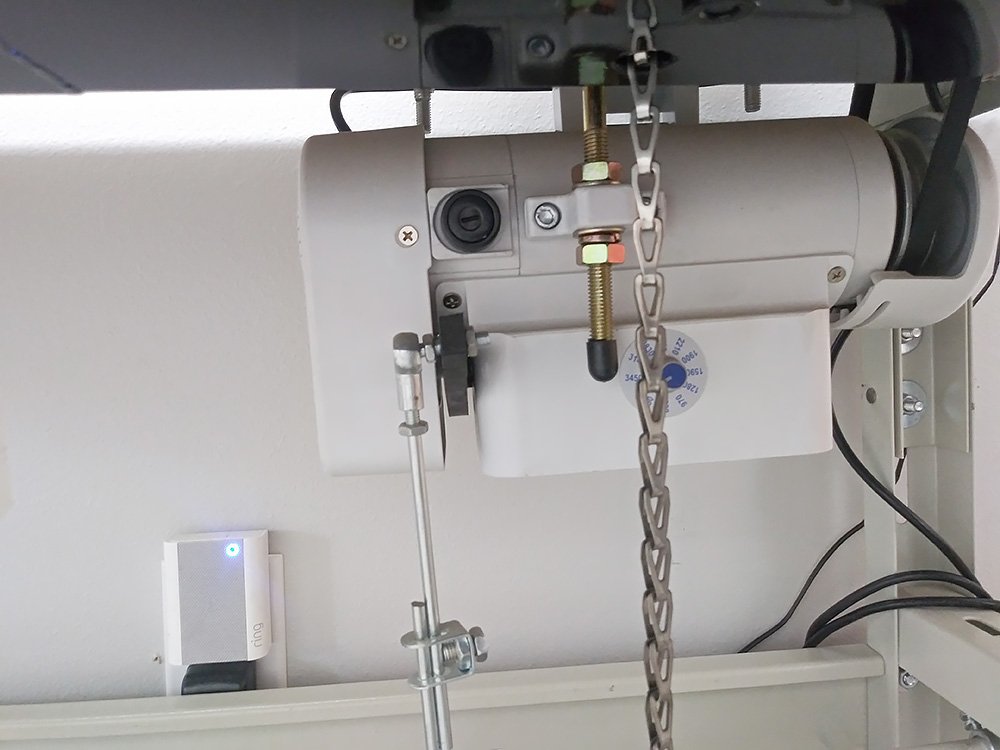

- new 110 Volt SERVO Motor
- thread stand
- foot lift
- factory supplied tools and manuals
- extra bobbins, needles and oil
- will ship complete and fully assembled
Ideal for sewing:
- Leather
- Vinyl
- Canvas
- Cork
- Rubbers and Synthetic materials
- Other medium and heavy weight fabrics

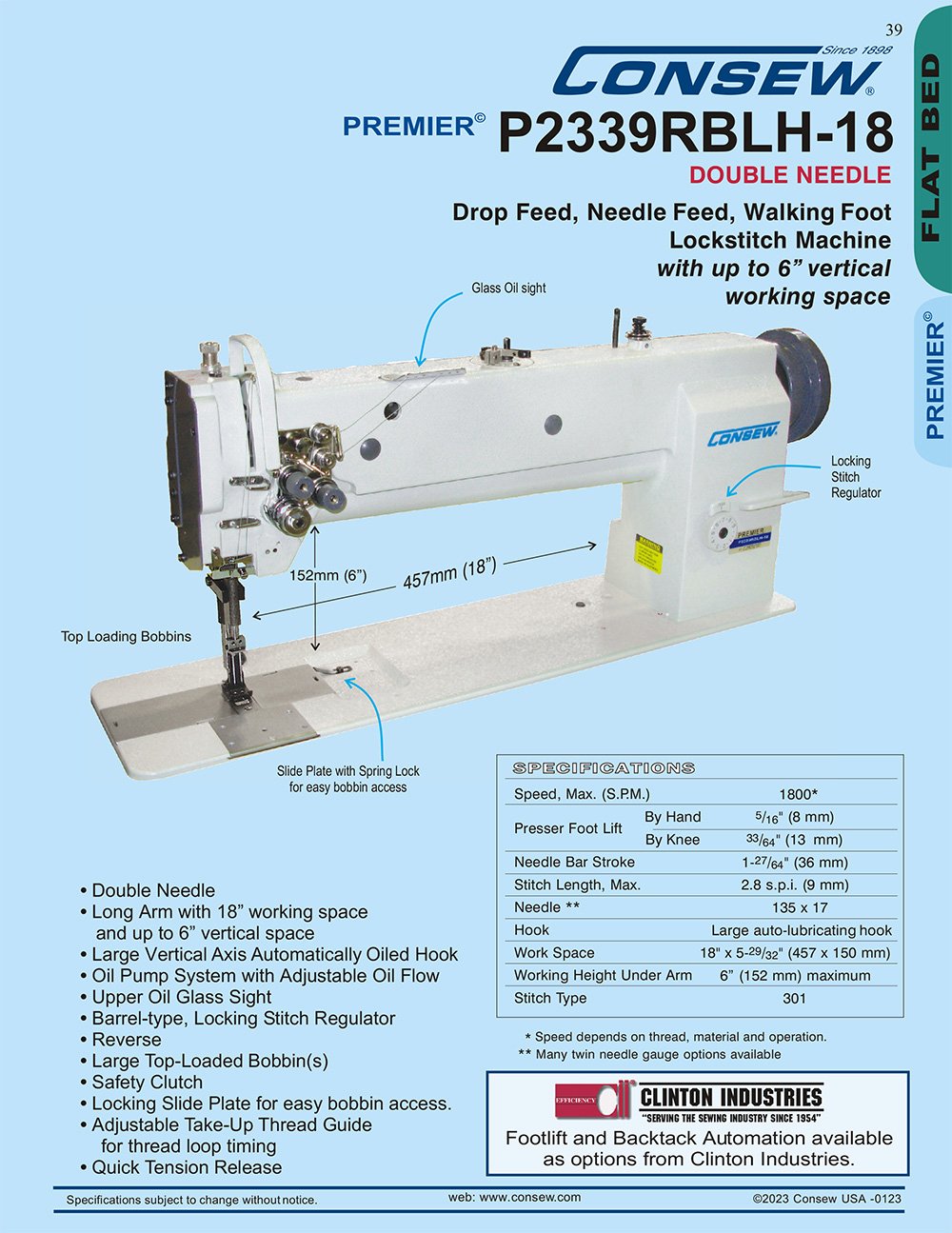

The machine features:

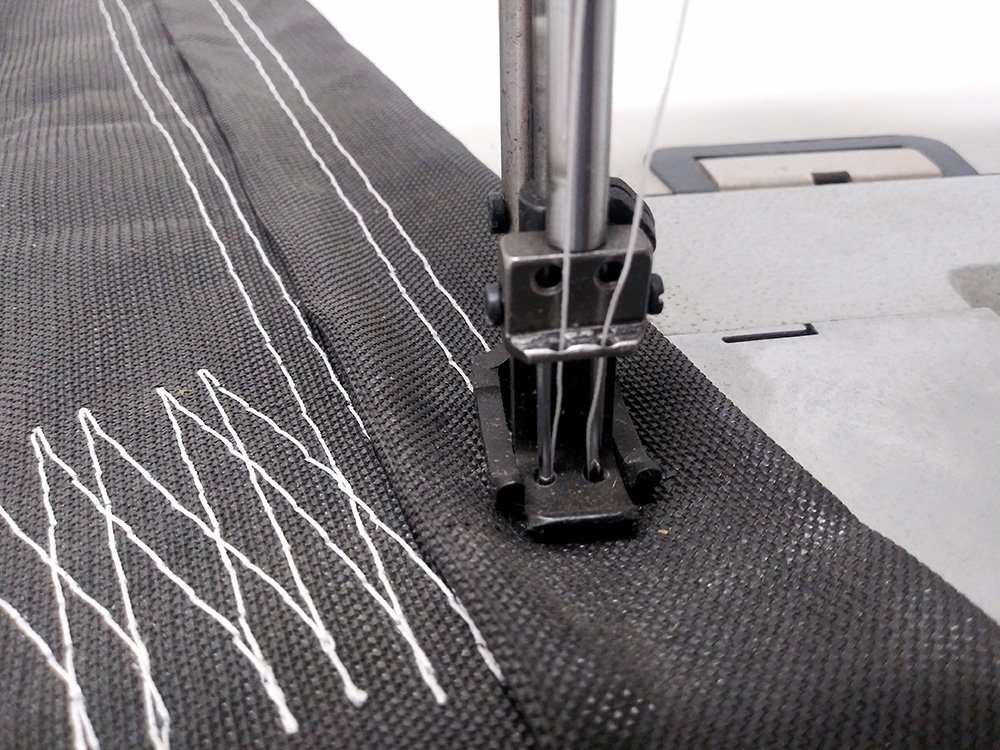

- Double Needle: Dual-needle capability for versatile stitching
- Long Arm with 18” Working Space: Ideal for large or bulky materials
- 6” Vertical Working Space: Accommodates thick or layered fabrics
- Large Vertical Axis Automatically Oiled Hooks: Ensures smooth operation
- 1/4″ Needle Gauge – other gauge sizes available
- Oil Pump System with Adjustable Oil Flow: Customizable lubrication
- Upper Oil Glass Sight: Easy monitoring of oil levels
- Barrel-type, Locking Stitch Regulator: Precise stitch length control
- Reverse: Enhances stitching versatility
- Large Top-Loaded Bobbins: Convenient bobbin access
- Safety Clutch: Protects the machine from overload

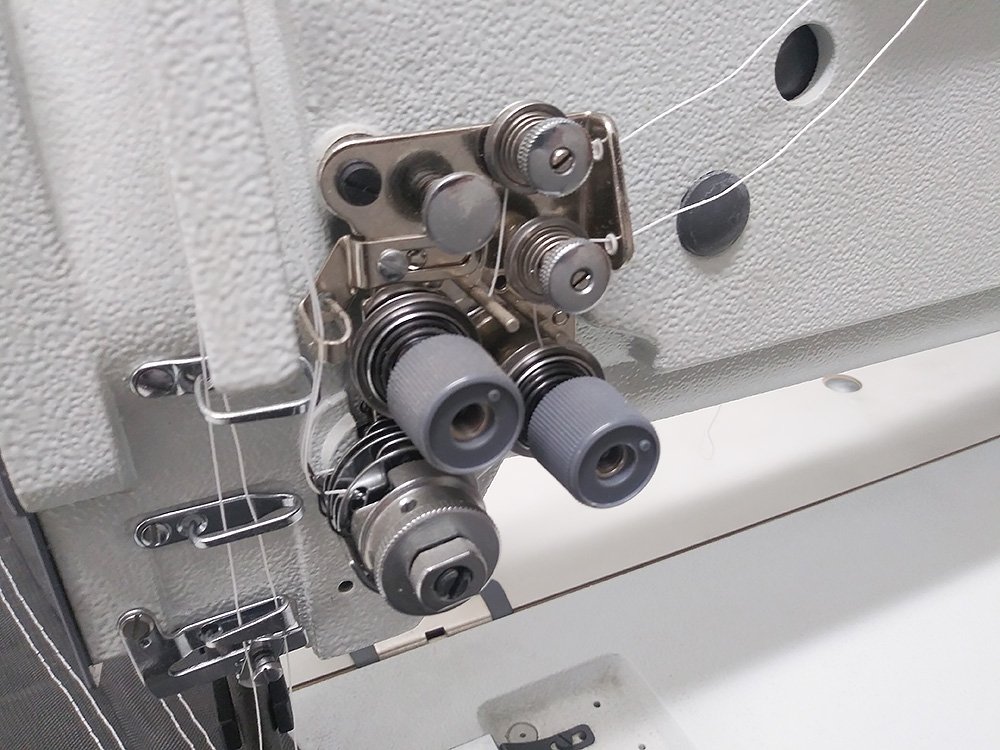

- Quick Tension Release: Simplifies thread tension adjustments
- Locking Slide Plate: Easy access to the bobbin area
- Adjustable Take-Up Thread Guide: Ensures proper thread loop timing
- Speed, Max. (S.P.M.): 1800 (Speed depends on thread, material, and operation)
- Presser Foot Lift: By Hand – 5/16″ (8 mm) / By Knee – 33/64″ (13 mm)
- Needle Bar Stroke: 1-27/64″ (36 mm)
- Stitch Length, Max: 2.8 s.p.i. (9 mm)
- Work Space: 18″ x 4-1/4″ (457 x 110 mm)
- Working Height Under Arm: 6” (152 mm) maximum
- Needles: 135 x 17 (x 2)
- Pre-wound Bobbin: U or S
- Number of Needles: 2 (Double)
- Feeding Mechanism: Walking Foot
- Workspace: Long Arm
- Standard or Full Function: Standard Functions
- Stitch Type: 301
