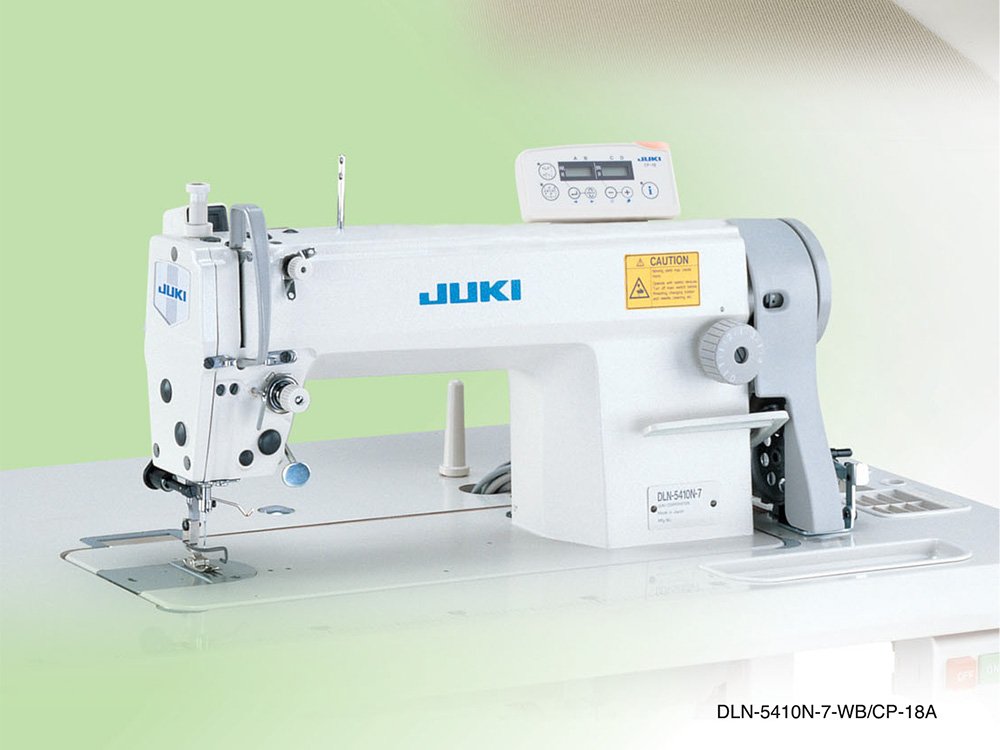

JUKI DLN-5410N-7 Full Automatic Needle Feed Sewing Machine with Thread Trimmer, Foot Lift and Back Tacks
The JUKI DLN-5410N-7 is the full automatic needle feed machine ideal for sewing light to medium weight materials – especially multilayered plies of fabric. The needle feed mechanism gives you the optimum stitch control and smooth feeding relying on elliptical needle movement as it penetrates and exits the stitch cycle.
This model is the automatic version machine and is priced complete and fully assembled:
The DLN-5410N-7 machine features all available options below and will be delivered with:
- JUKI DLN-5140N-7 machine head
- Auto Thread Trimmer
- Auto Foot Lift
- Auto Back Tacking
- CP-18A (optional CP-180A) Top-Mounted Control Panel
- 48″ x 22″ Made in USA table Top
- JUKI SC-920- Control Box with the 110 Volt JUKI SERVO motor
- K-Legs Stand
- Thread Stand
- Bobbin Winder
- JUKI supplied tools and accessories
- LED Light
- Ready to sew upon delivery
This is a MADE IN JAPAN machine with superior refinement of components and assembly process.

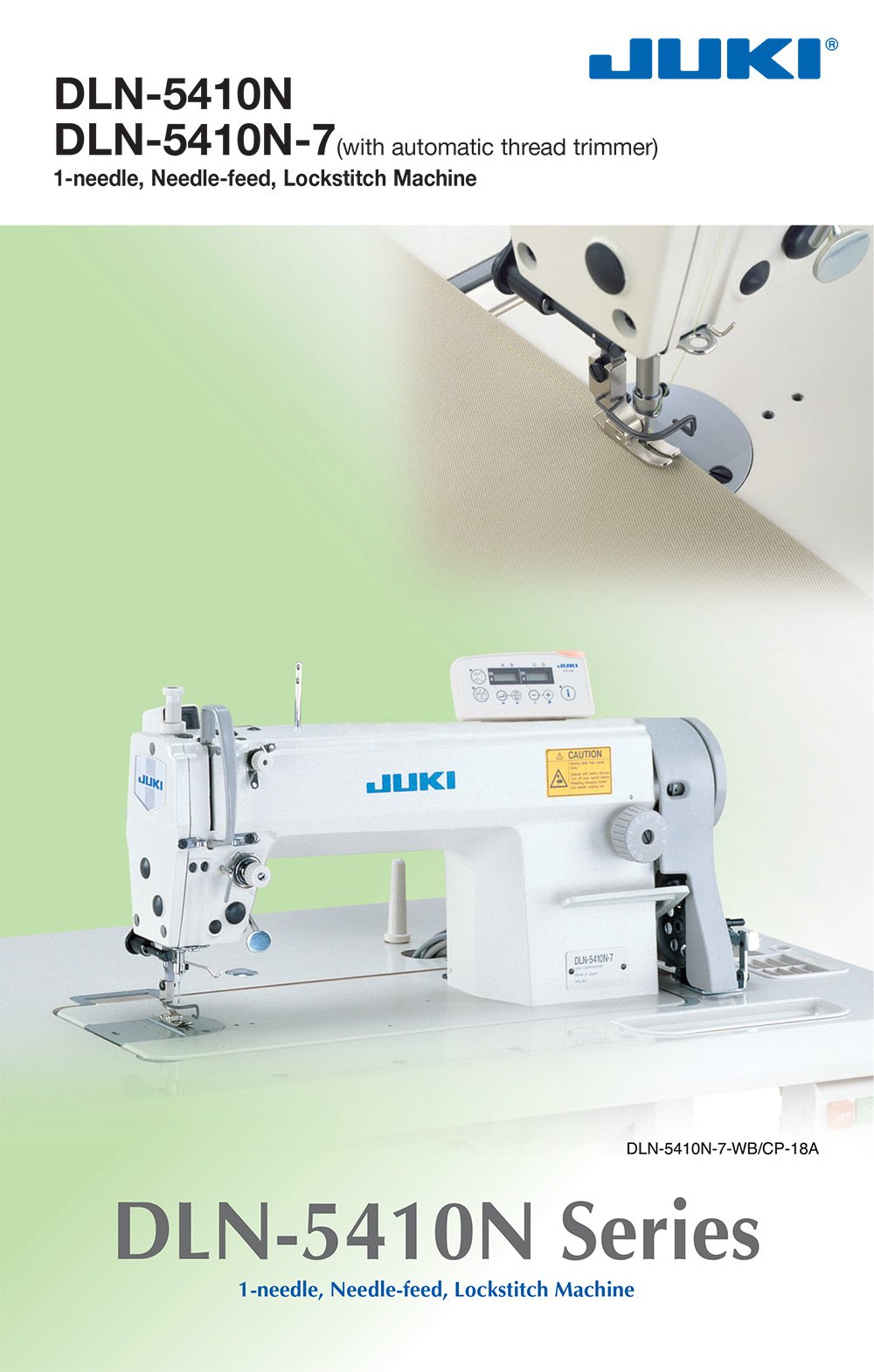

1-needle, Needle-feed, Lockstitch Machine
DLN-5410N-7

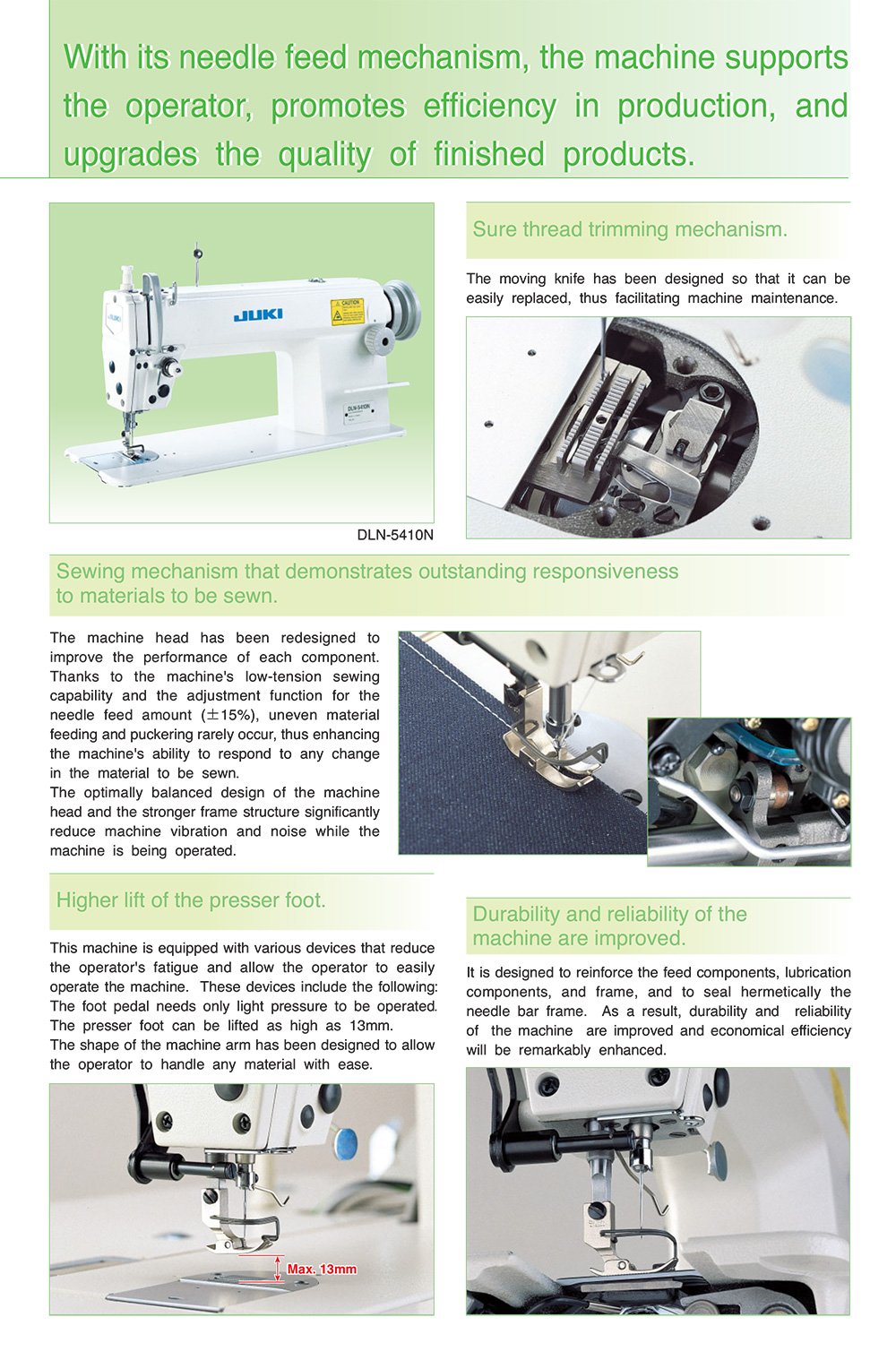

With its needle feed mechanism, the machine supports the operator, promotes efficiency in production, and upgrades the quality of finished products
Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn.
The machine head has been redesigned to improve the performance of each component. Thanks to the machine’s low-tension sewing capability and the adjustment function for the needle feed amount (±15%), uneven material feeding and puckering rarely occur, thus enhancing the machine’s ability to respond to any change in the material to be sewn. The optimally balanced design of the machine head and the stronger frame structure significantly reduce machine vibration and noise while the machine is being operated.
Sure thread trimming mechanism DLN-5410N-7 (with automatic thread trimmer)
The moving knife has been designed so that it can be easily replaced, thus facilitating machine maintenance.
Durability and reliability of the machine are improved.
It is designed to reinforce the feed components, lubrication components, and frame, and to seal hermetically the needle bar frame. As a result, the durability and reliability of the machine are improved and economical efficiency will be remarkably enhanced.

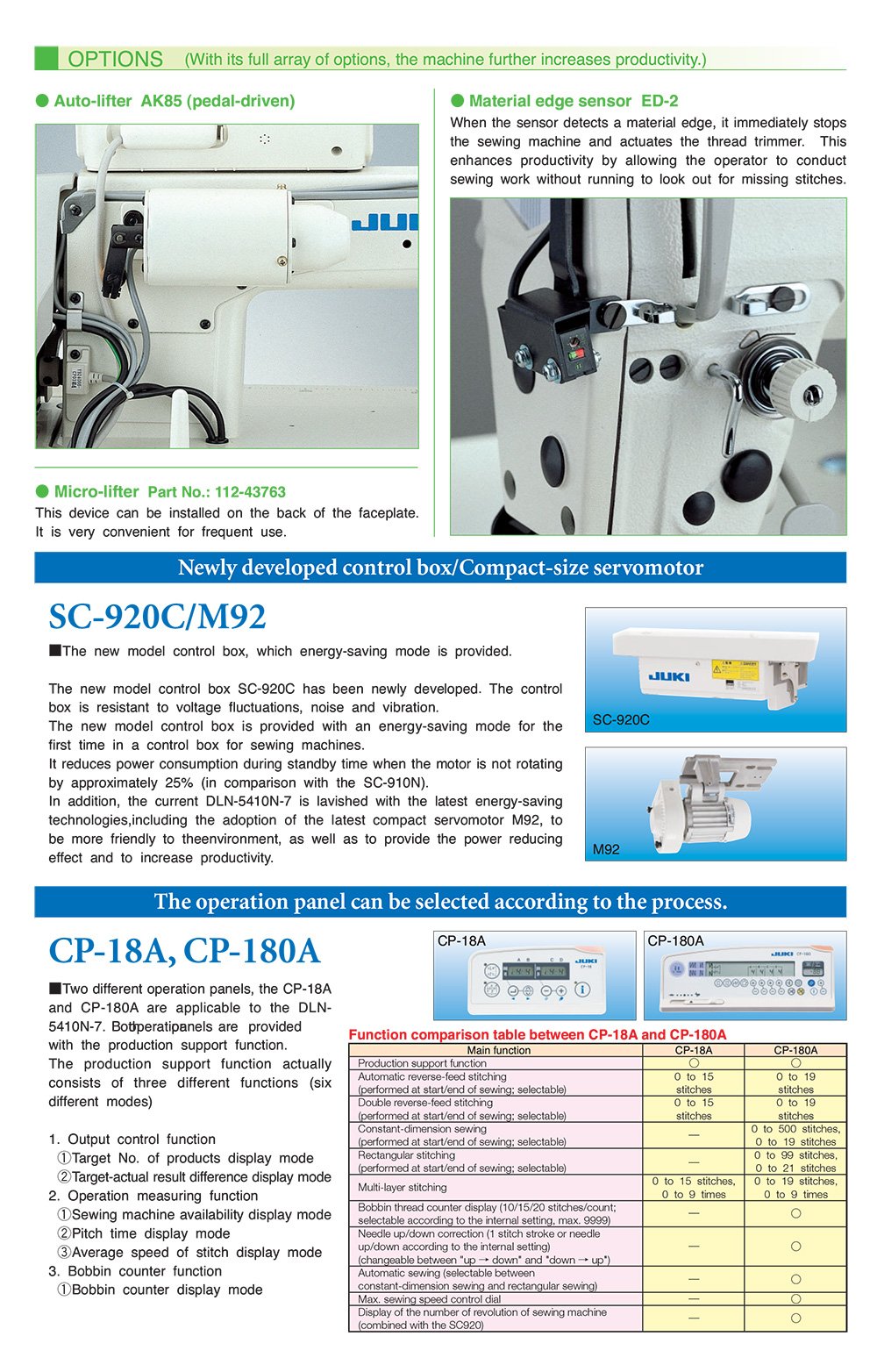

The new model control box, which energy-saving mode is provided (SC-920C/M92).
The new model control box SC-920C has been newly developed. The control box is resistant to voltage fluctuations, noise and vibration. The new model control box is provided with an energy-saving mode for the first time in a control box for sewing machines. It reduces power consumption during standby time when the motor is not rotating by approximately 25 % (in comparison with the SC-910N). In addition, the current DLN-5410N-7 is lavished with the latest energy-saving technologies, including the adoption of the latest compact servomotor M92, to be more friendly to the environment, as well as to provide the power reducing effect and to increase productivity.
The operation panel can be selected according to the process (CP-18A, CP-180A).
Two different operation panels, the CP-18A and CP-180A are applicable to the DLN- 5410N-7. Both operation panels are provided with the production support function. The production support function actually consists of three different functions (six different modes).

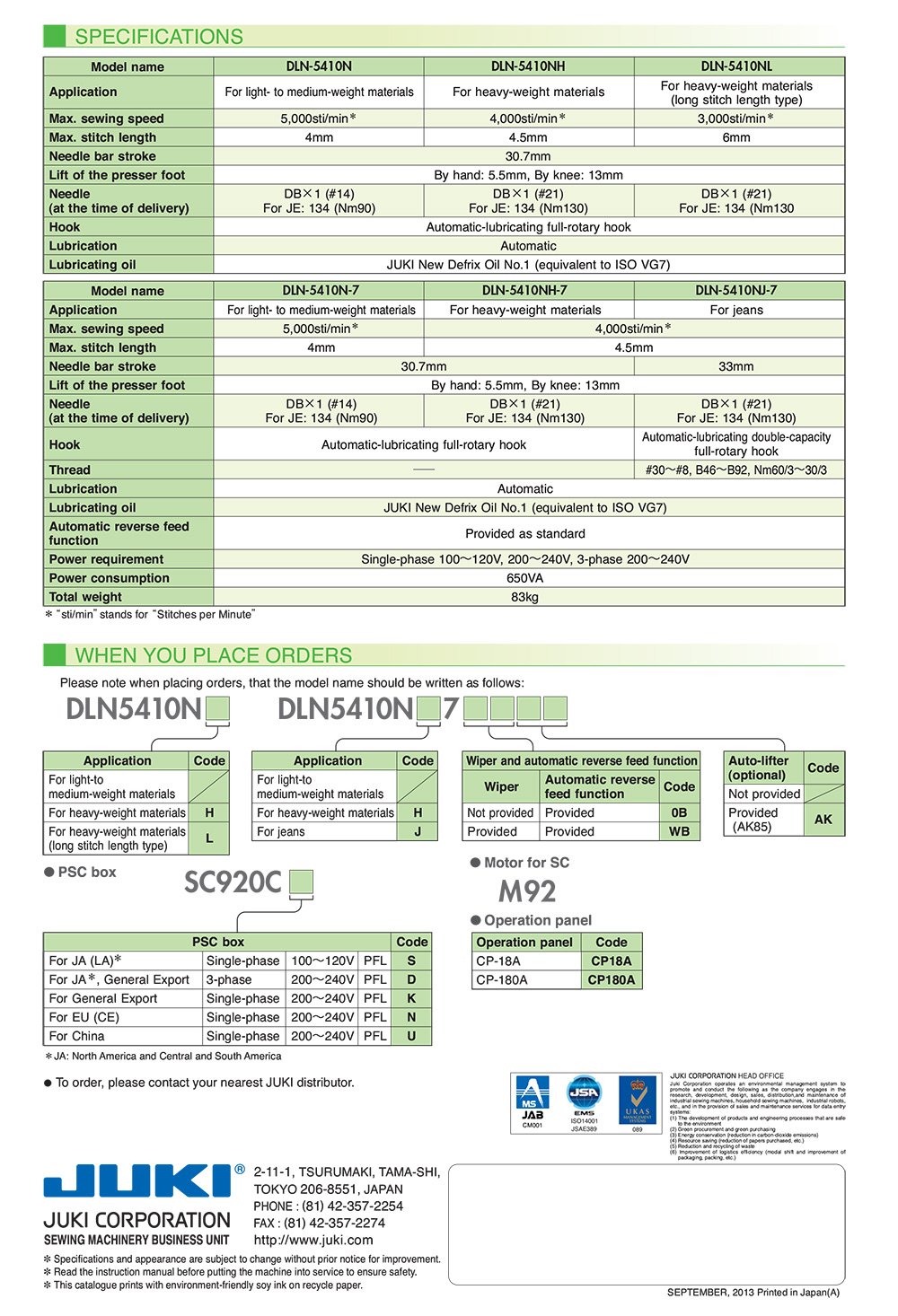

| Model | DLN-5410N-7‚ 5410N | DLN-5410NH-7‚ 5410NH | ||
|---|---|---|---|---|
| Application | Light- to medium-weight | Medium- to heavy-weight | ||
| Max. sewing speed | 5‚000sti/min | 4‚000sti/min | ||
| Max. stitch length | 4mm | 4.5mm | ||
| Presser foot | By knee: 13mm | |||
| Needle | DB×1 (#14)‚ 134 (Nm90) | DB×1 (#21)‚ 134 (Nm130) | ||
