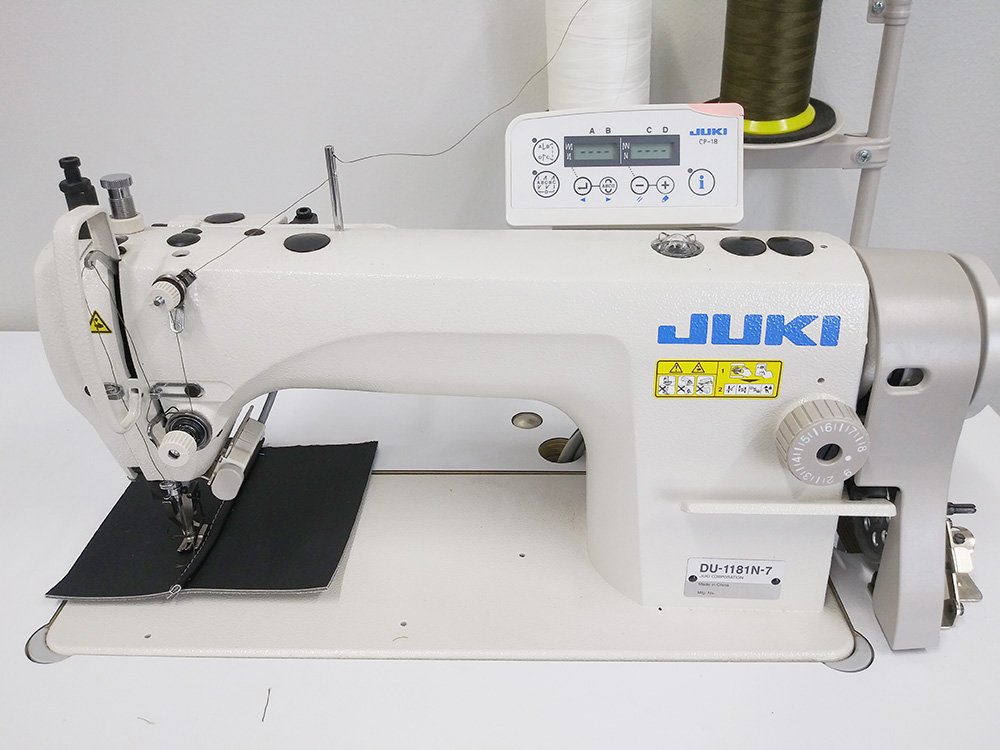

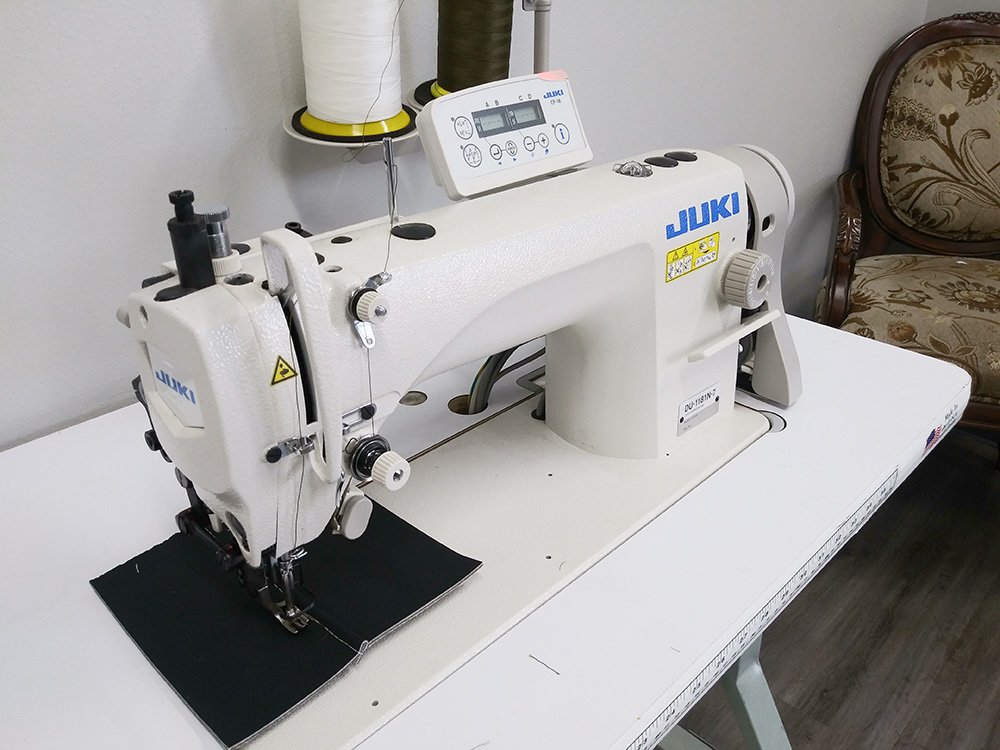

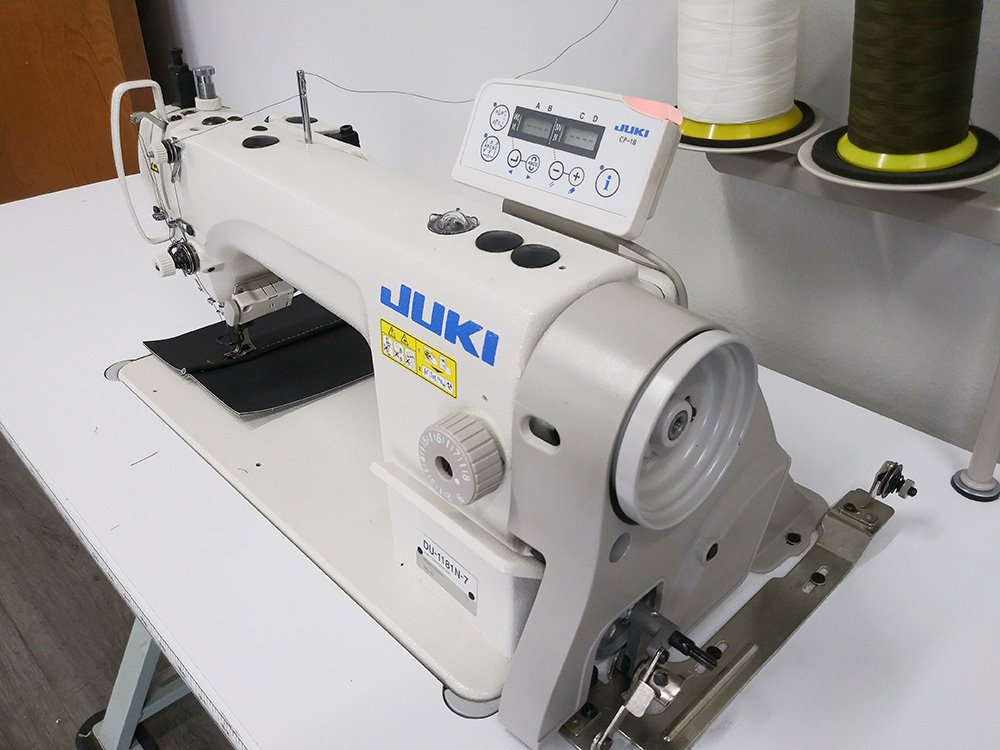

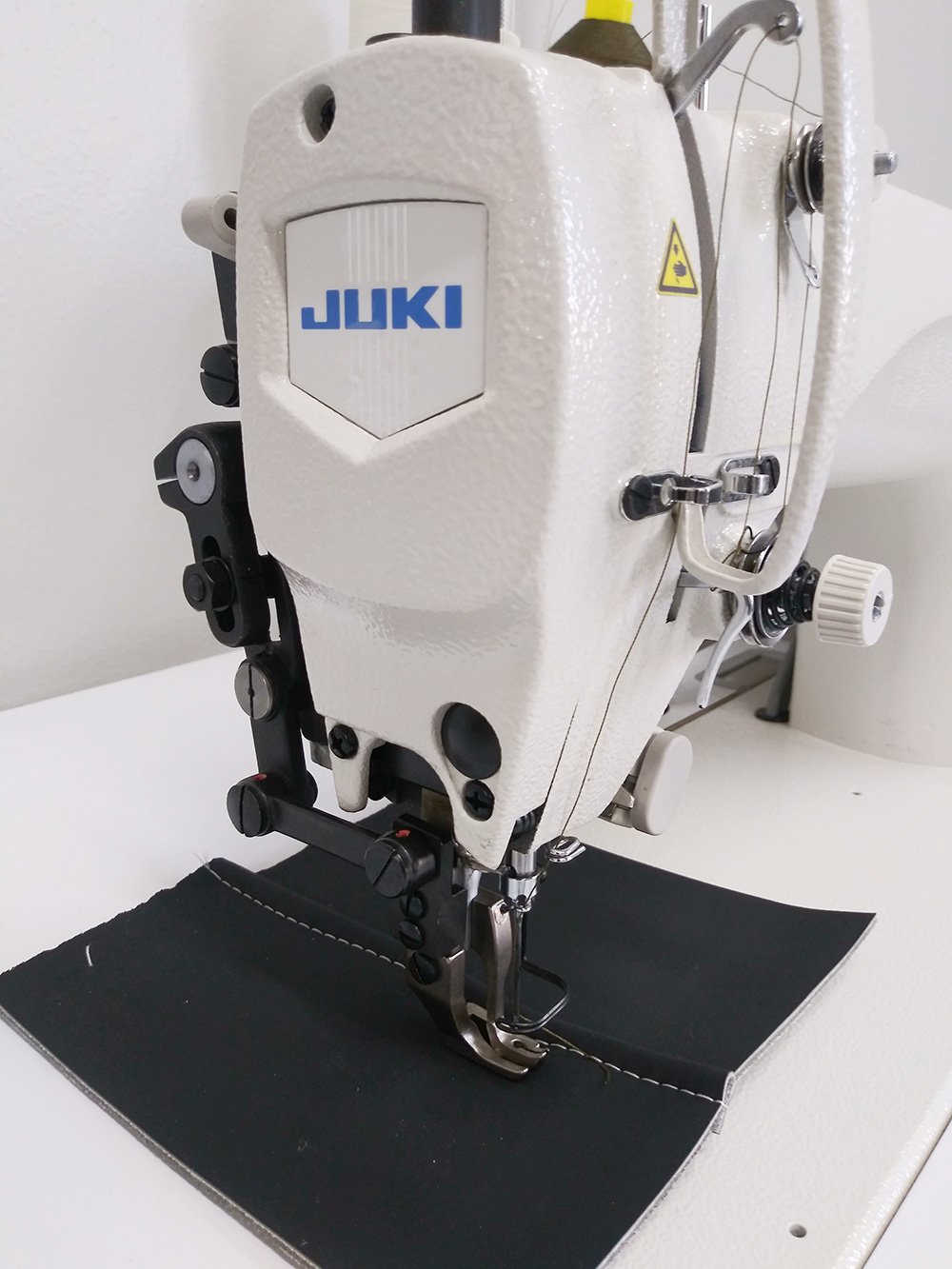

JUKI DU-1181N-7 Automatic Walking Foot Top and Bottom Sewing Machine with Auto Trimmer and Back Tacks
Machine Make: JUKI

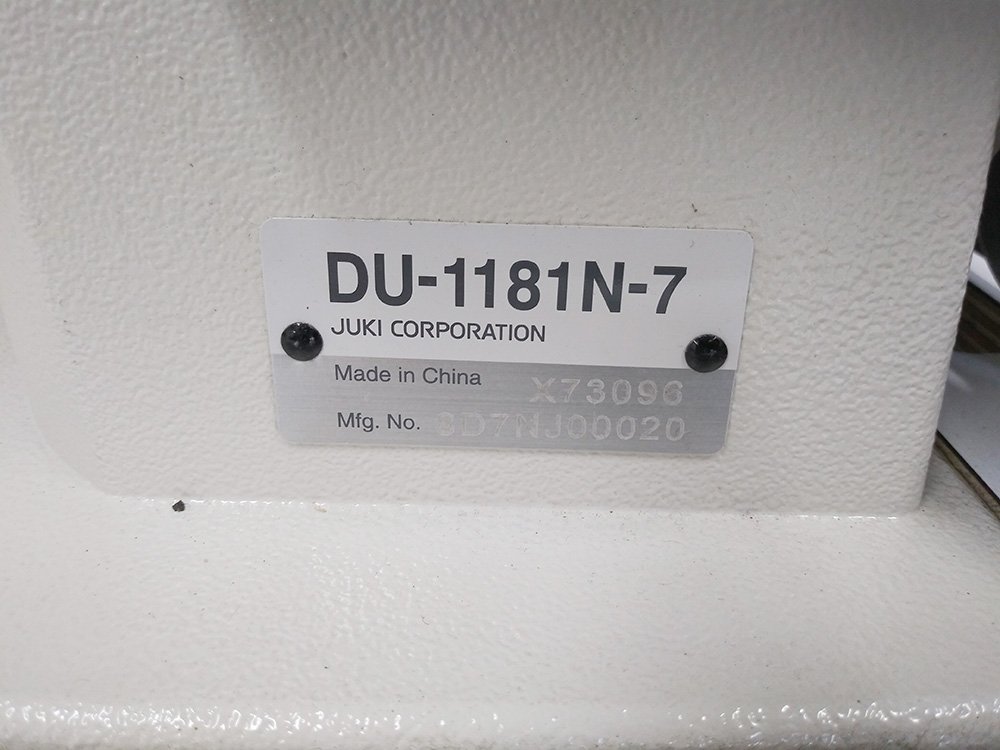

Machine Model: DU-1181N7/X73096
Machine Type: 1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook, with under trimmer, manual foot lift

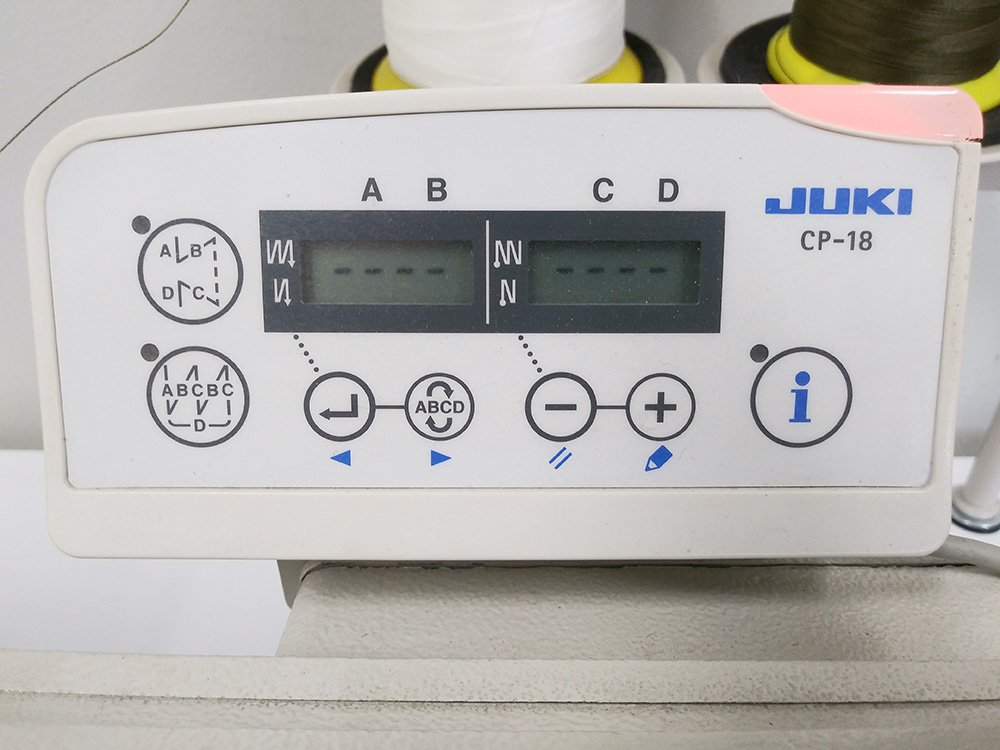

Control Panel Model: CP-18C
Control Box Model: SC-921C

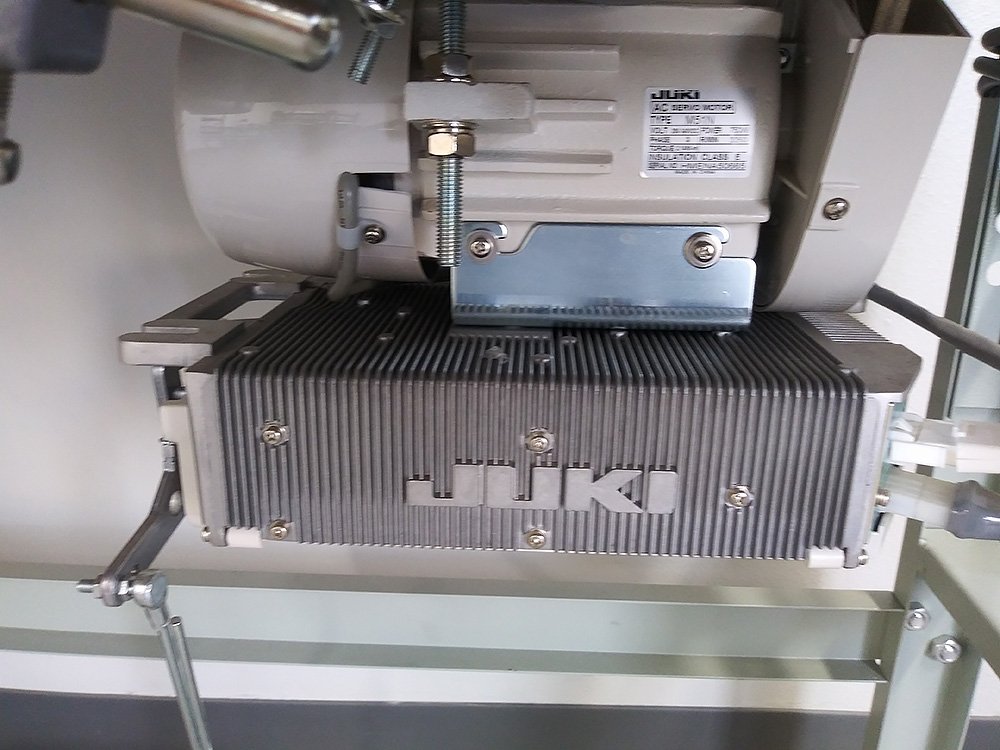

Motor Type/Model: Juki Servo/M51N
Voltage: 110
Phase: 1
Watts: 550
Stand/Legs Type: K
Table Type: Standard CSM
Thread Stand: Included
110v Mini Magnetic LED Light: Included
Description:

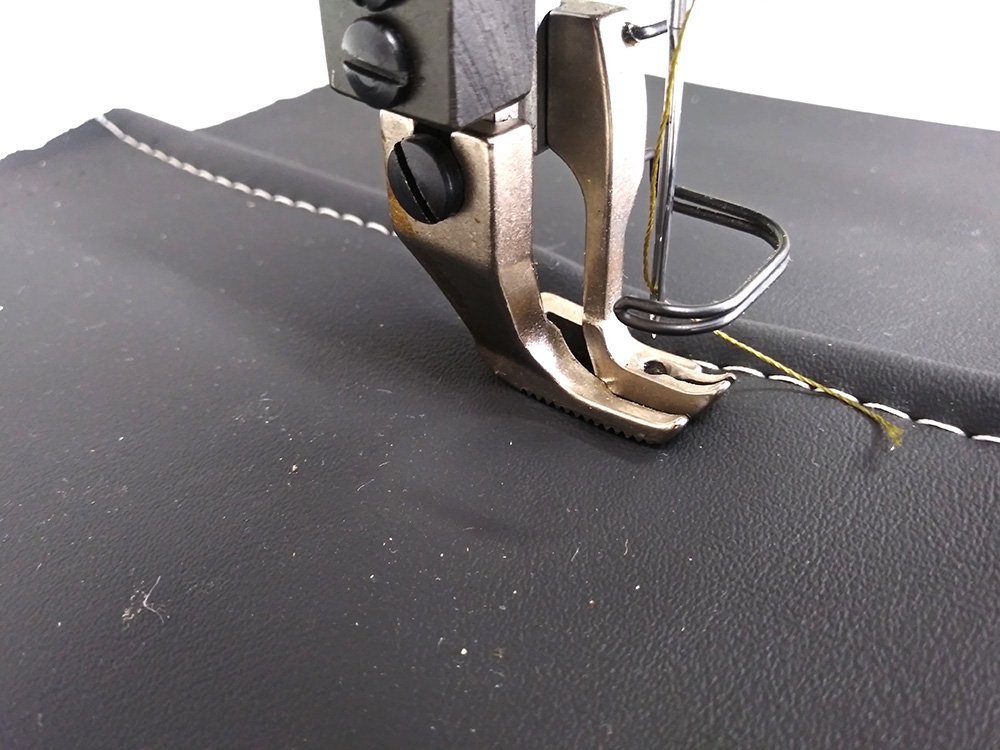

With its strong top and bottom feed mechanism, the machine insures the smooth feeding of hard-to-feed materials or multilayered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches. The automatic lubricating mechanism dramatically improves maintainability of the machine.
Features:
-
Automatic lubricating mechanism
A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.
The top feed mechanism employs a grease tank and oil wick lubrication mechanism.
-
The machine achieves low-vibration and low-noise
The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environmen
-
Higher lift of the presser foot
The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching.
-
The maximum stitch length is 9 mm
With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes.
-
The double-capacity hook is provided as standard
The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.
Specs:
| Model name | JUKI DU-1181N7/X73096 |
|---|---|
| Max. sewing speed: | 2,000sti/min |
| Max. stitch length: | 9mm |
| Presser foot Lift: | Max By knee: 15mm |
| Alternating vertical movement: |
2～5mm |
| Needle: | DP×17 (#21), #14~#23 |
| Thread: | Tex 45 – Tex 207 |
