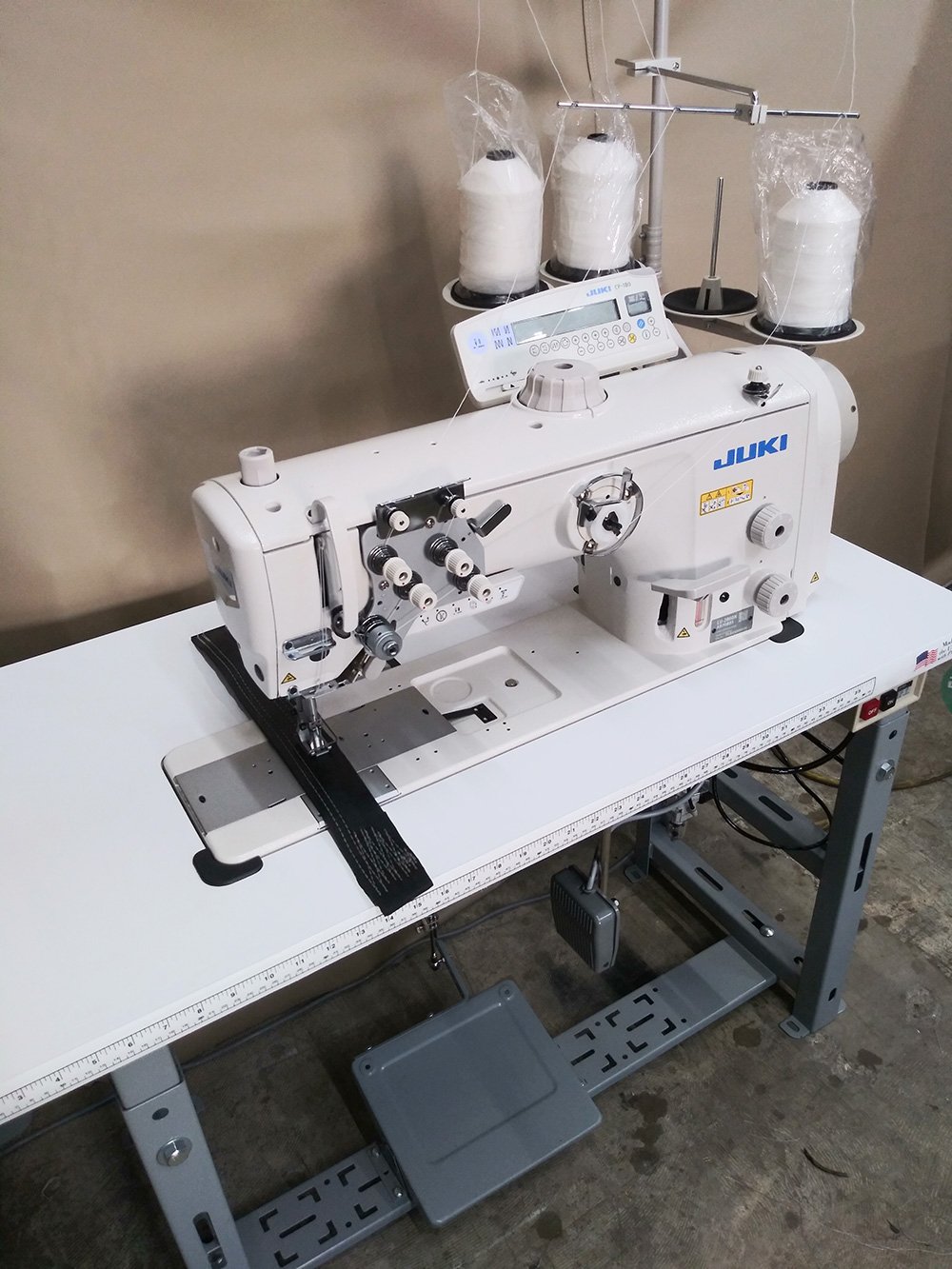

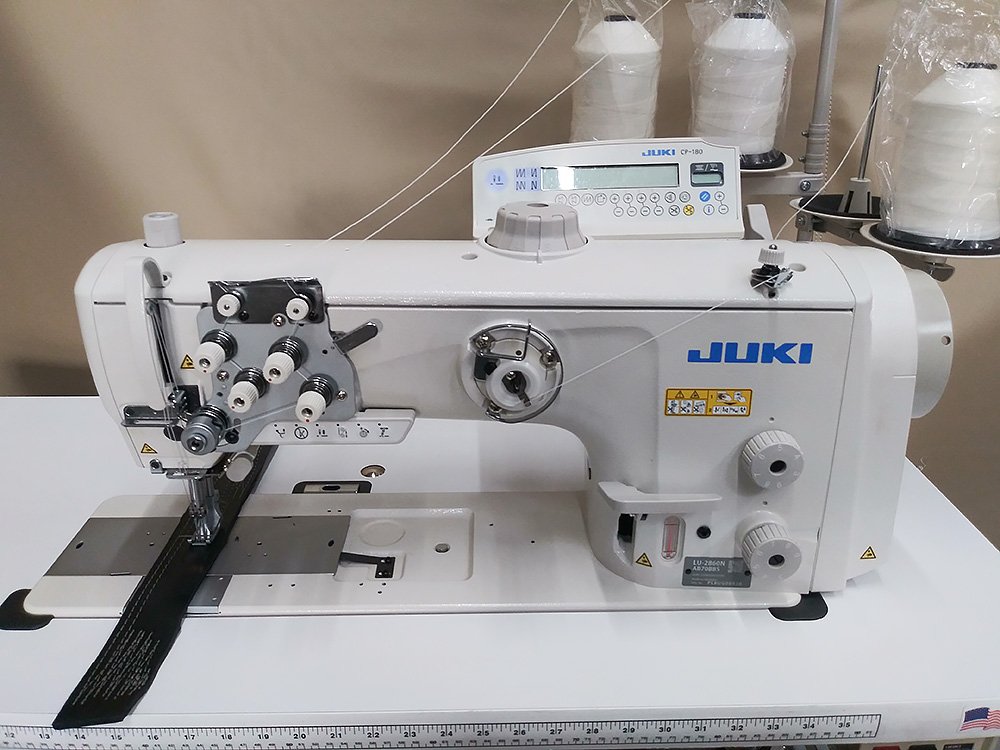

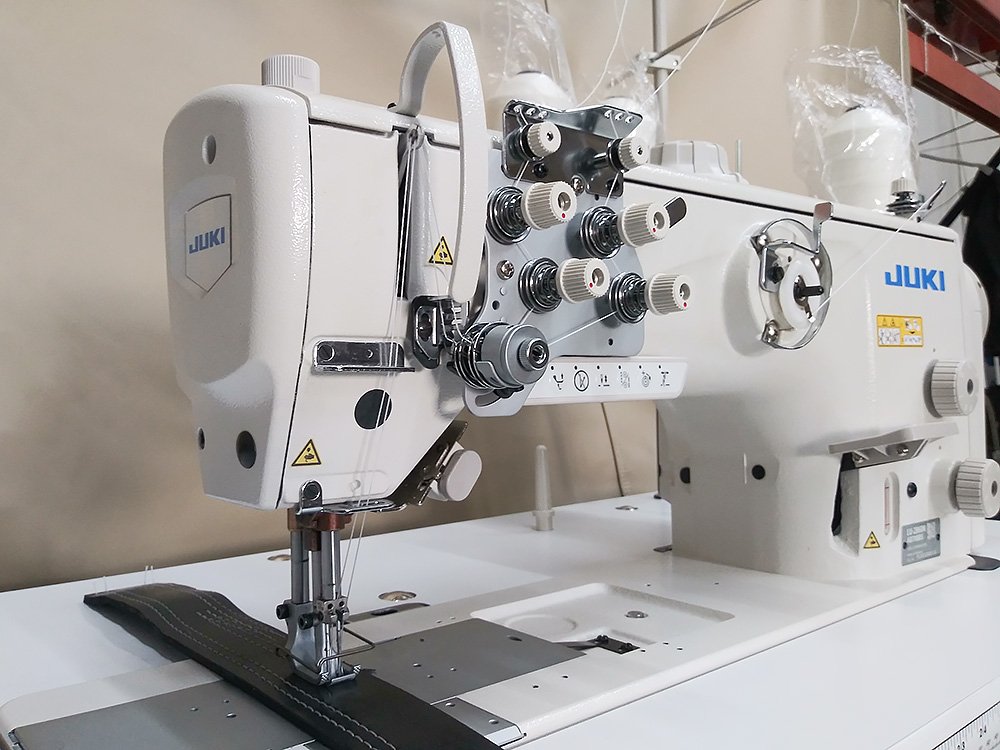

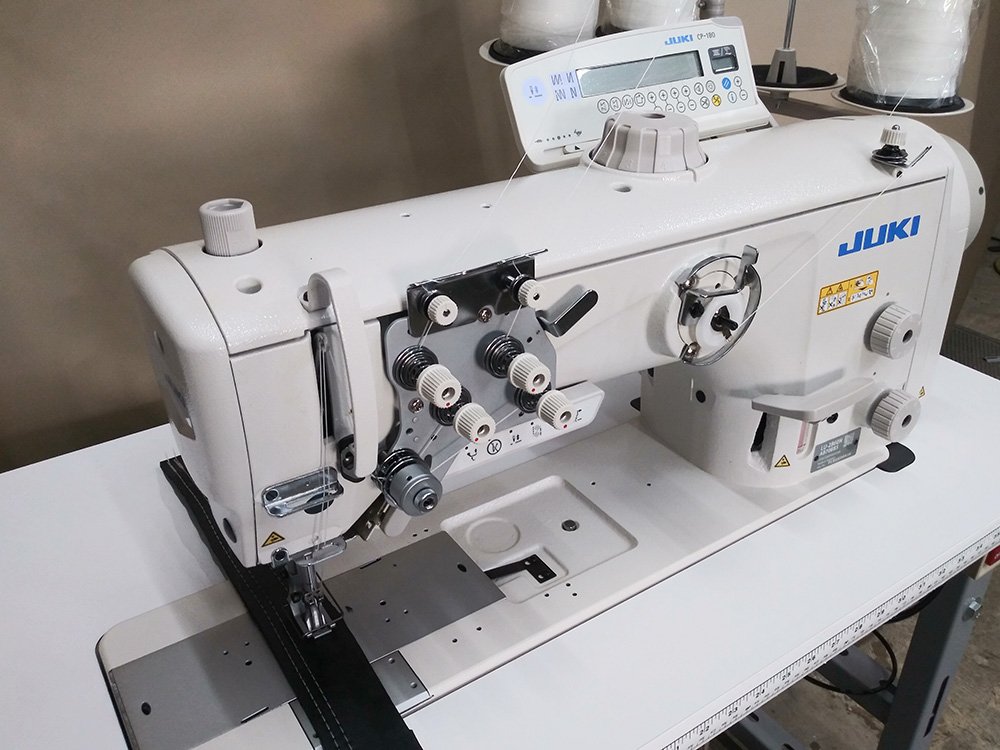

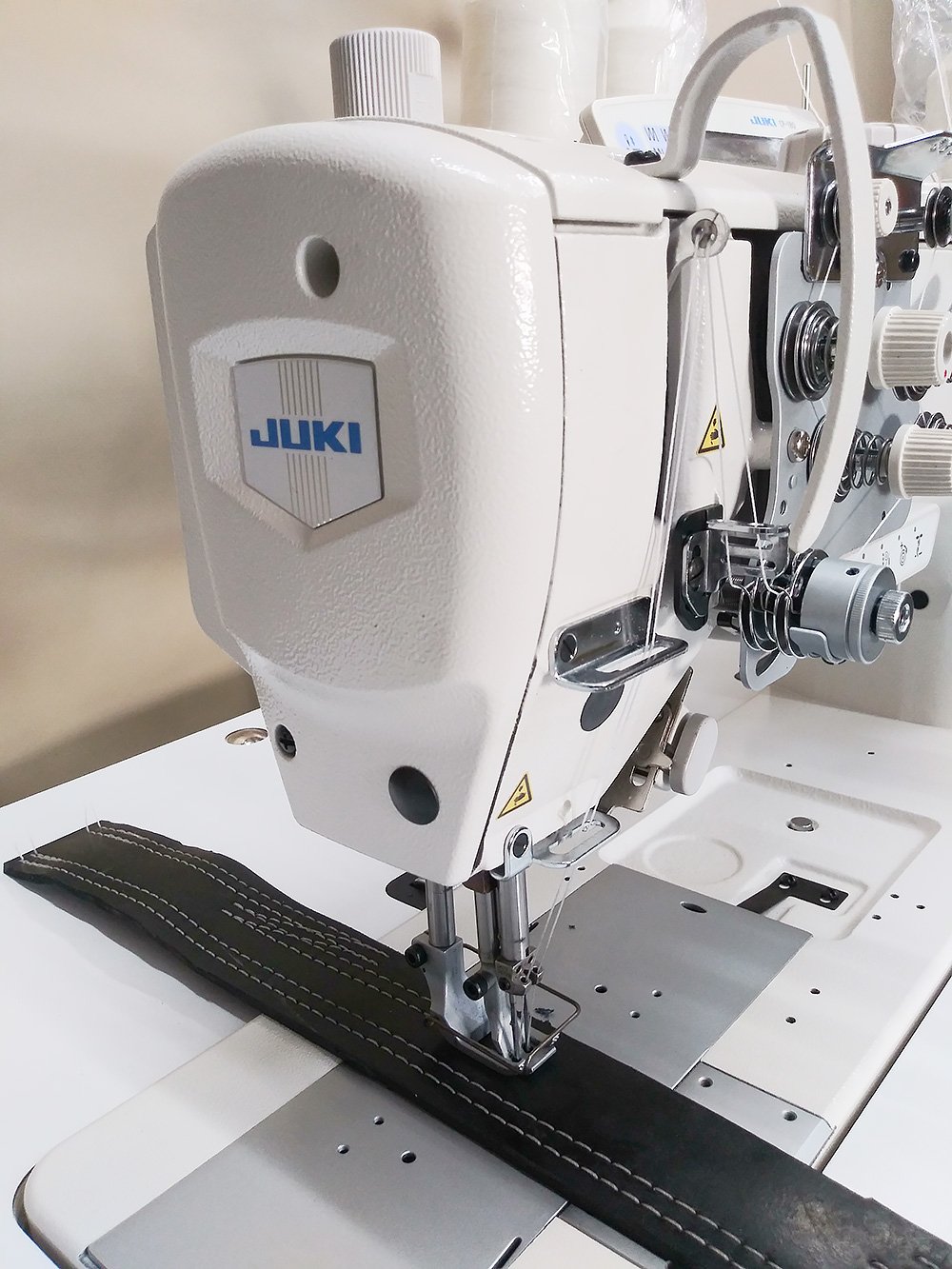

JUKI LU-2860N-7 Double Needle Automatic Walking Foot Sewing Machine with Vertical Axis Hook and 2.0 Capacity Bobbin, CP-180 Control Panel, Fully Assembled
The Juki LU-2860-7 is a FULL AUTOMATIC unison-feed, compound-feed, walking foot lockstitch sewing machine with a vertical-axis large hooks which is provided with substantially improved functions and performance.

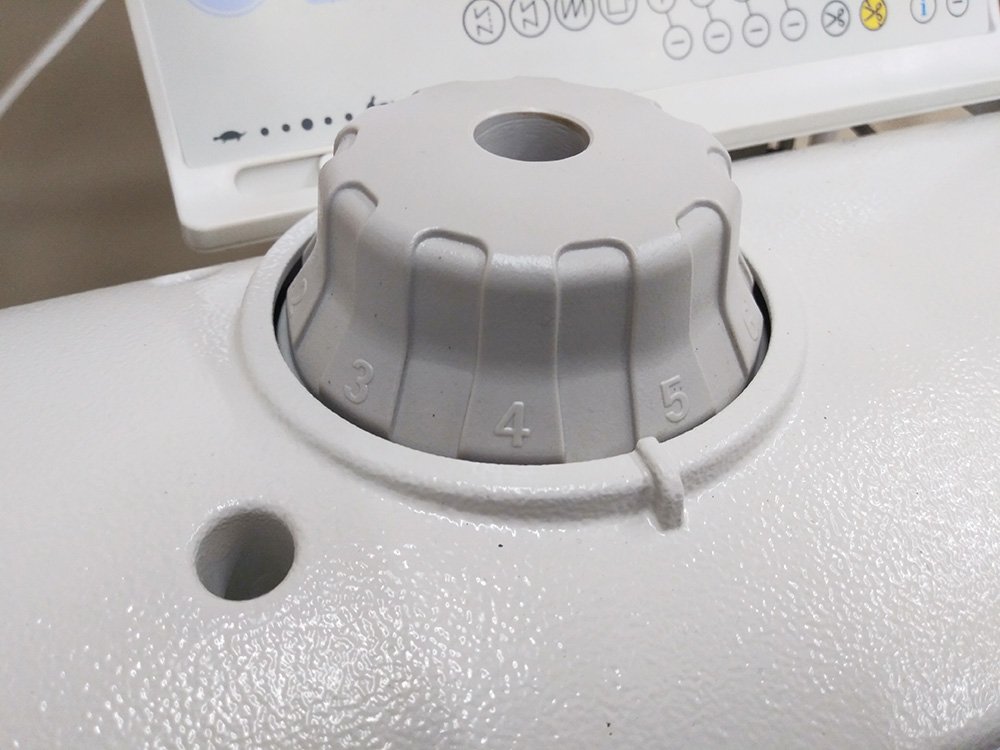

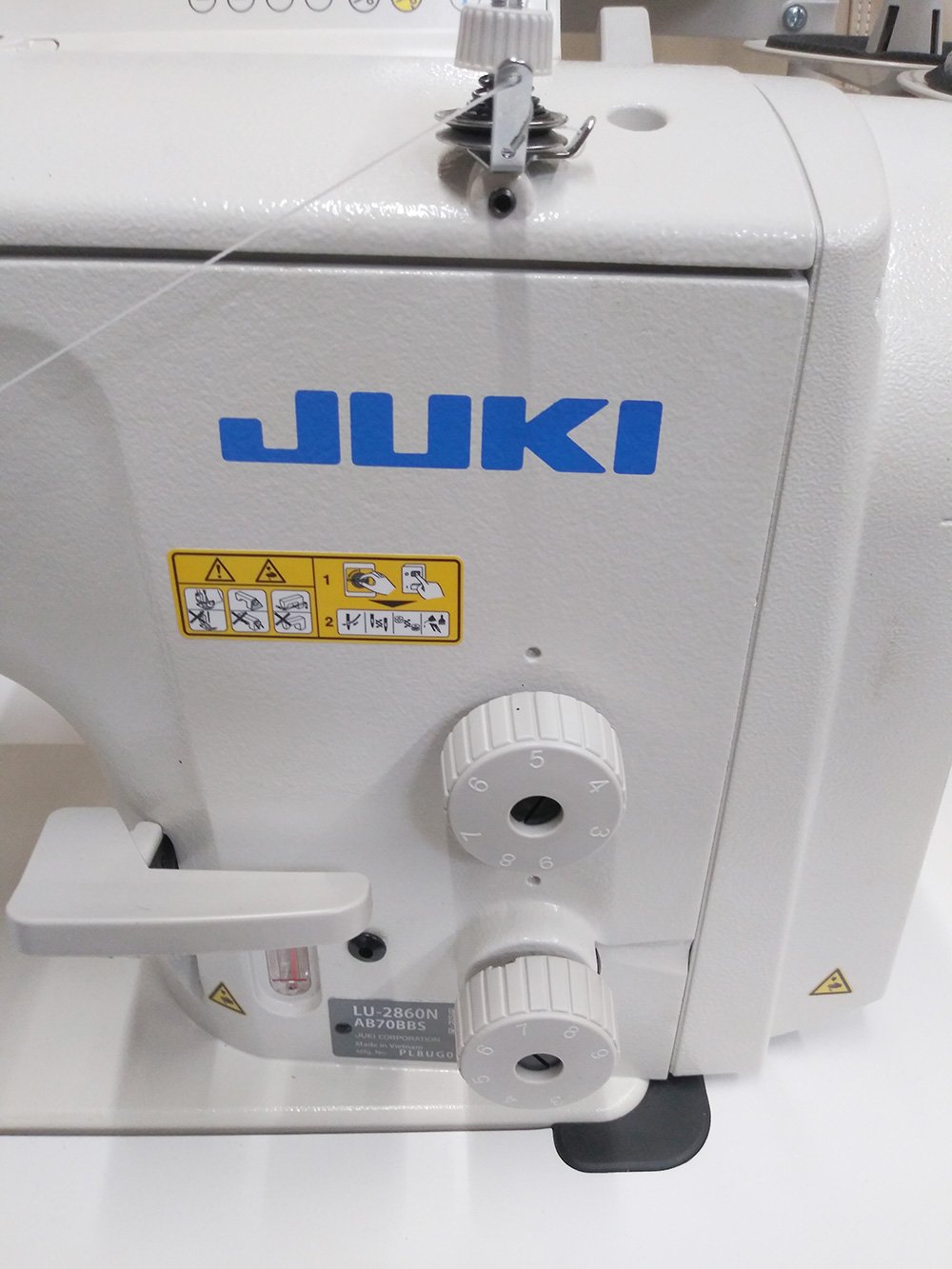

The sewing machine has adopted a feed mechanism that keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the sewing machine.
A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and eccentricity of the feed driving cam is adjustable.
Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best suited to the material and thread used. It is no longer necessary to prepare other subclass model sewing machines.
The JUKI LU-2860-7 features:
-
Automatic Thread Trimmer
-
Automatic Foot Lift (Pneumatic / Air)
-
Automatic Back Tacks
-

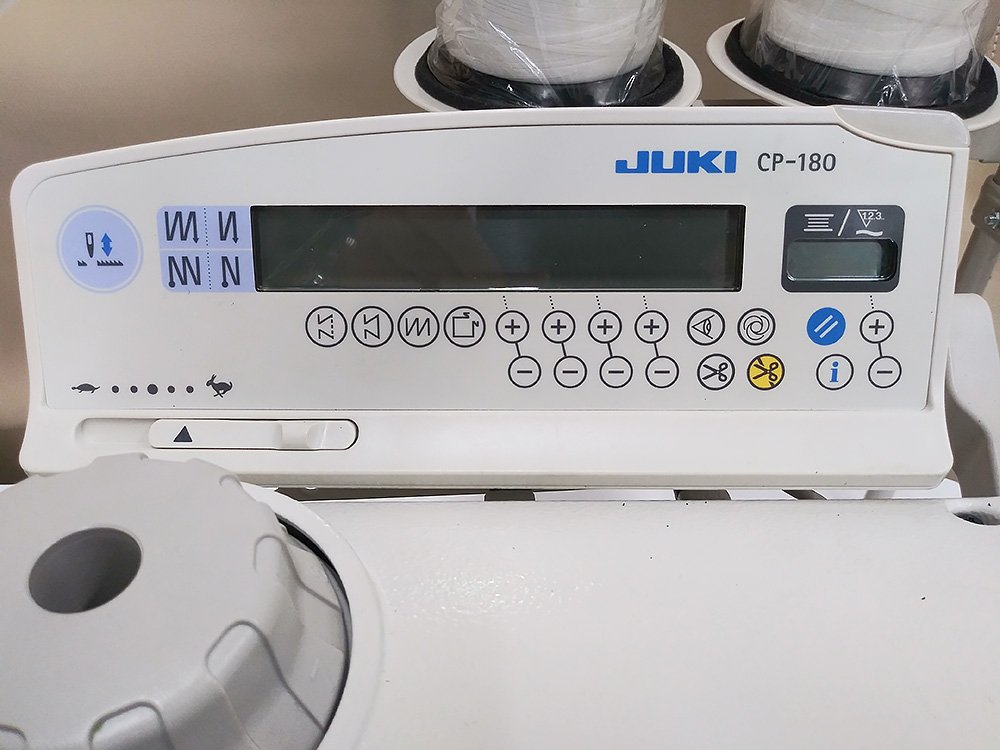

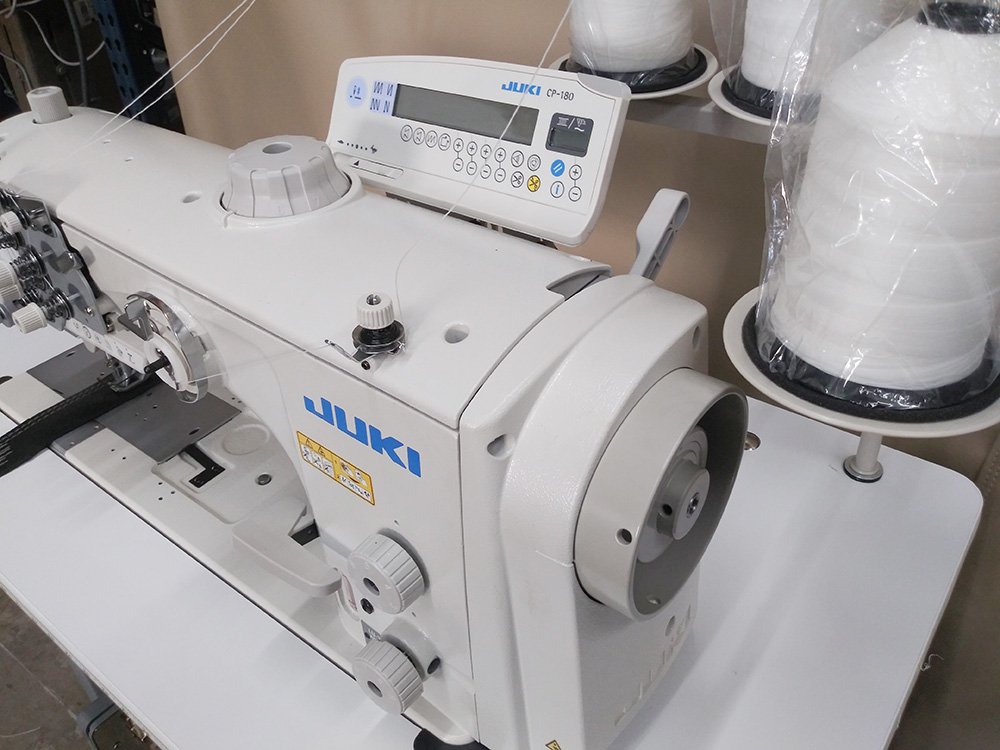

CP-18 Top-Mounted Control Panel (CP-180 full size panel available)
-
Genuine JUKI Control Box and Direct Drive Motor
-
Priced complete and fully assembled, ready to sew upon delivery
Ideal for sewing:
- Leather
- Vinyl
- Canvas
- Rubbers and Synthetic materials
- Other medium and heavy weight fabrics
The machine features:

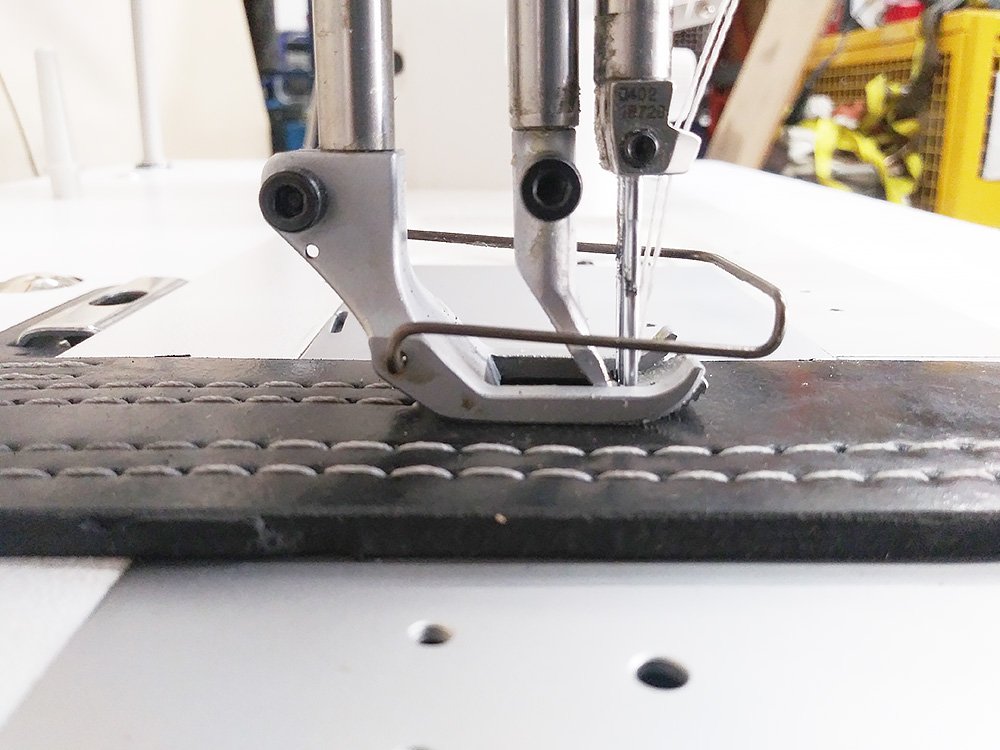

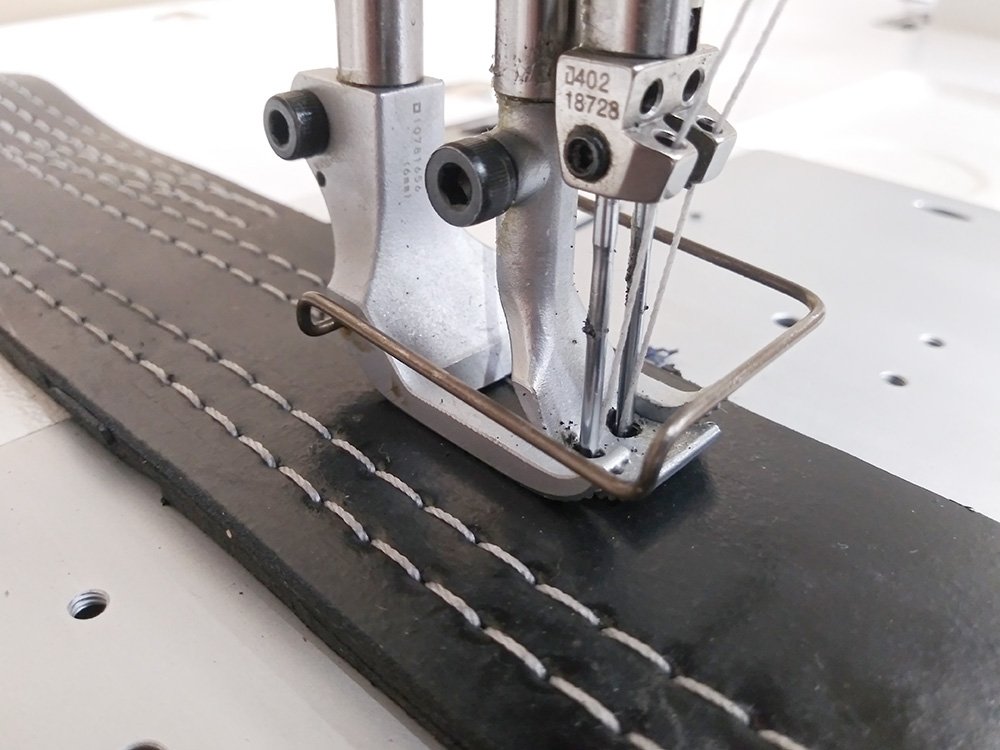

- Compound feed (triple feed) walking foot mechanism
- 1/4″ Needle Gauge as Standard (Contact us for different needle gauges)
- 9 mm max stitch length
- Reverse
- U size large hooks and bobbins (top load)
- 135 x 17 (DPx17) needle system, sizes 16 to 23
- Will sew thread sizes TEX 60, 70, 90, 135 and 210
- 20mm (approximately 3/4″) foot lift

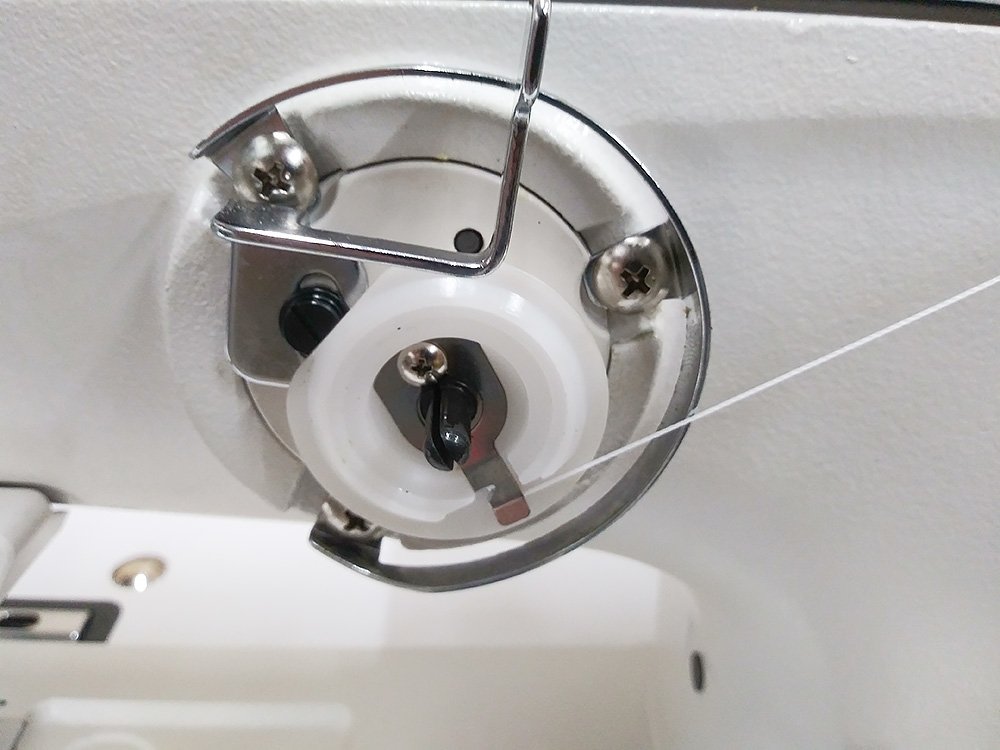

- Front mounted bobbin winder with auto stop lever
- Thread stand
- 110 Volt JUKI direct drive motor with speed control
- Priced and ships complete and fully assembled
- 1 Year limited warranty
- Normal Lead Time (inbound, set up and testing) – 2 to 3 Weeks
This machine will excel for customers sewing automotive and marine upholstery, Sunbrella awnings, indoor and outdoor furniture, tactical gear, synthetic rubber, and similar items.
