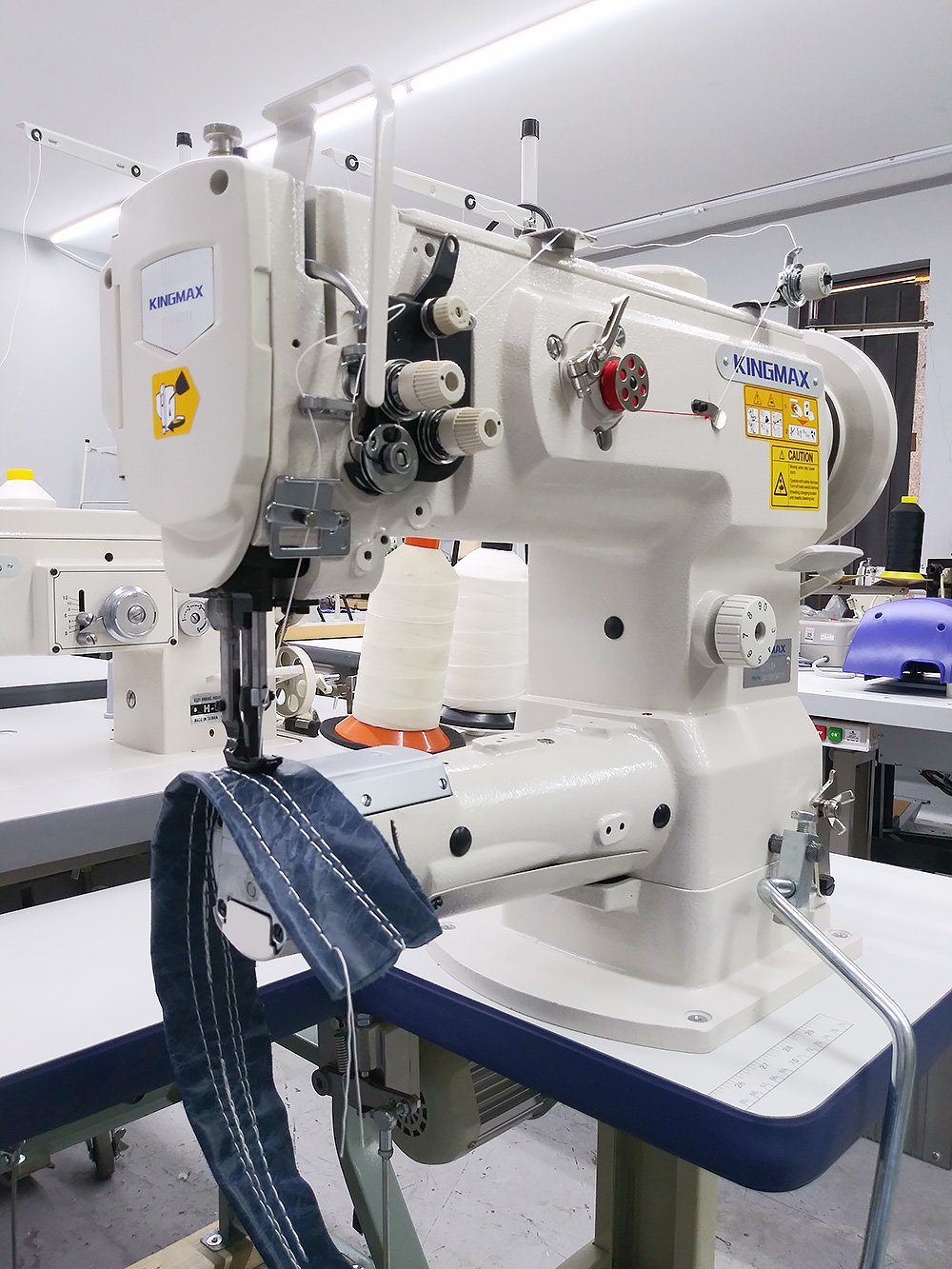

KINGMAX GC-1341BH Cylinder Arm Walking Foot Sewing Machine for Hand Bags and Upholstery, BIG Hook and Bobbin, Fully Assembled

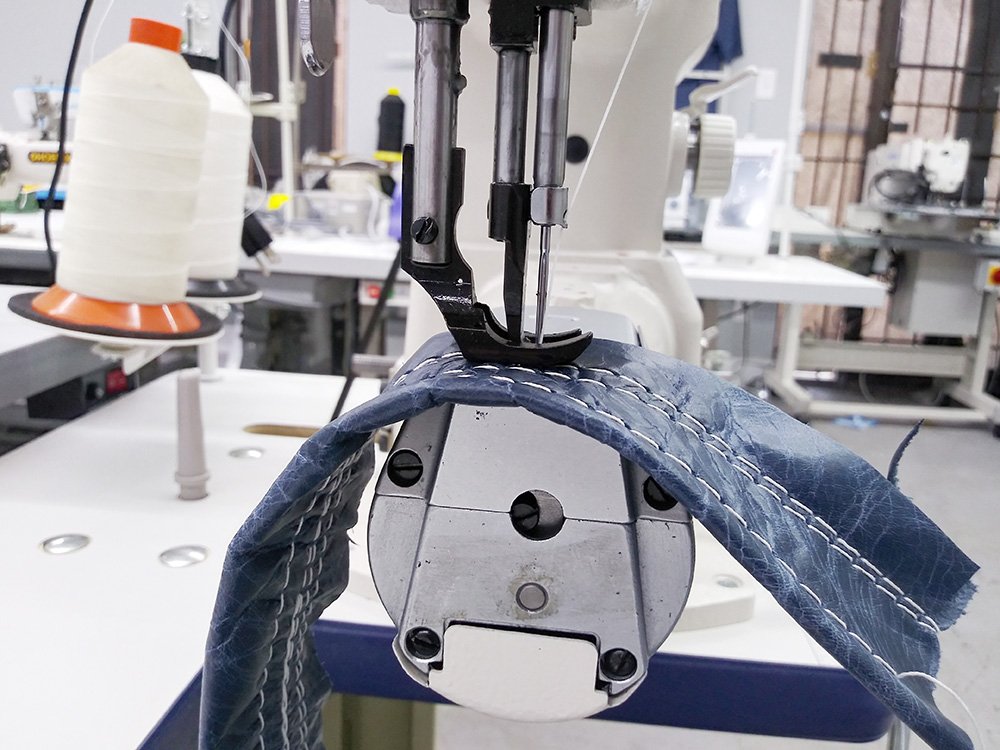

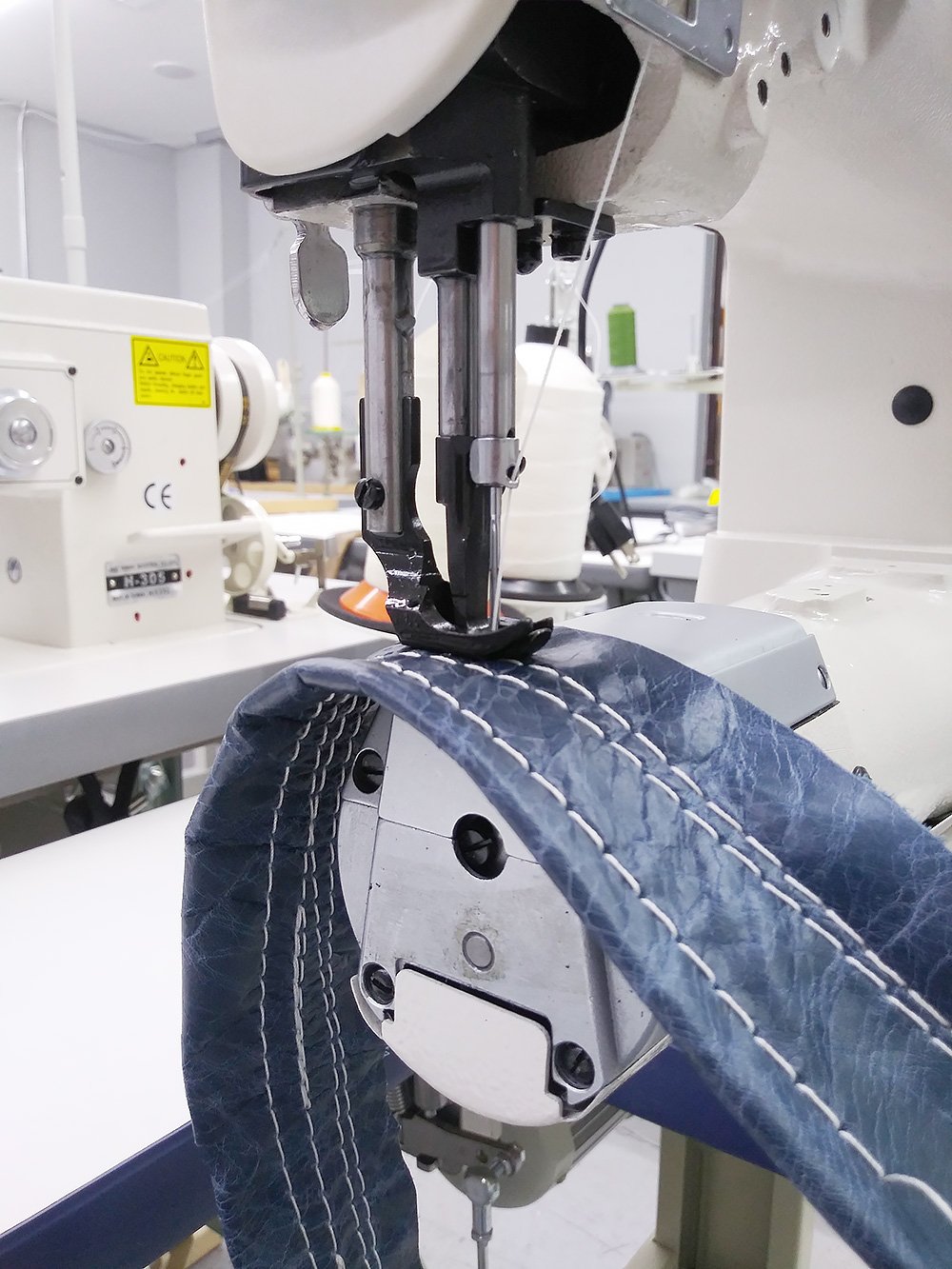

The KINGMAX GC-1341BH is a cylinder arm walking foot sewing machine ideal for sewing hand bags, purses, and many items that require stitching on cylindrical or oddly shaped curves.

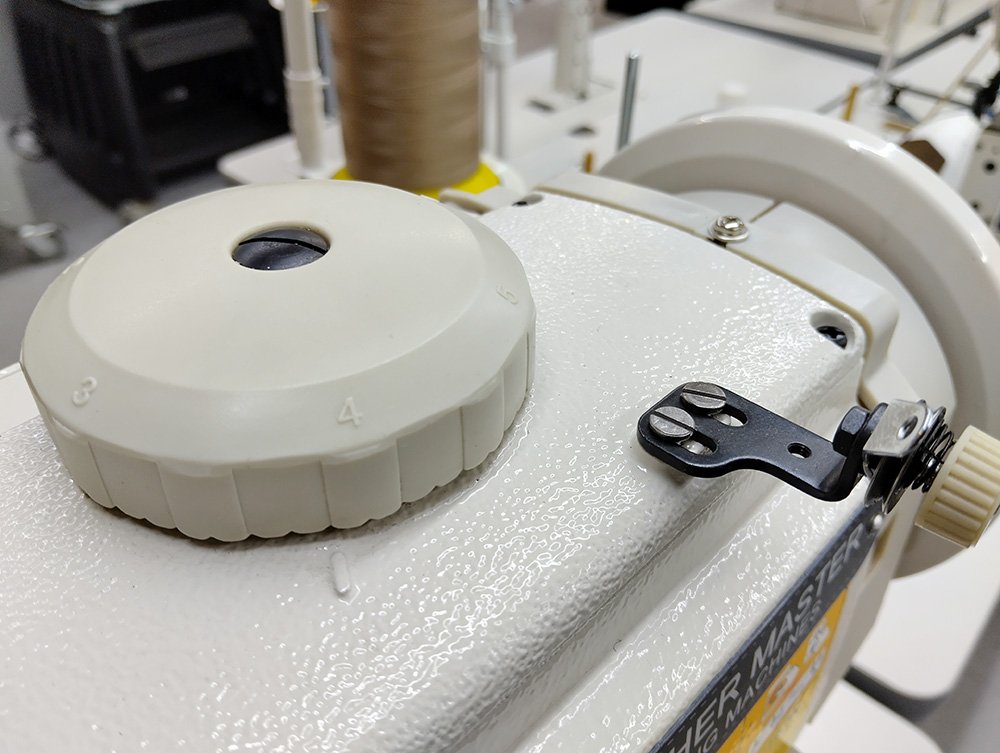

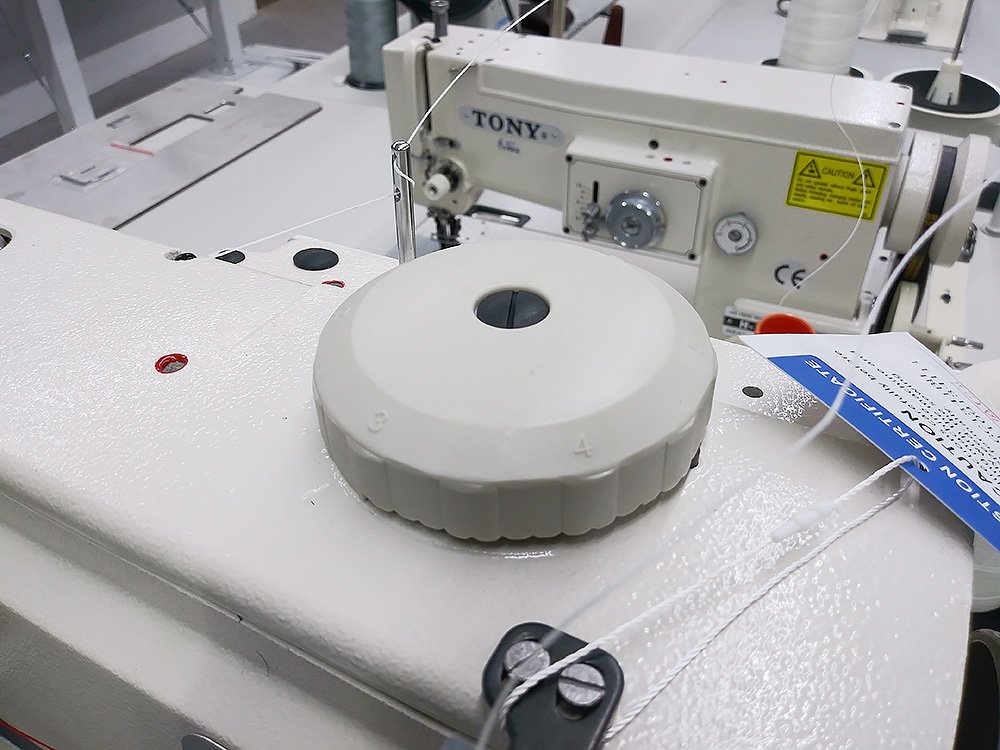

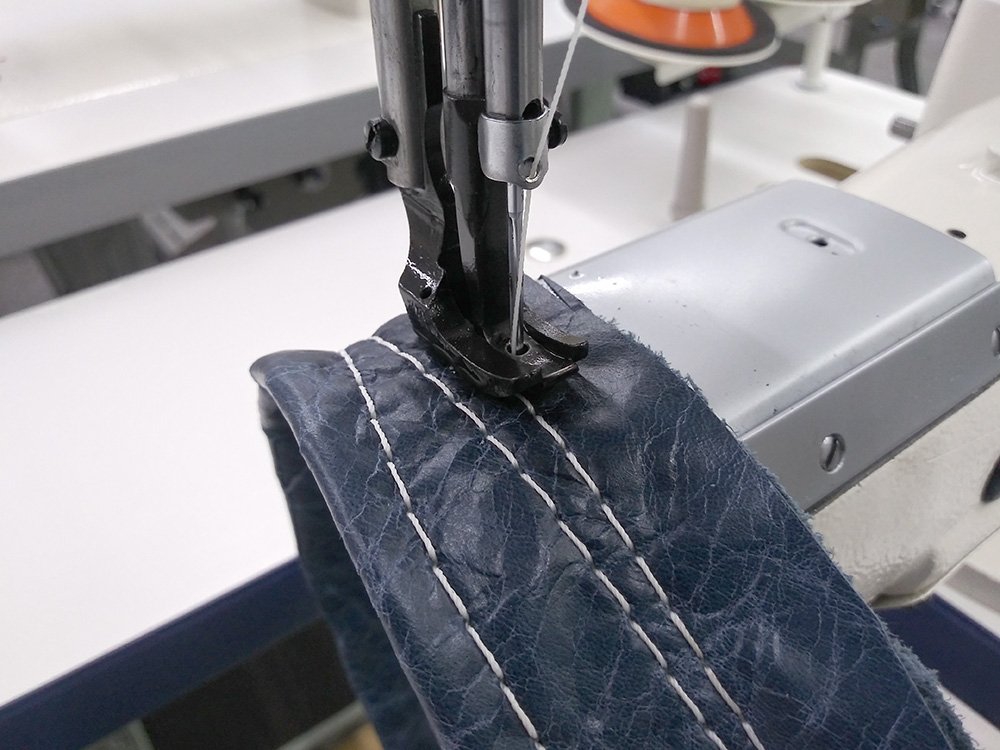

This machine has proven to be robust in handling medium to heavy weight materials such as leather, vinyl, canvas, rubber and webbing. The high foot lift of about 5/8″ enables you to easily stitch over cross-seams and gussets. The top hand dial gives you the capability to increase the alternating walking height of the feet depending on the material thickness ensuring smooth feeding over bulky or foam backed fabrics.
The machine will handle several sizes of thread ranging from TEX 60 up to TEX 270.
The BH subclass has a 2.0 (U Size) hook and bobbin and up to 10mm stitch length.
Standard Features:
- APPLICATION: For Medium to Heavy Weight Materials
- MAX SEWING SPEED: 2,000 SPM
- MAX STITCH LENGTH: 10 mm Forward/Reverse
- NEEDLE BAR STROKE: 36mm
- FOOT LIFT: 16mm by Knee, 9mm by Hand

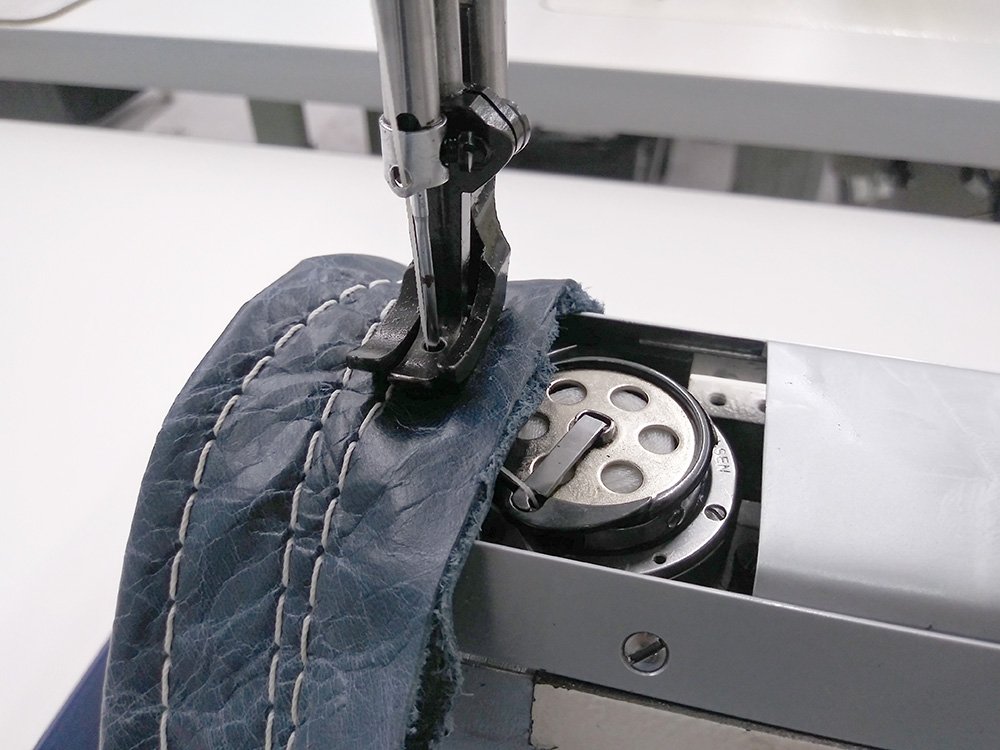

- HOOK: LARGE CAPACITY 2.0 Fold Hook
- NEEDLE: 135×17
- THREAD: TEX 60 to TEX 270

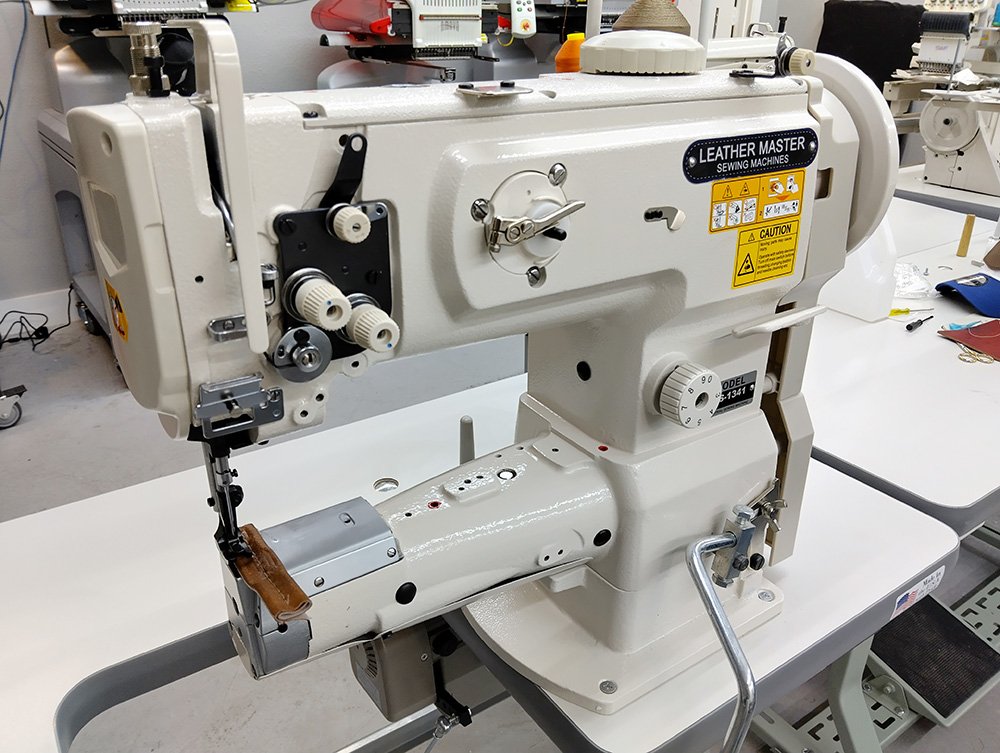

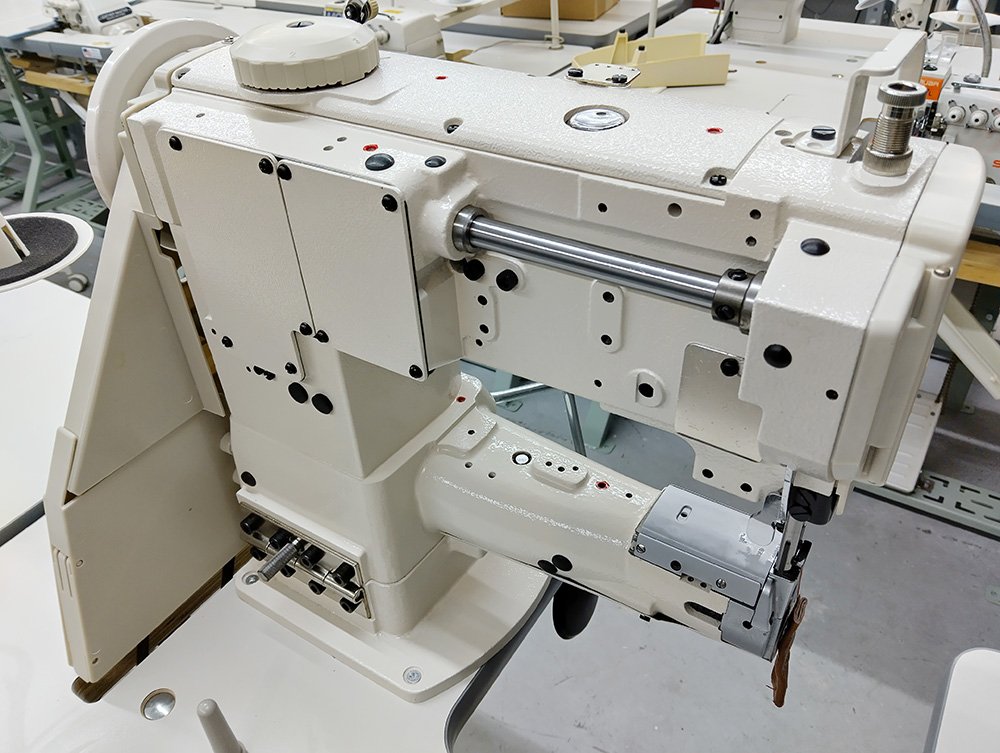

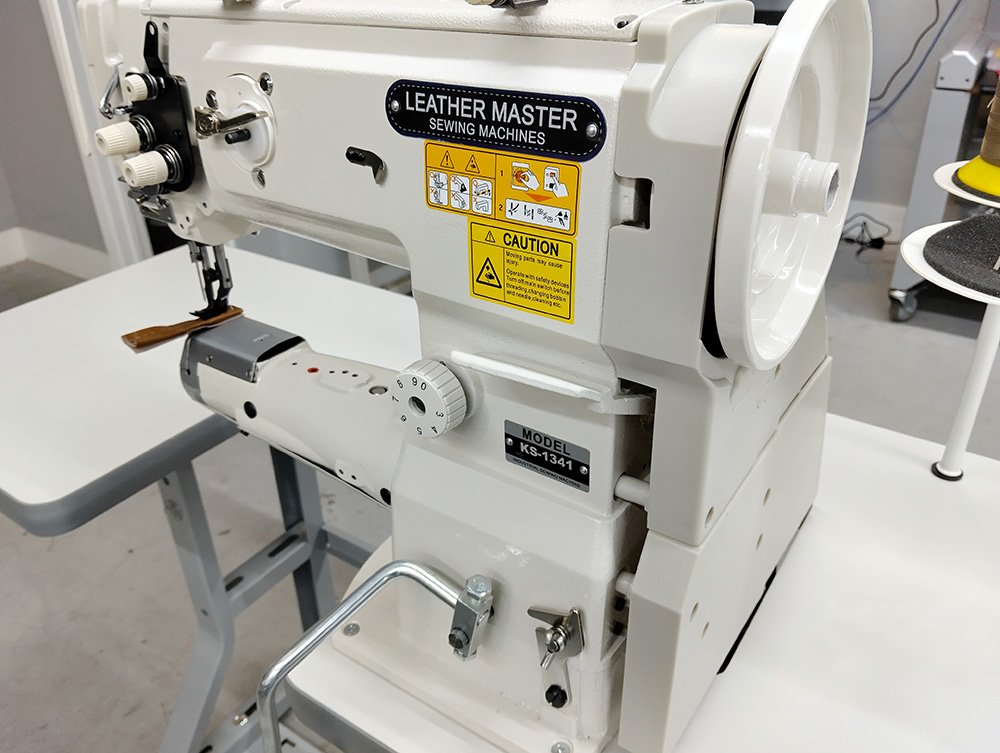

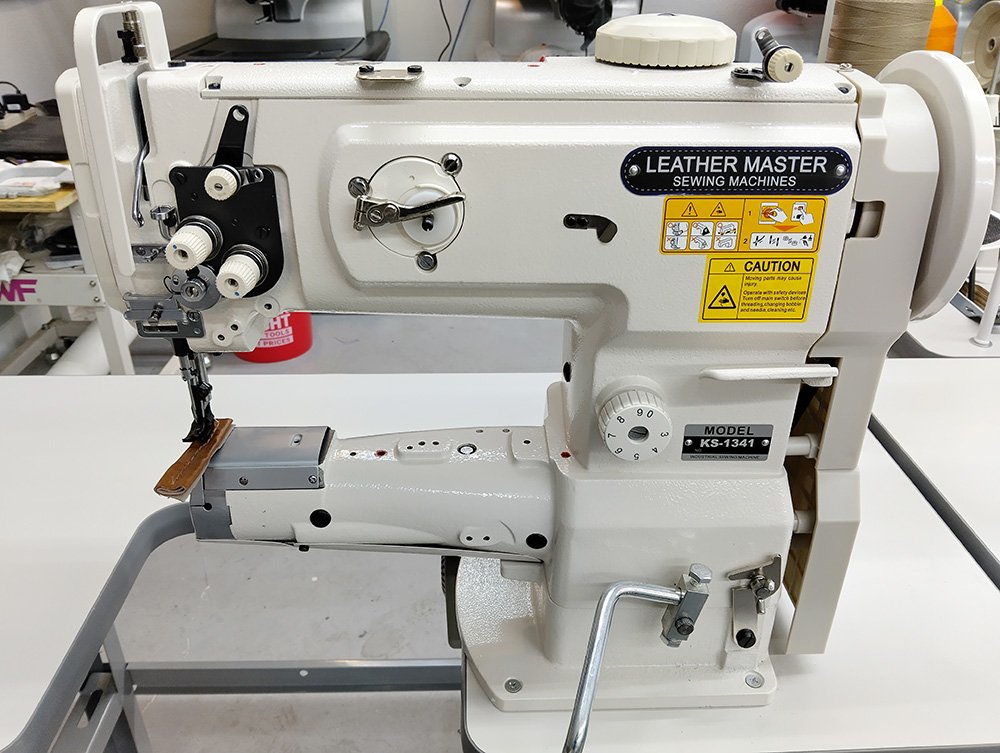

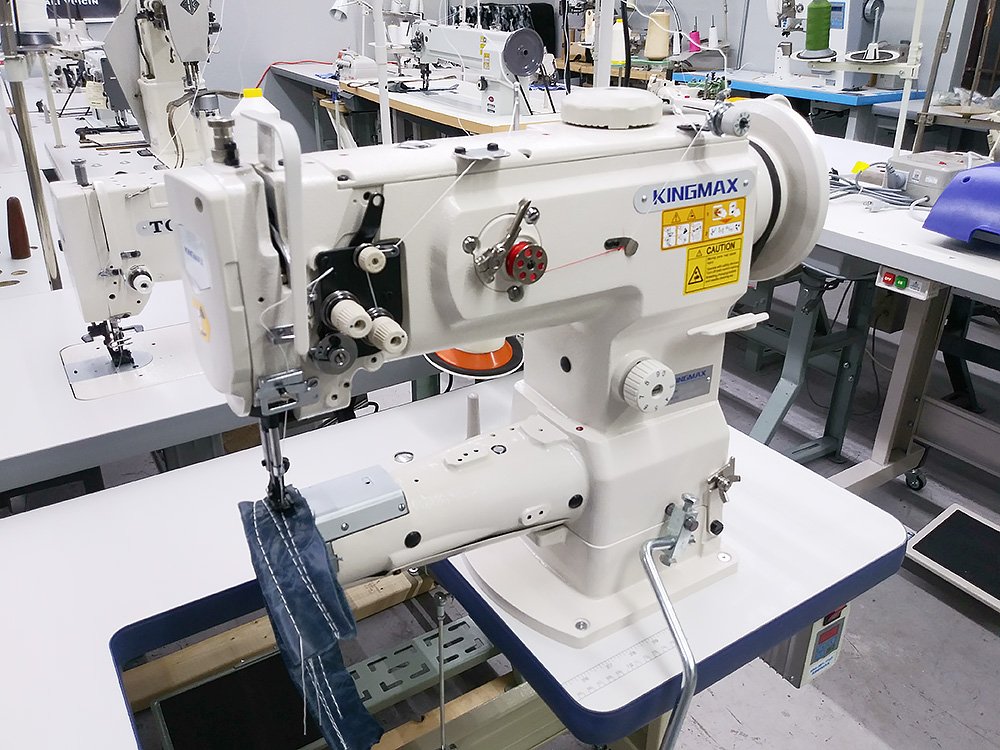

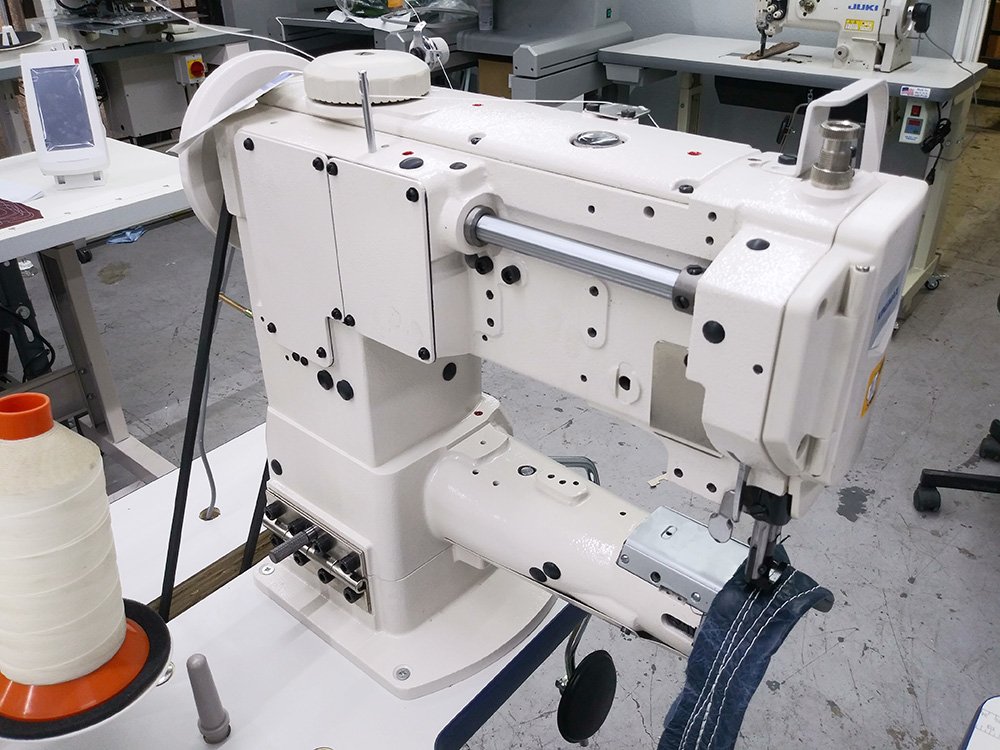

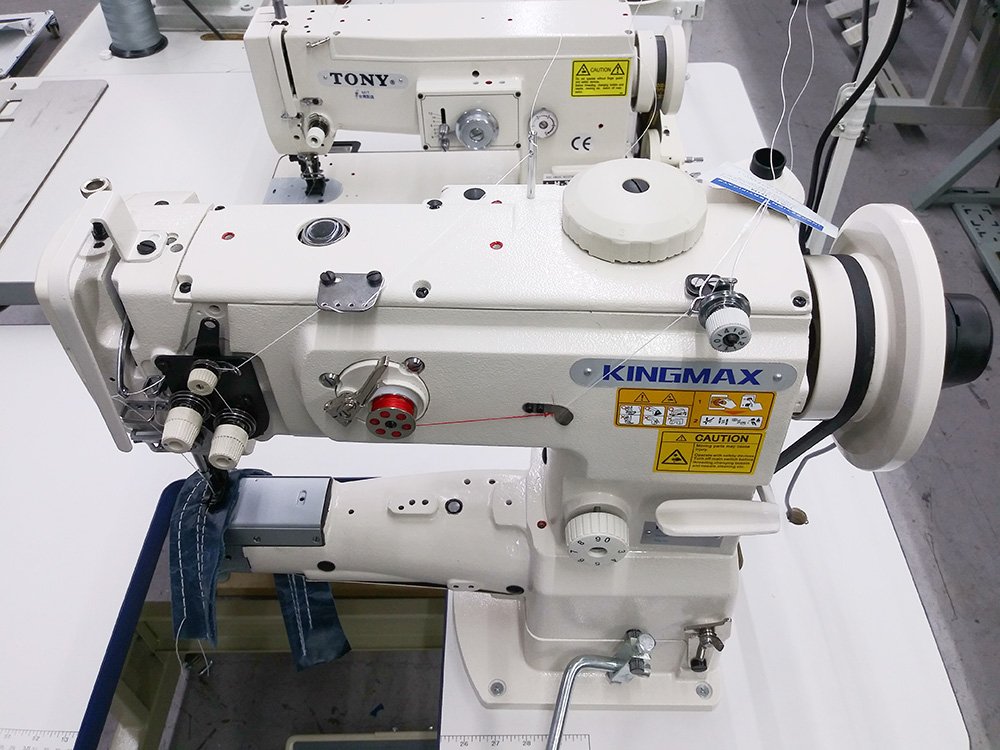

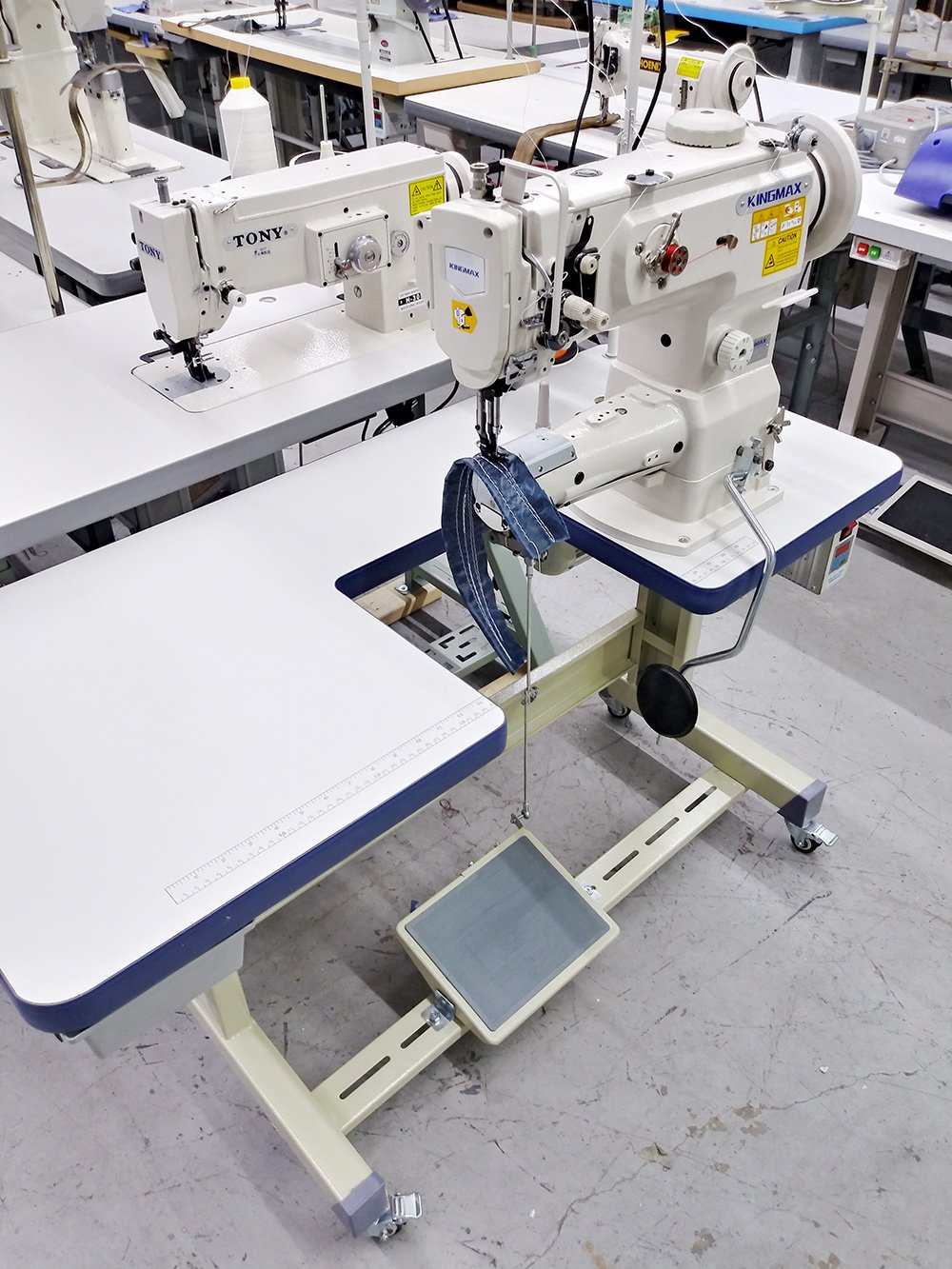

The machine is priced and ships complete and fully assembled as you see in the pics below:

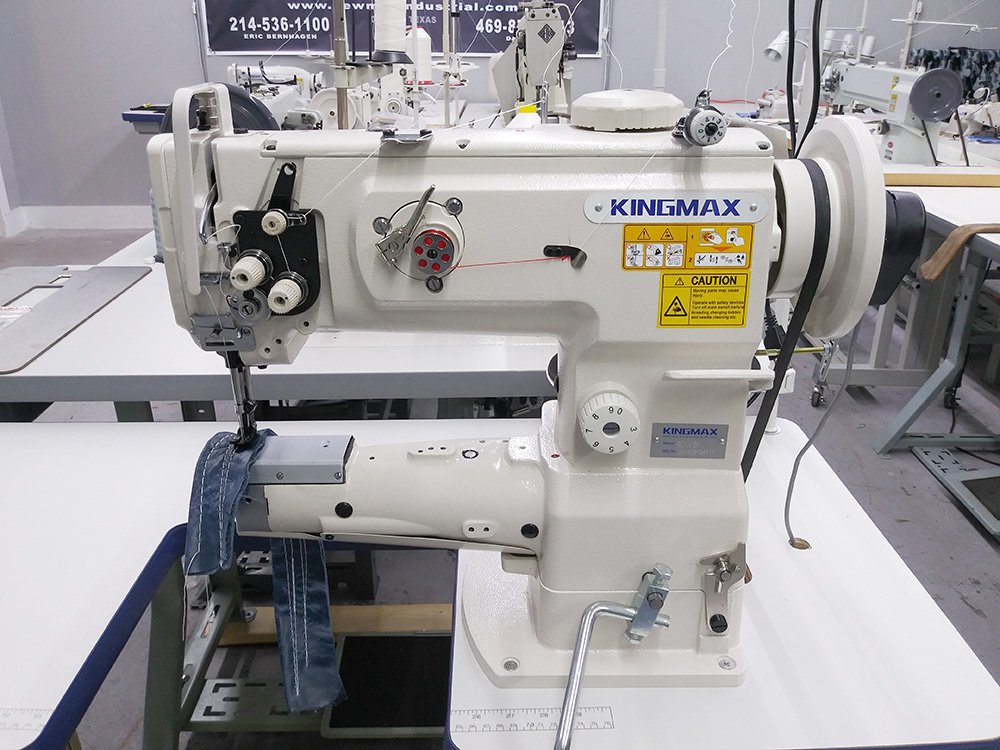

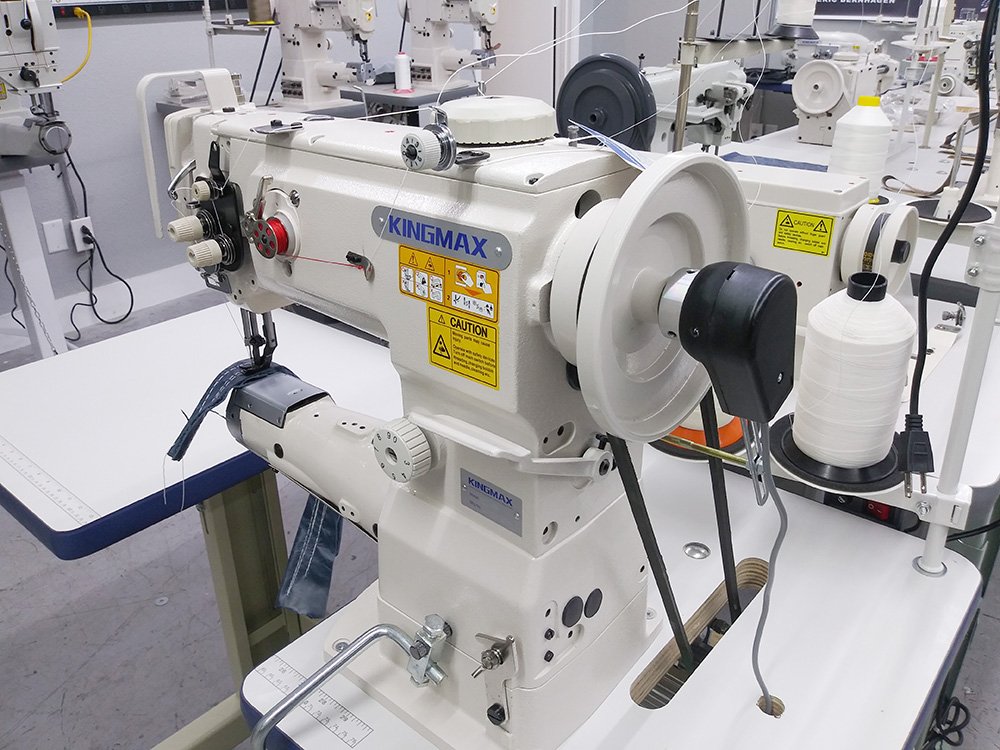

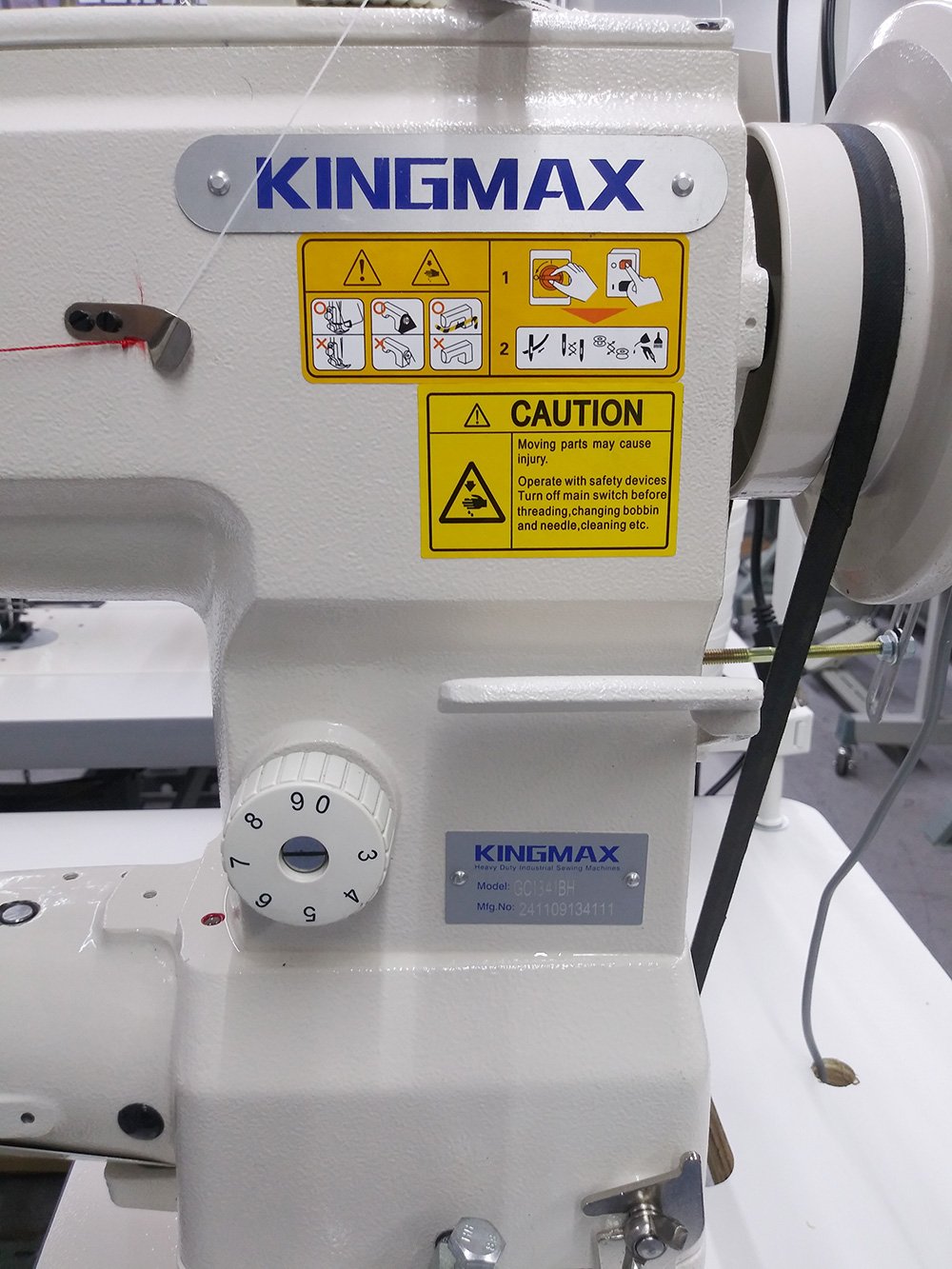

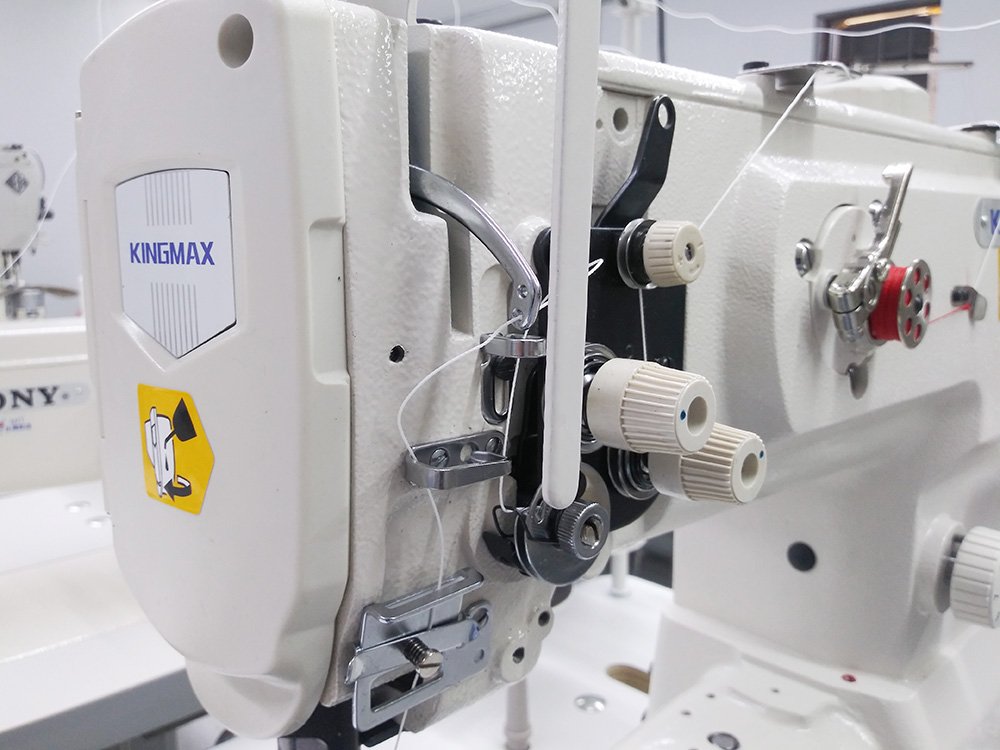

- GC-1341BH Head
- 48″ x 22″ U-Cut Table Top

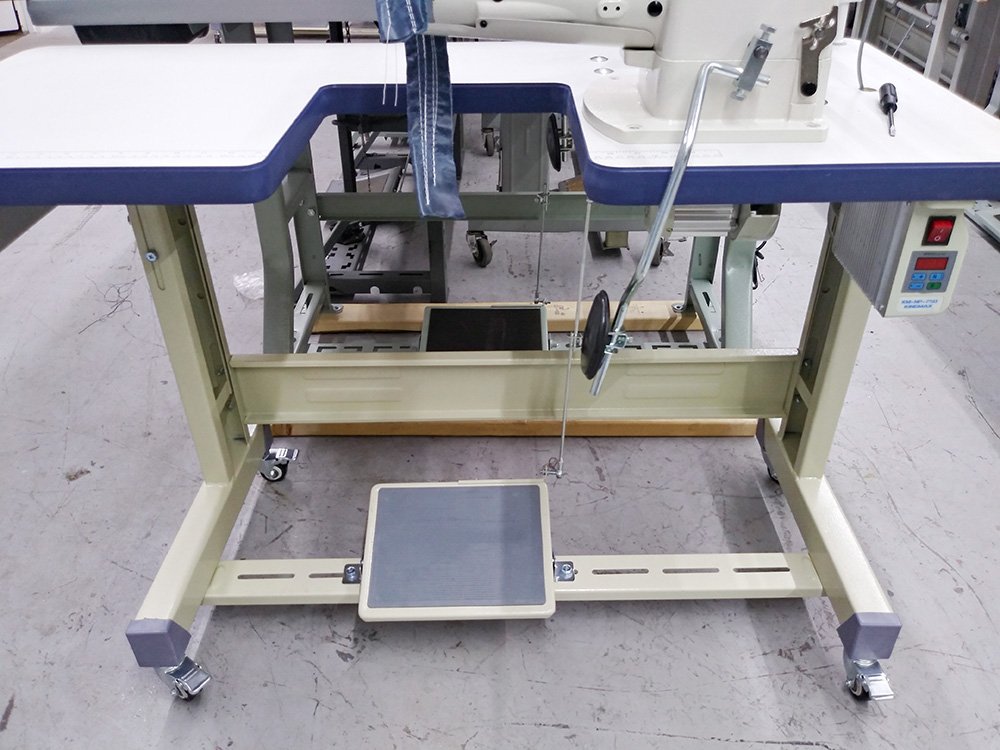

- Heavy Duty Caster Stand with Locking Wheels

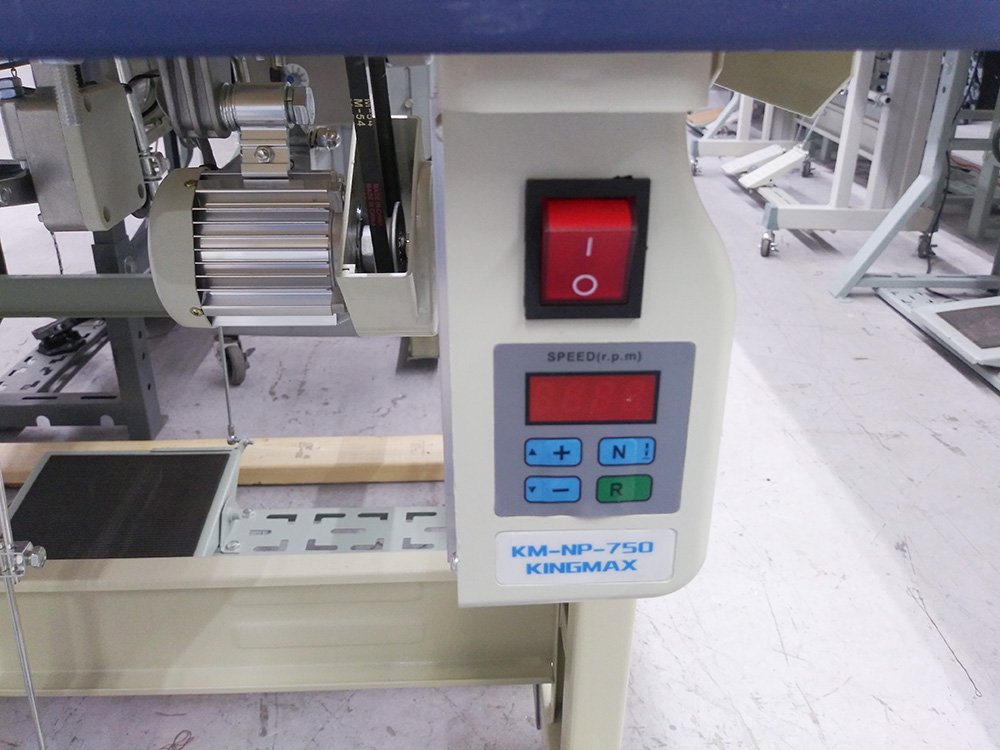

- 750 Watt SERVO Motor with Control Box (Speed Adjustable by Push Button)

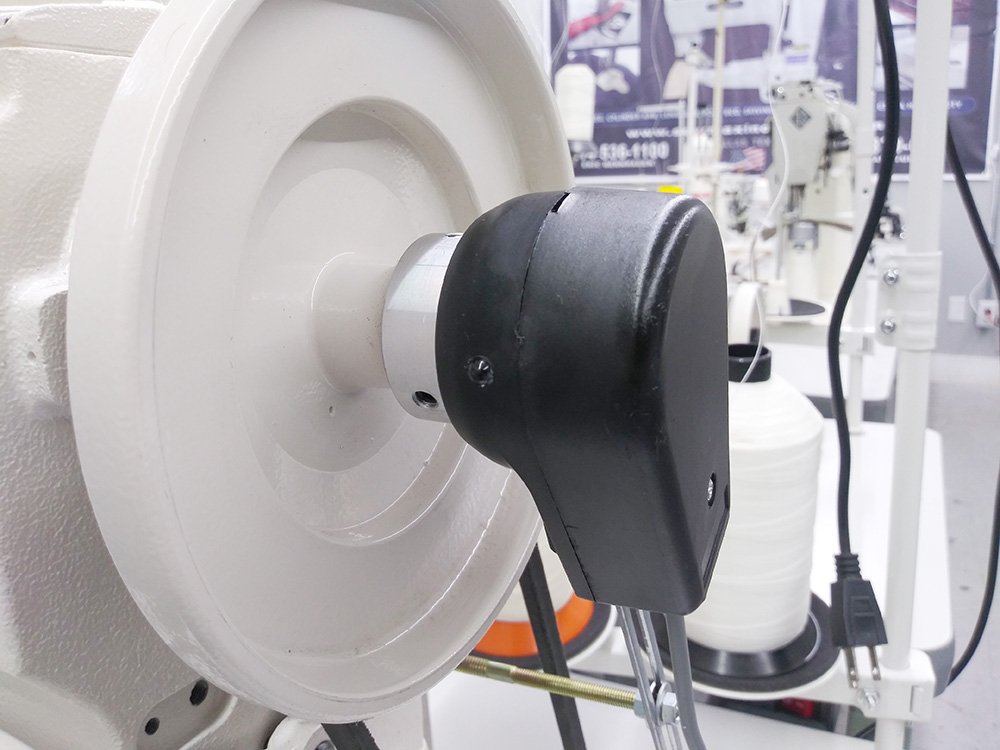

- Needle Up / Needle Down Synchronizer

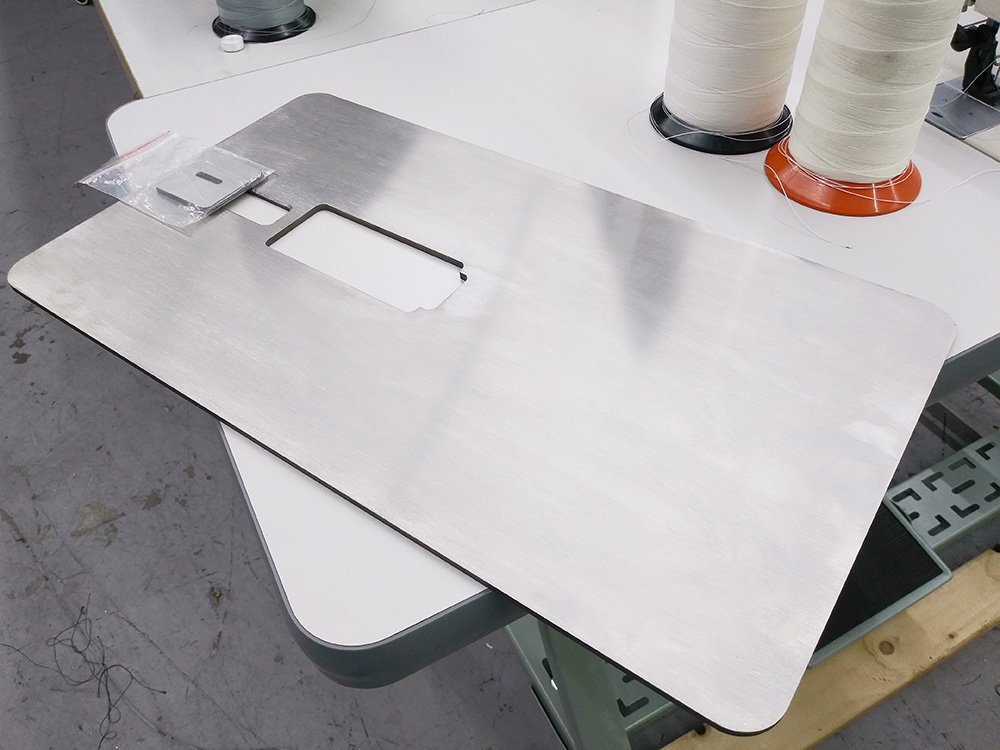

- Flat Bed Extension with 2 Bolt Quick Mount / Dismount
- Front Mounted Bobbin Winder
- Knee Lift
- Thread Stand

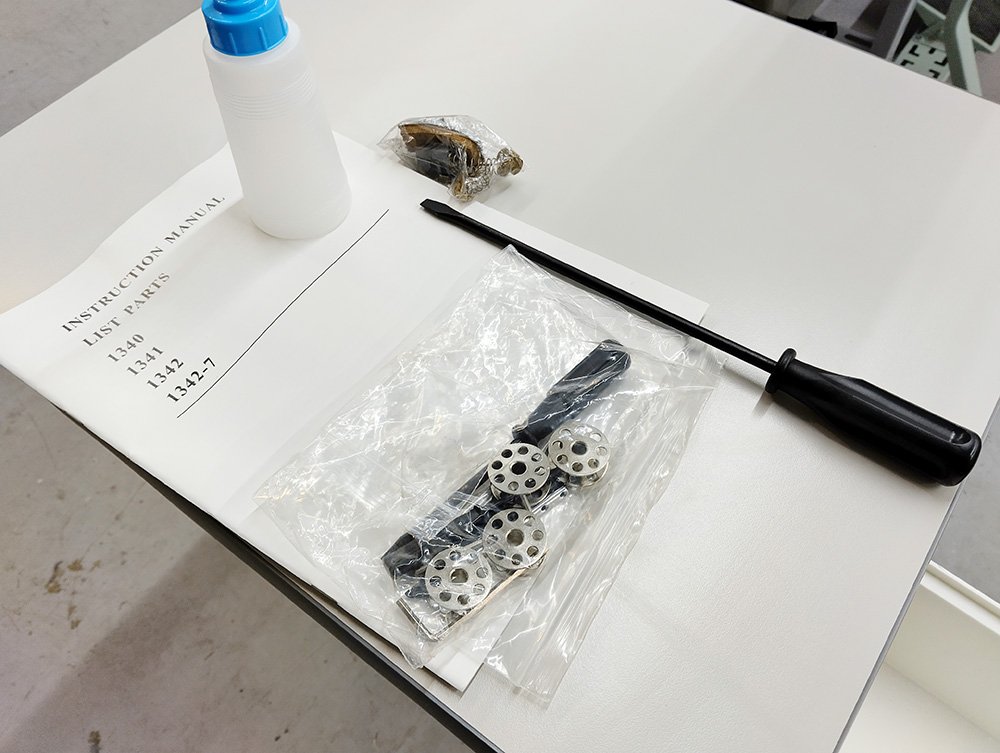

- Extra Needles, Bobbins,Oil and LED Light
- Manual
If you have any questions or need additional info, contact us at 972-428-8698 for details.
