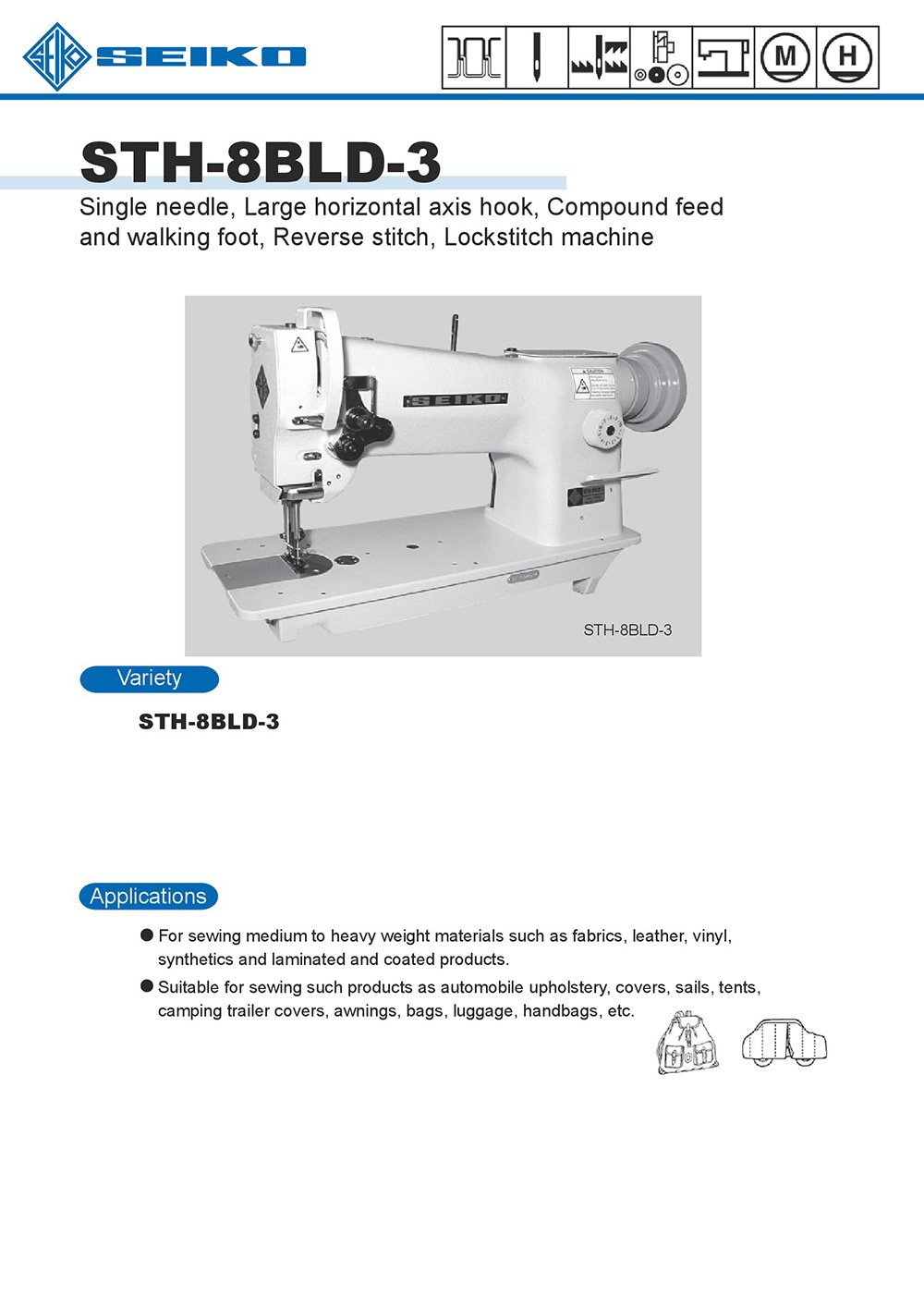

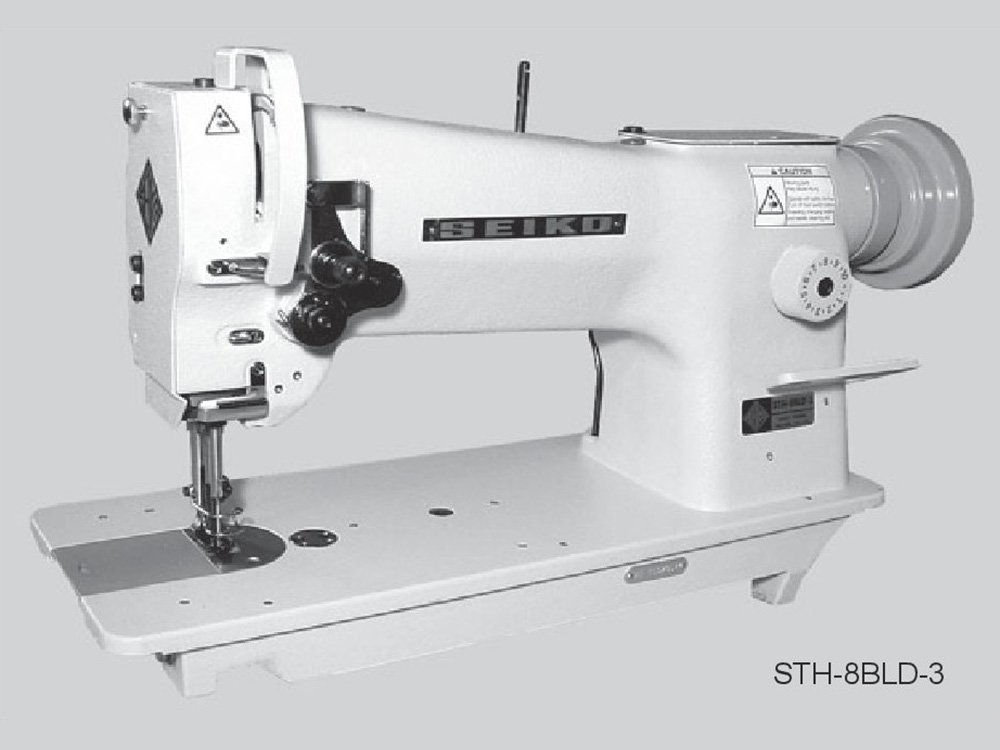

SEIKO STH-8BLD-3 Single Needle Walking Foot Sewing Machine for Leather and Upholstery, Complete and Fully Assembled, JAPAN
The SEIKO STH-8BLD-3 is only one of two flat bed walking foot machines still made completely in Japan – including internal parts and final assembly.
This machine is designed sew medium to heavy weight materials and features an M Size side load bobbin, triple feeding mechanism (feed dogs, walking foot, needle feed), 135×17 Needle system, up to 10mm stitch length, reverse, and can sew thread sizes from TEX 60 to TEX 135 (can push to Tex 210 on top with smaller thread on bobbin).
The machine is priced and ships complete and fully assembled, ready to sew upon delivery.
Applications
- For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics and laminated and coated products.
- Suitable for sewing such products as automobile upholstery, covers, sails, tents, camping trailer covers, awnings, bags, luggage, handbags, etc.

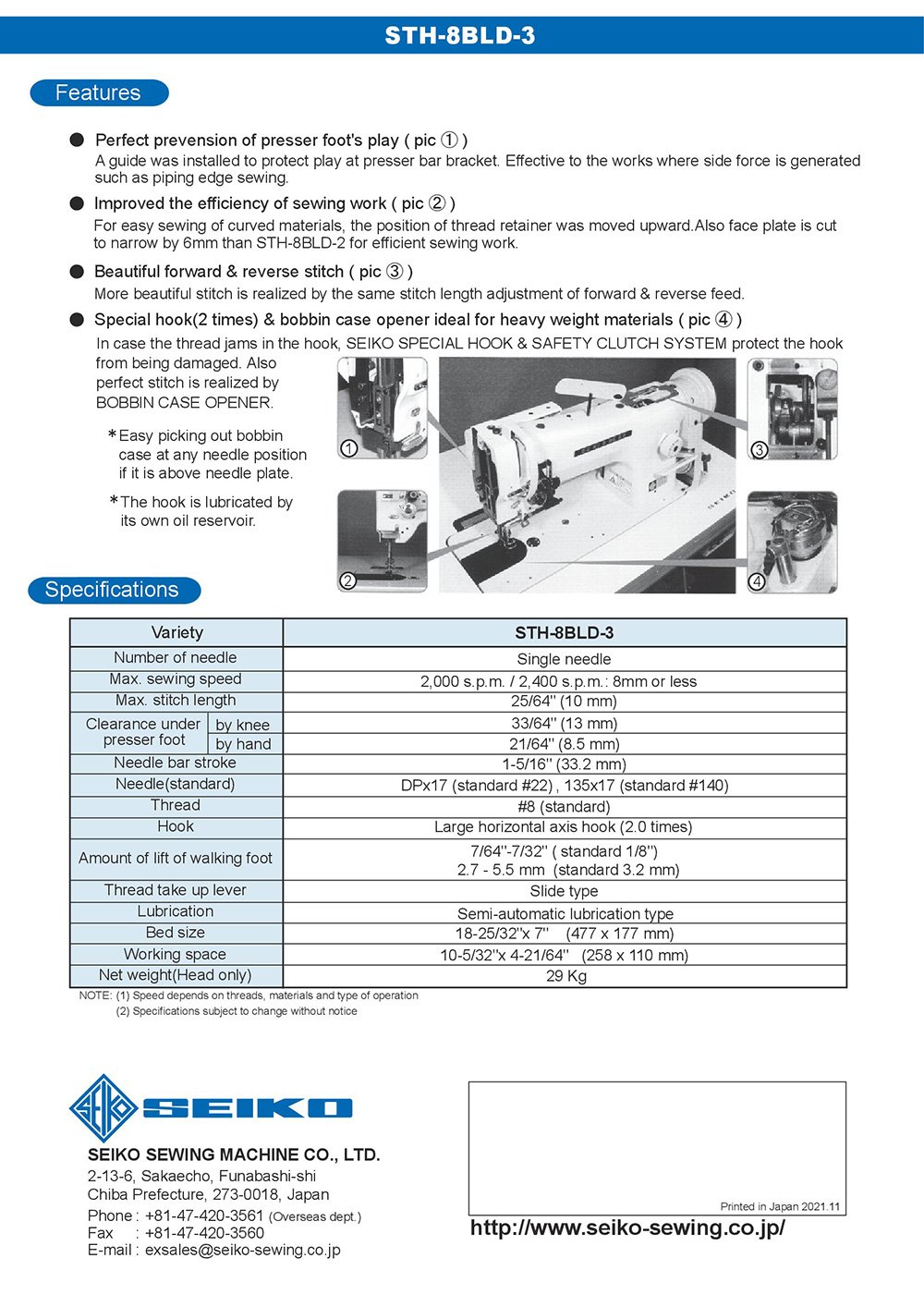

Features
| Max.sewing speed | 2,000 s.p.m. (2,400 s.p.m.: 8mm or less) |
|---|---|
| Max.stitch length | 10mm |
| Clearance under presser foot |
13mm(by knee) 8.5mm(by hand) |
| Needle bar stroke | 33.2mm |
| Needle(Standard) | DPx17 (#22) 135×17 (#140) |
| Hook | Large horizontal axis hook (2.0 times) |
| Amount of walking foot movement |
2.7-5.5mm(Standard 3.2mm) |
| Lubrication | Semi-automatic lubrication type |
This SEIKO sewing machine is priced and ships complete and fully assembled:
- Head – Mounted on the Stand, Sewn Off and Tested
- Table Top
- K-Leg Stand
- 110 Volt SERVO Motor
- Knee Lift
- Thread Stand
- Extra Needles
- Extra Bobbins
- Oil
- Factory Supplied Tools and Manuals
PRICED COMPLETE AND FULLY ASSEMBLED WITH NEW TOP, STAND, 110 VOLT SERVO MOTOR
Contact us at 972-428-8698 for more details or to purchase this machine over the phone.
