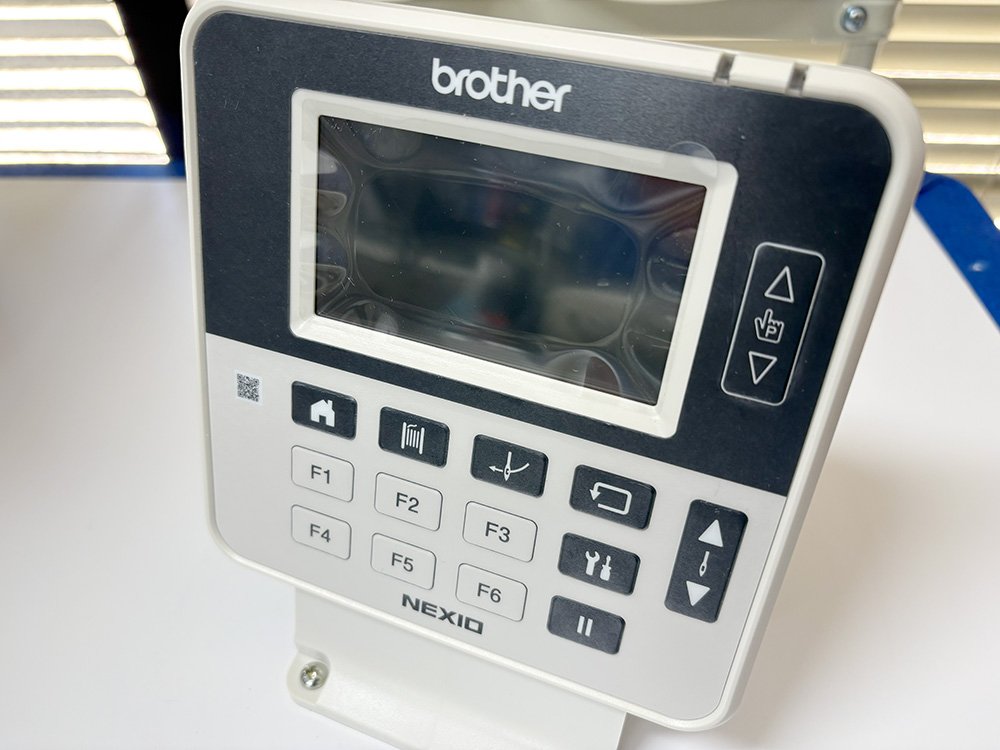

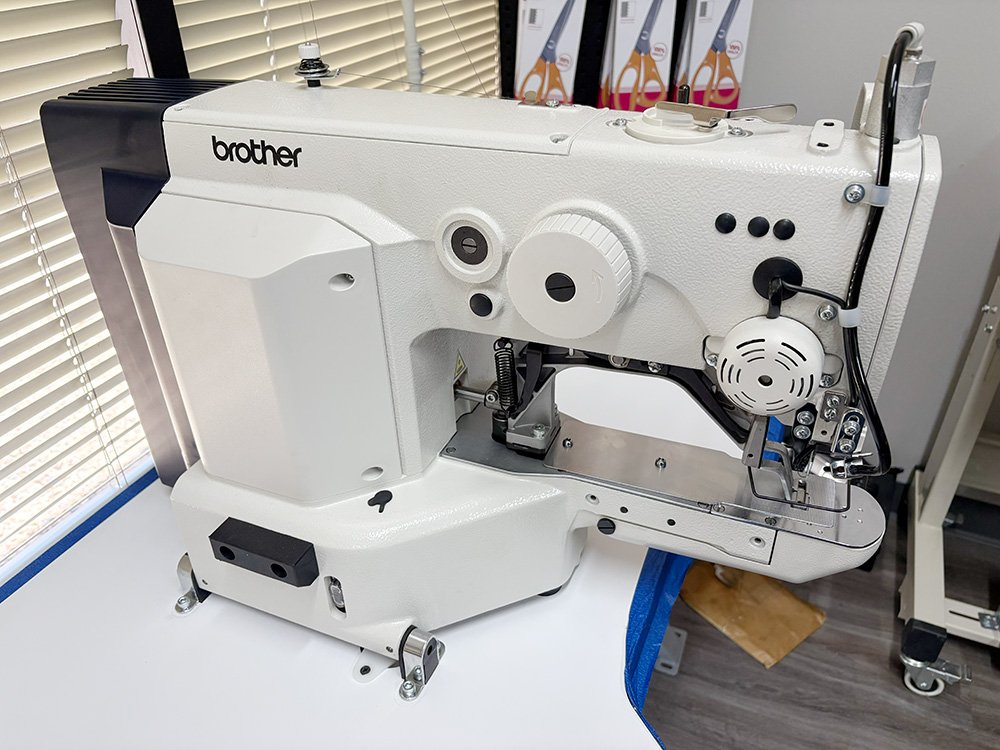

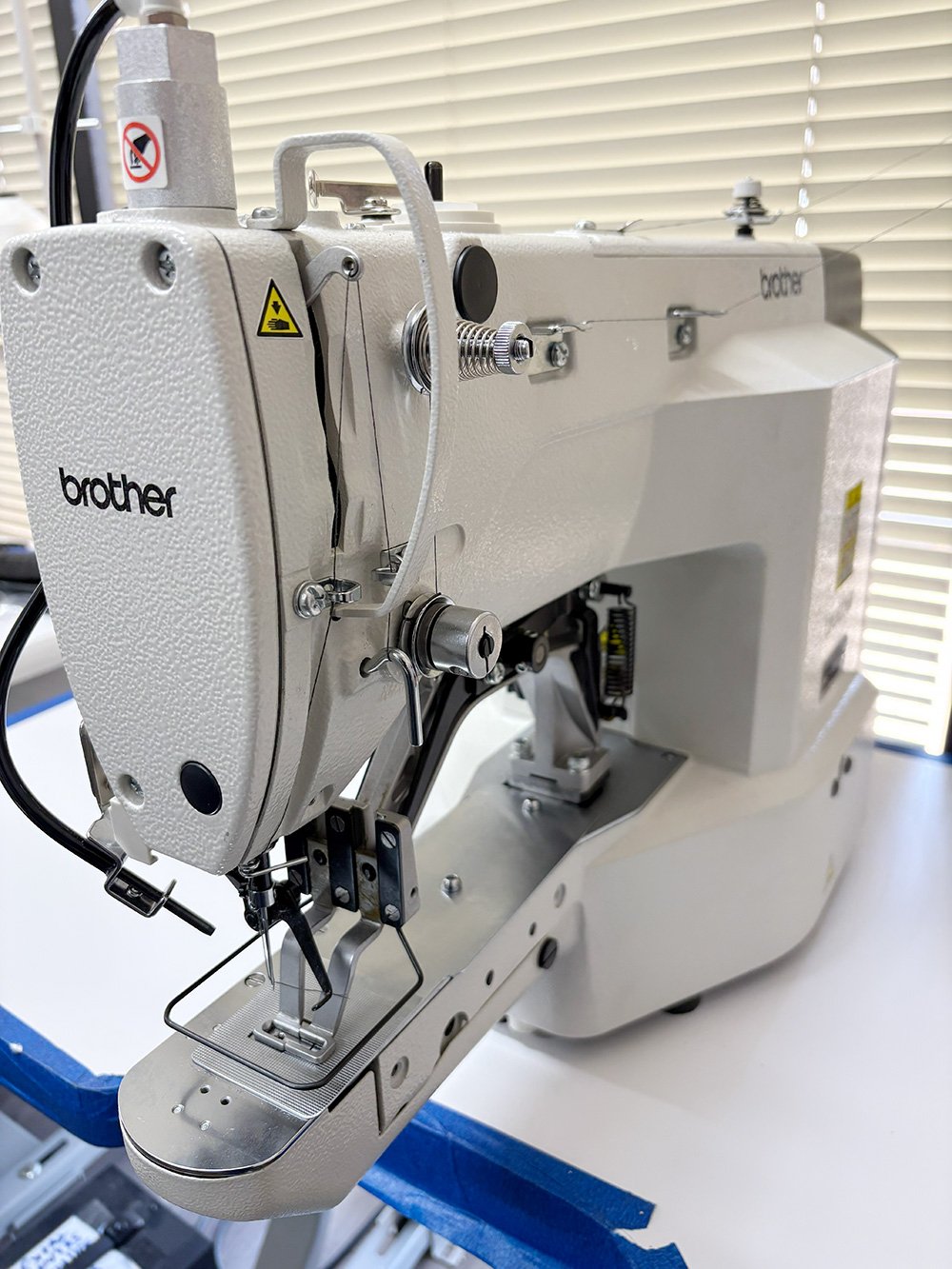

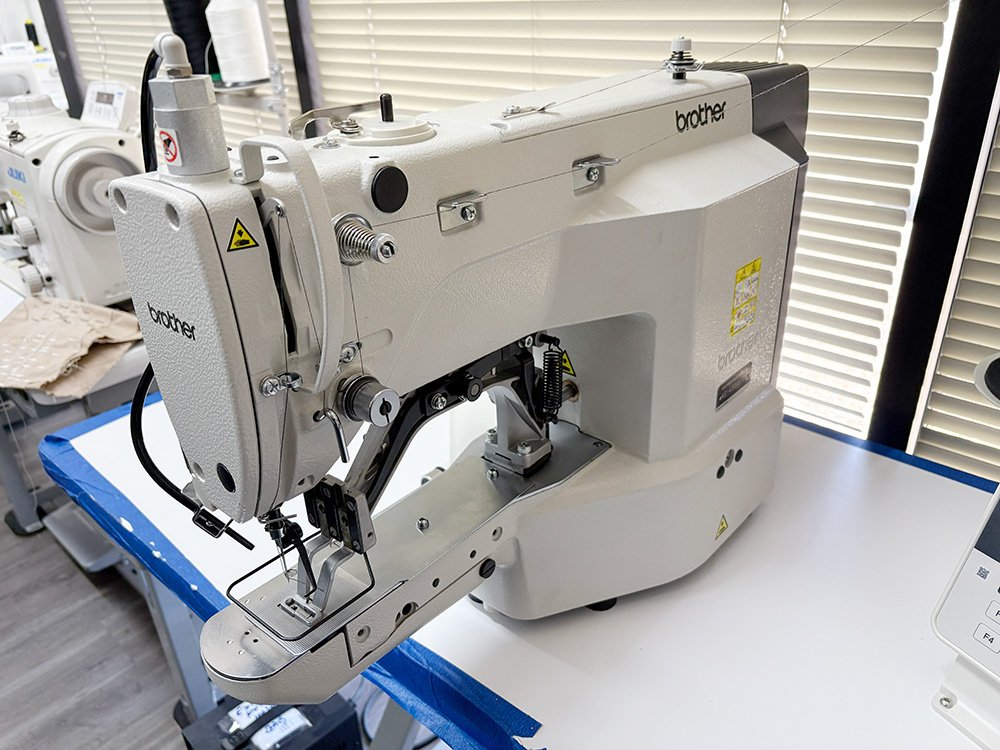

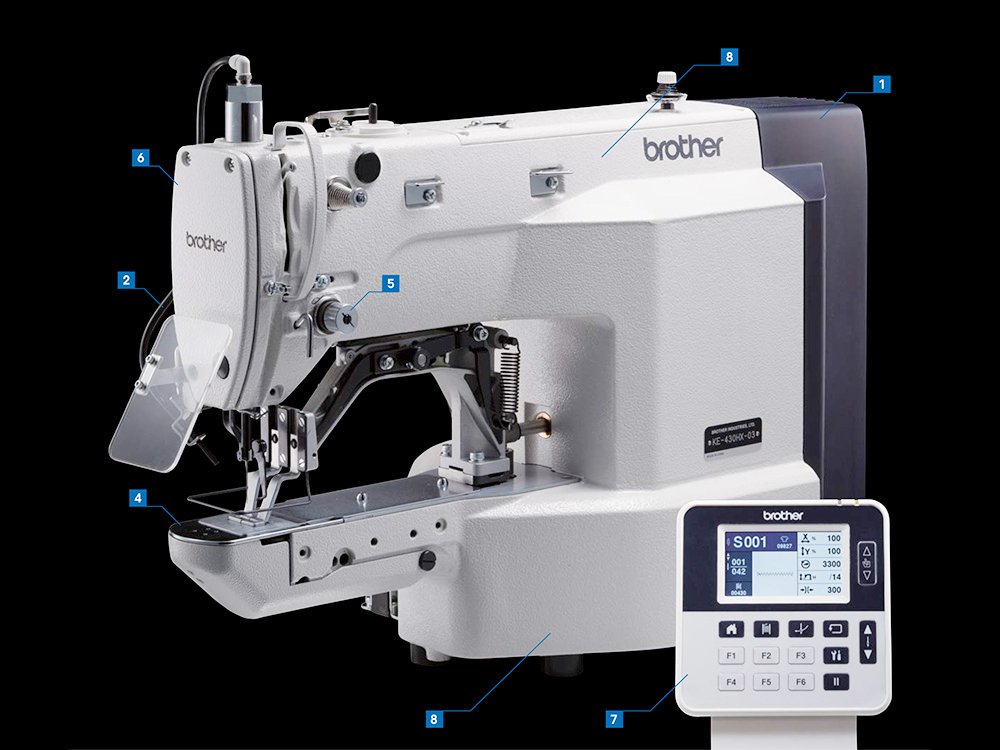

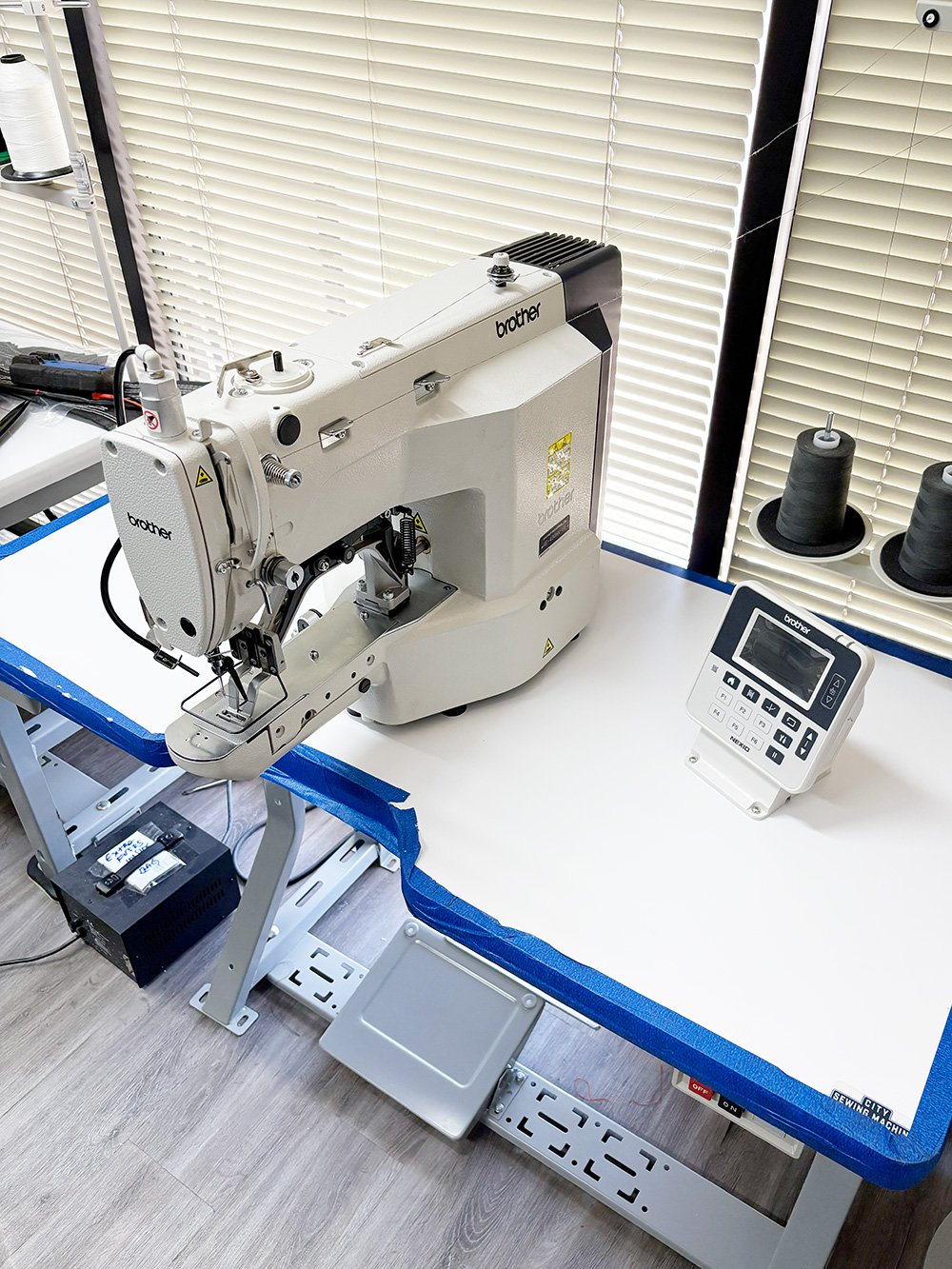

BROTHER KE-430HX-05 Electronic Tacker for with BIG Hook and Bobbins, Digital Tension, Needle Cooler, Control Panel, Fully Assembled

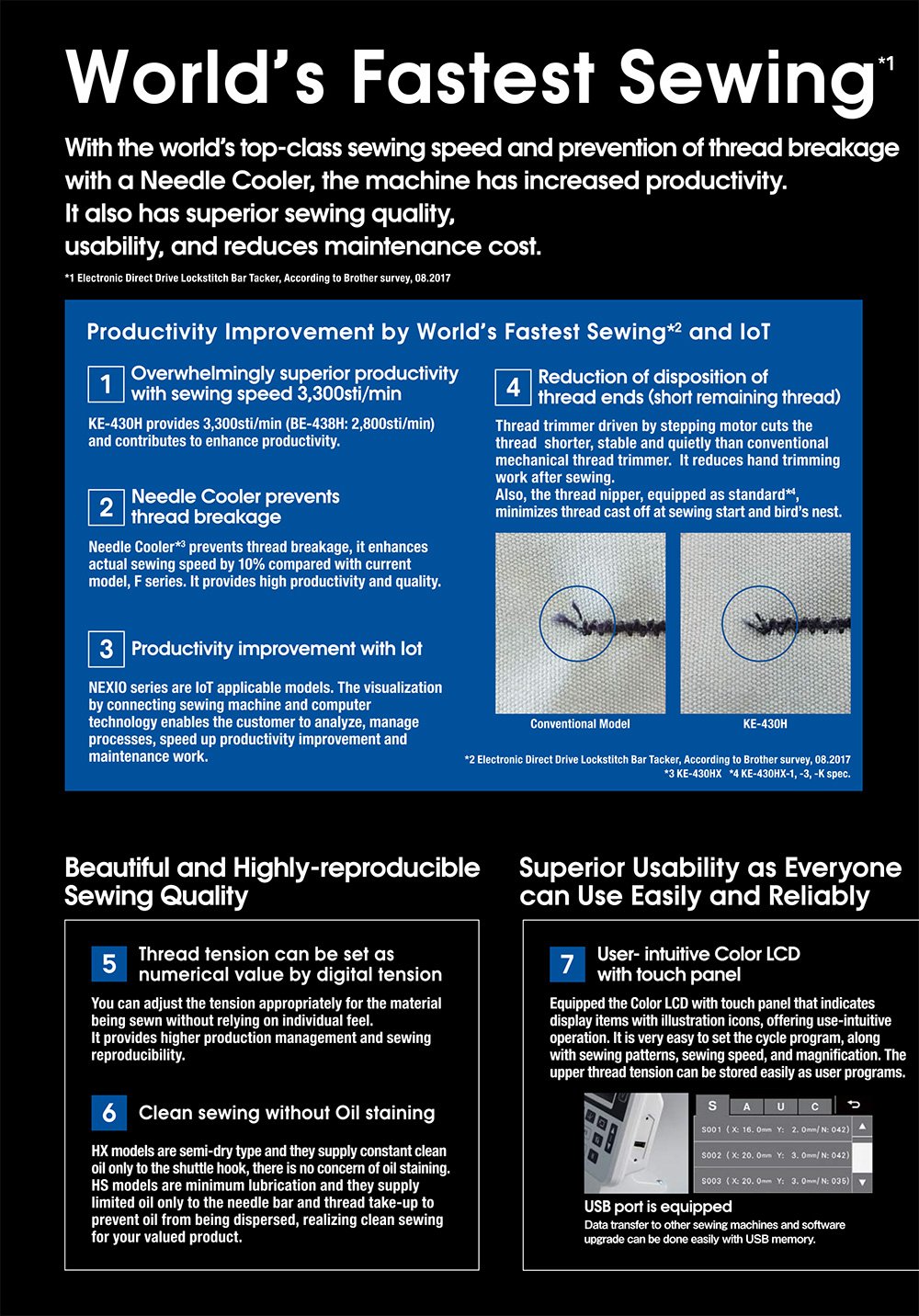

The Brother KE-430HX-05 is a high-speed electronic bartack machine designed to handle light, medium, heavy, and knitted materials. Its powerful direct-drive system supports precision sewing across a wide fabric range, making it ideal for garment manufacturers that require both speed and adaptability. With a maximum speed of 3,300 stitches per minute, a wide sewing area, and programmable stitch patterns, the KE-430HX delivers consistent, high-quality results. It comes equipped with a pulse motor-driven feed mechanism, automatic thread trimming, and internal memory for up to 500 programmable patterns (with optional expansion).
Key Features:
- Suitable for light, medium, heavy, and knit fabrics
- Max. speed: 3,300 stitches/min
- Sewing area: up to 40 mm × 30 mm (approx. 1.6 in × 1.2 in)
- Pulse-motor drive system with Y-axis intermittent feed mechanism
- Stitch length: 0.05–12.7 mm
- Automatic thread trimmer and wiper included

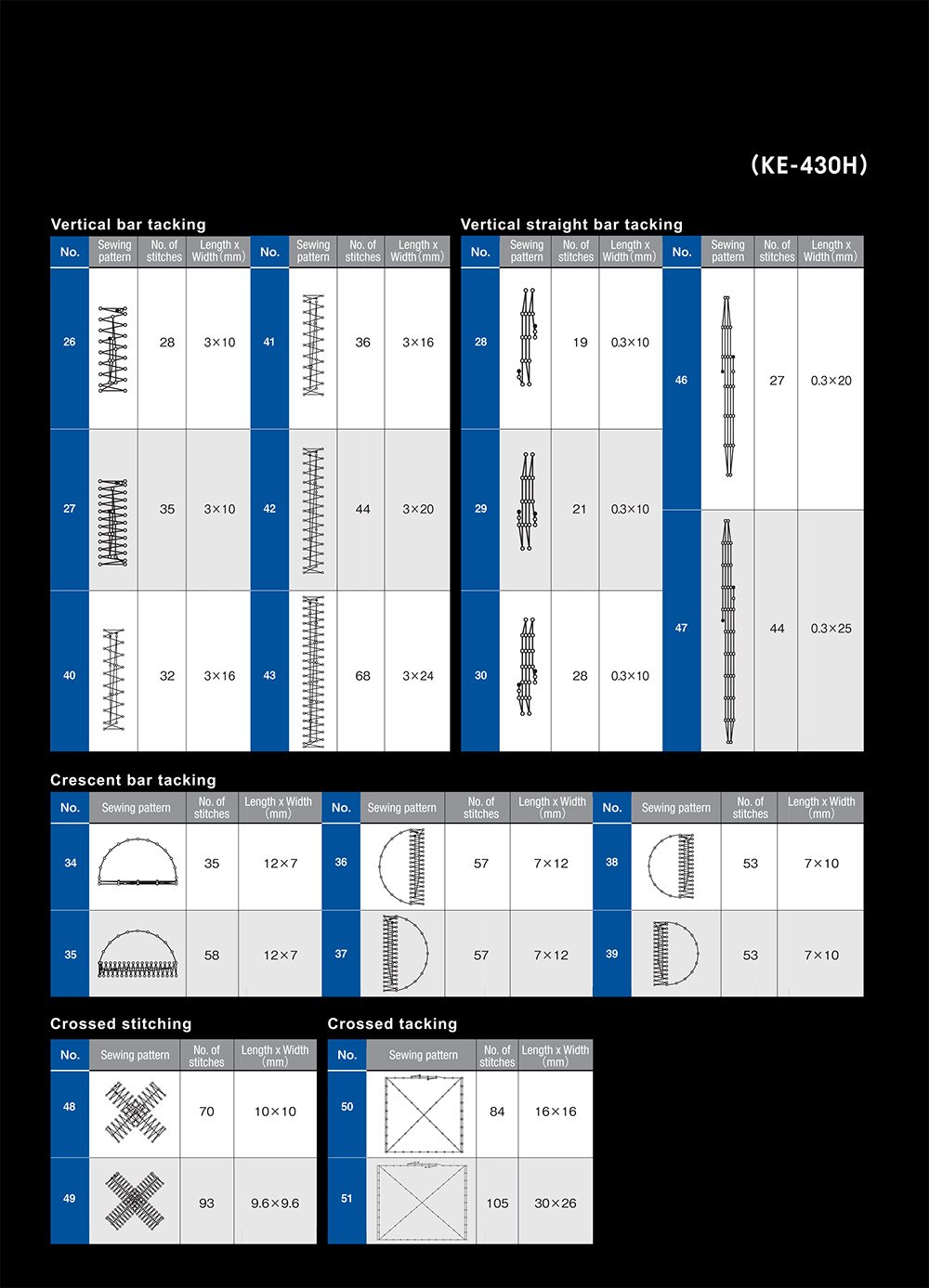

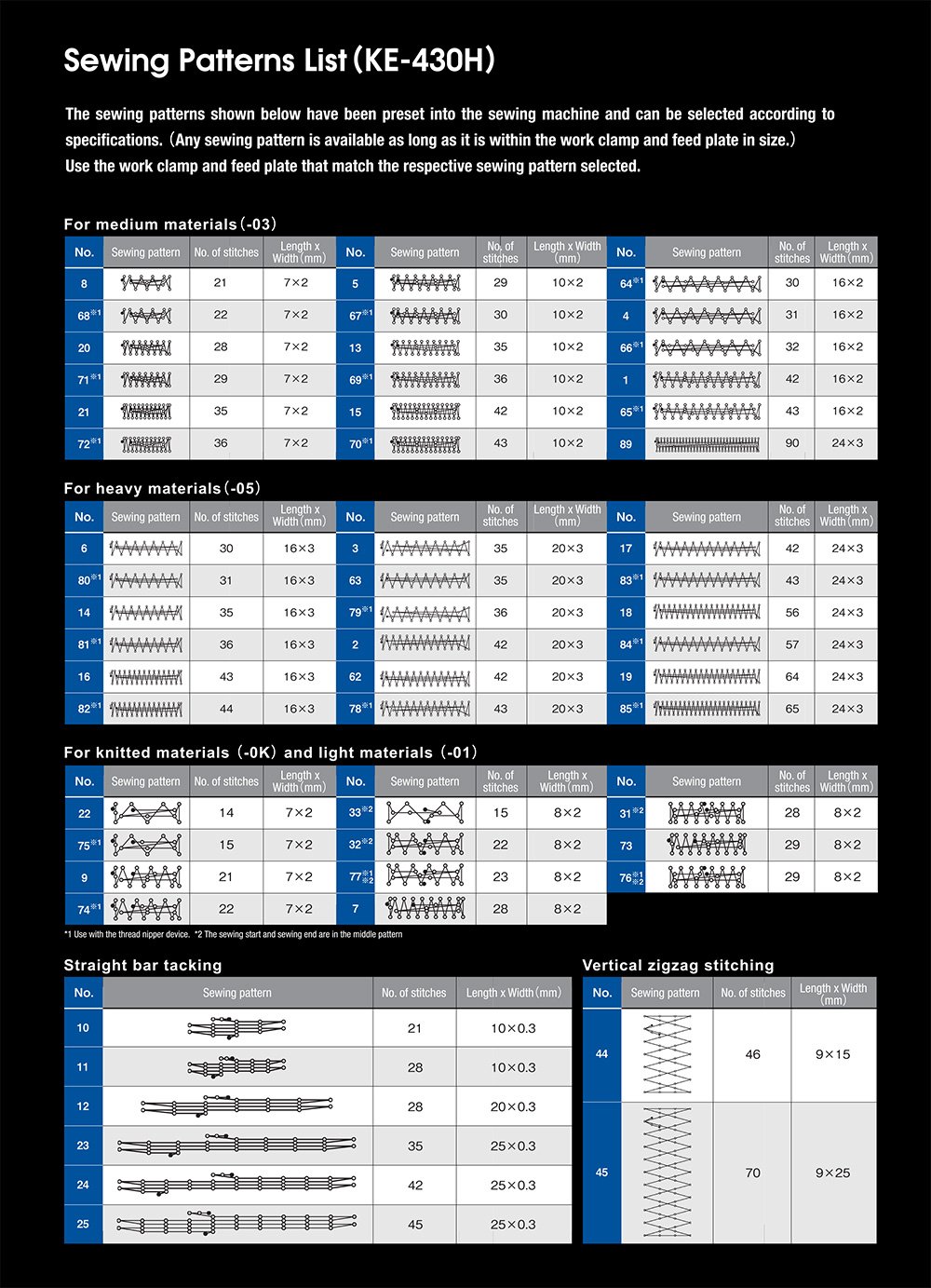

- Built-in internal memory with up to 89 preset patterns
- Max. 5,000 stitches per pattern
- Shuttle hook

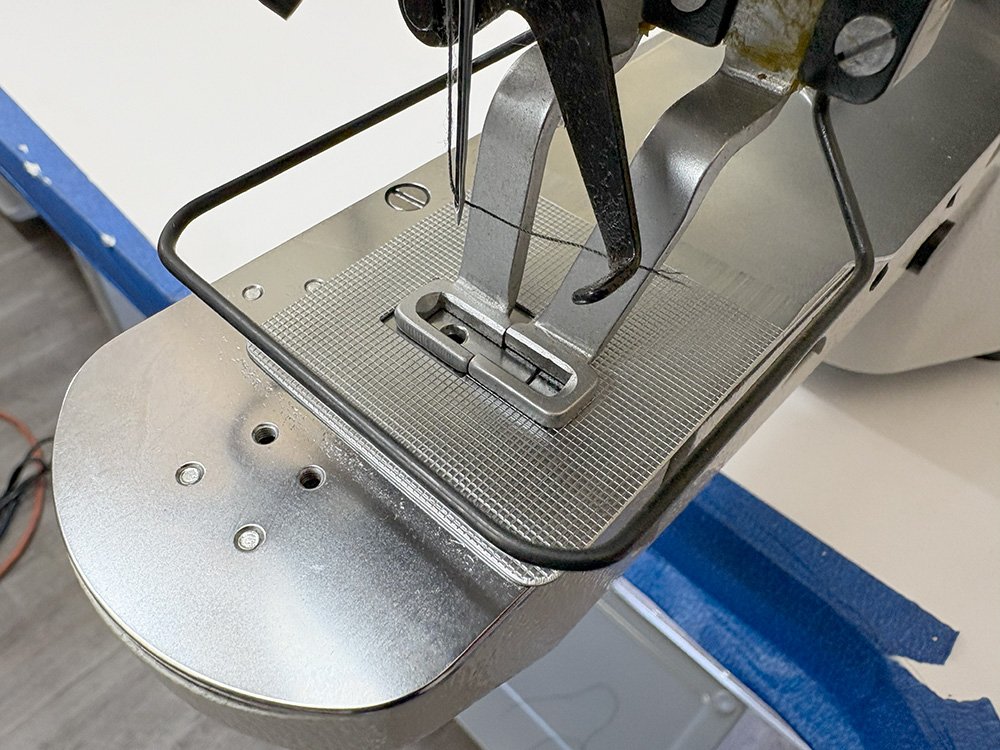

- Work clamp lift: Max. 17 mm (0.67 in)

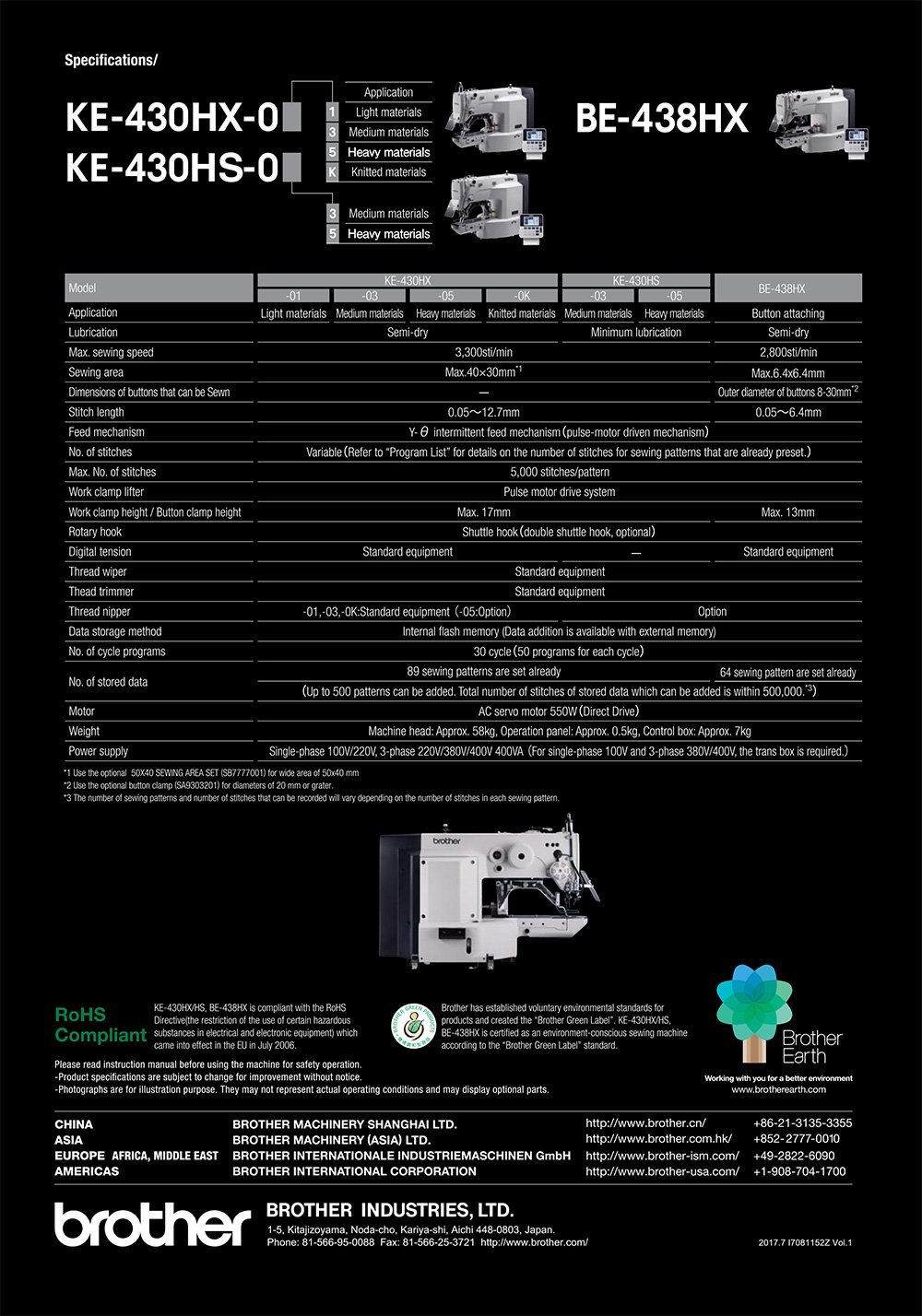

Technical Specifications:
- Model: KE-430HX
- Application: Light, medium, heavy, and knitted materials
- Lubrication: Semi-dry
- Max Sewing Speed: 3,300 stitches per minute

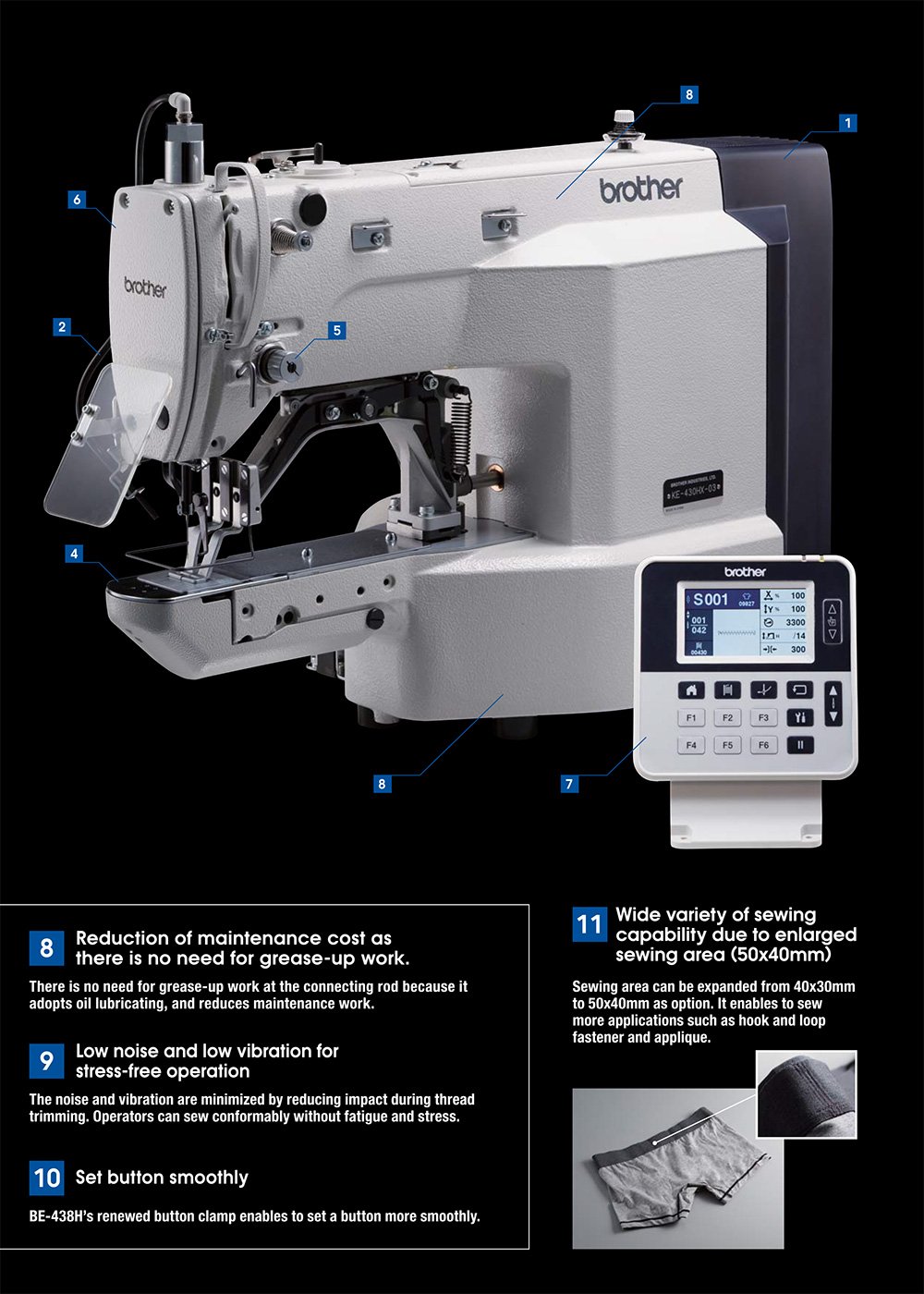

- Sewing Area: Max. 40 mm × 30 mm (1.57 in × 1.18 in)
- Stitch Length: 0.05–12.7 mm
- Feed Mechanism: Y-axis intermittent feed (pulse-motor driven)
- Thread Trimmer: Automatic
- Thread Wiper: Included
- Thread Nipper: Standard (for -01, -03, -0K); optional for -05
- Presser Foot Lift: Max. 17 mm (0.67 in)
- Rotary Hook: Shuttle hook
- Motor: AC Servo Motor – 550W Direct Drive
- Power Supply: Single-phase 100V/220V, 3-phase 220V/380V/400V

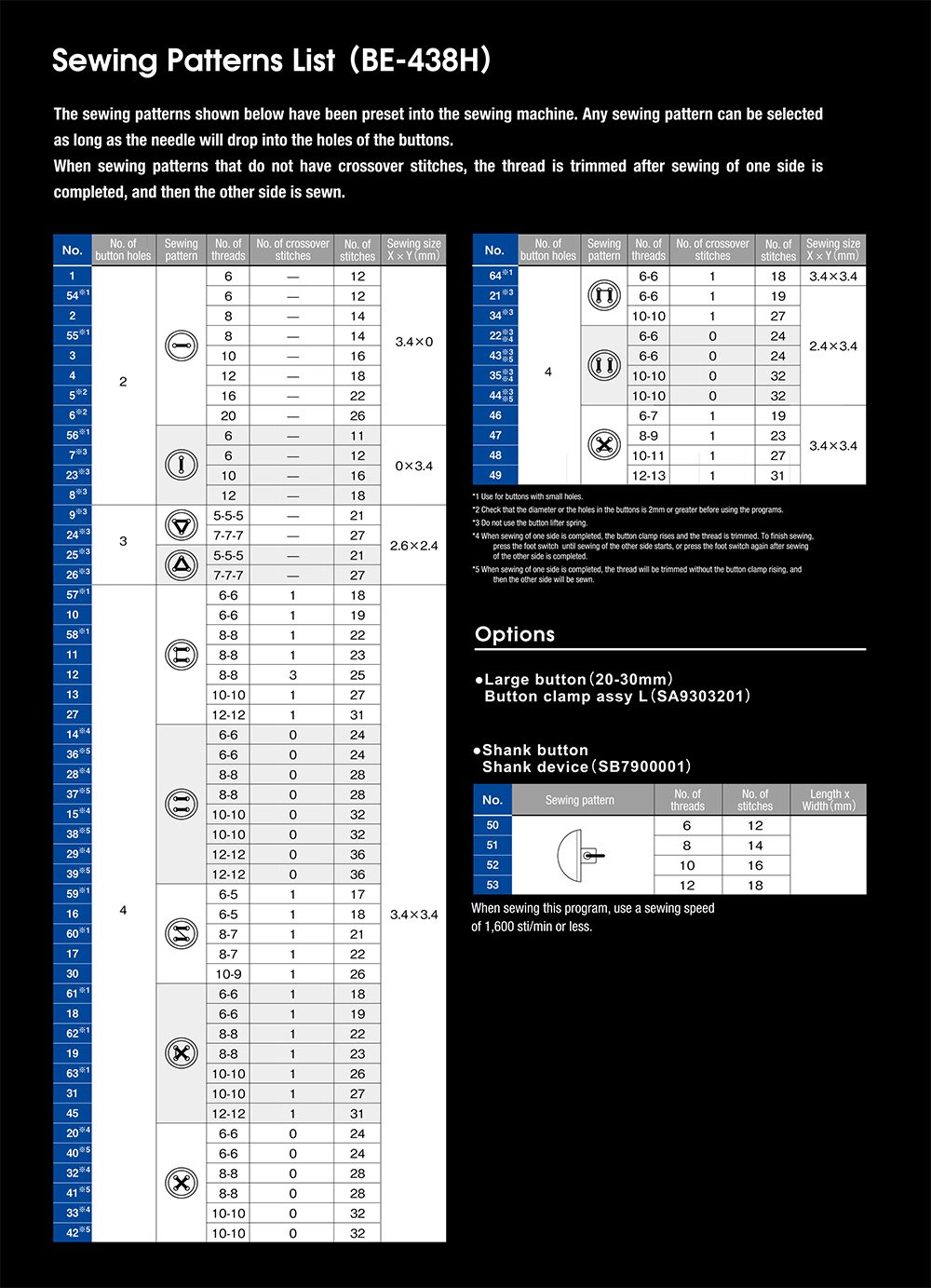

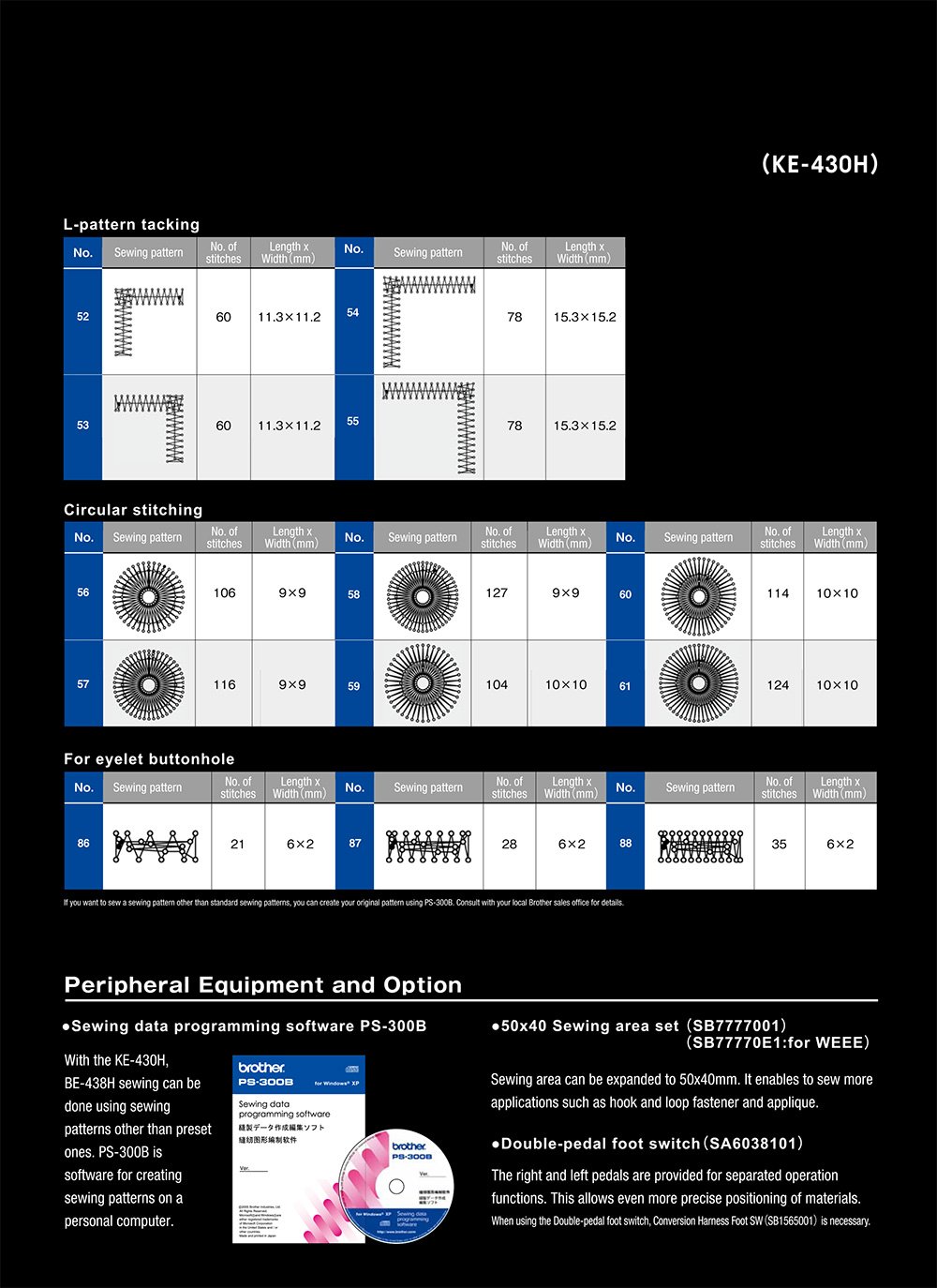

- Data Storage: Internal memory for 89 preset patterns, expandable to 500 total patterns
- Cycle Programs: 30 cycles (50 programs per cycle)
If you need any additional info or want a custom set-up such as box-x sewing, contact us at 972-428-8698 or 972-243-3522
