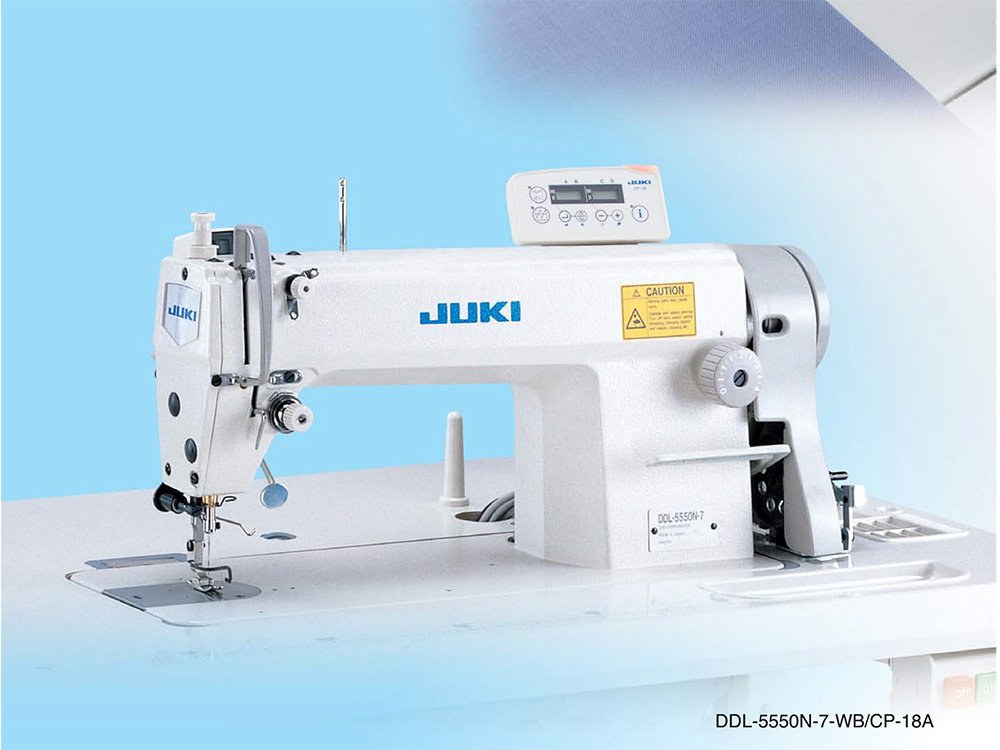

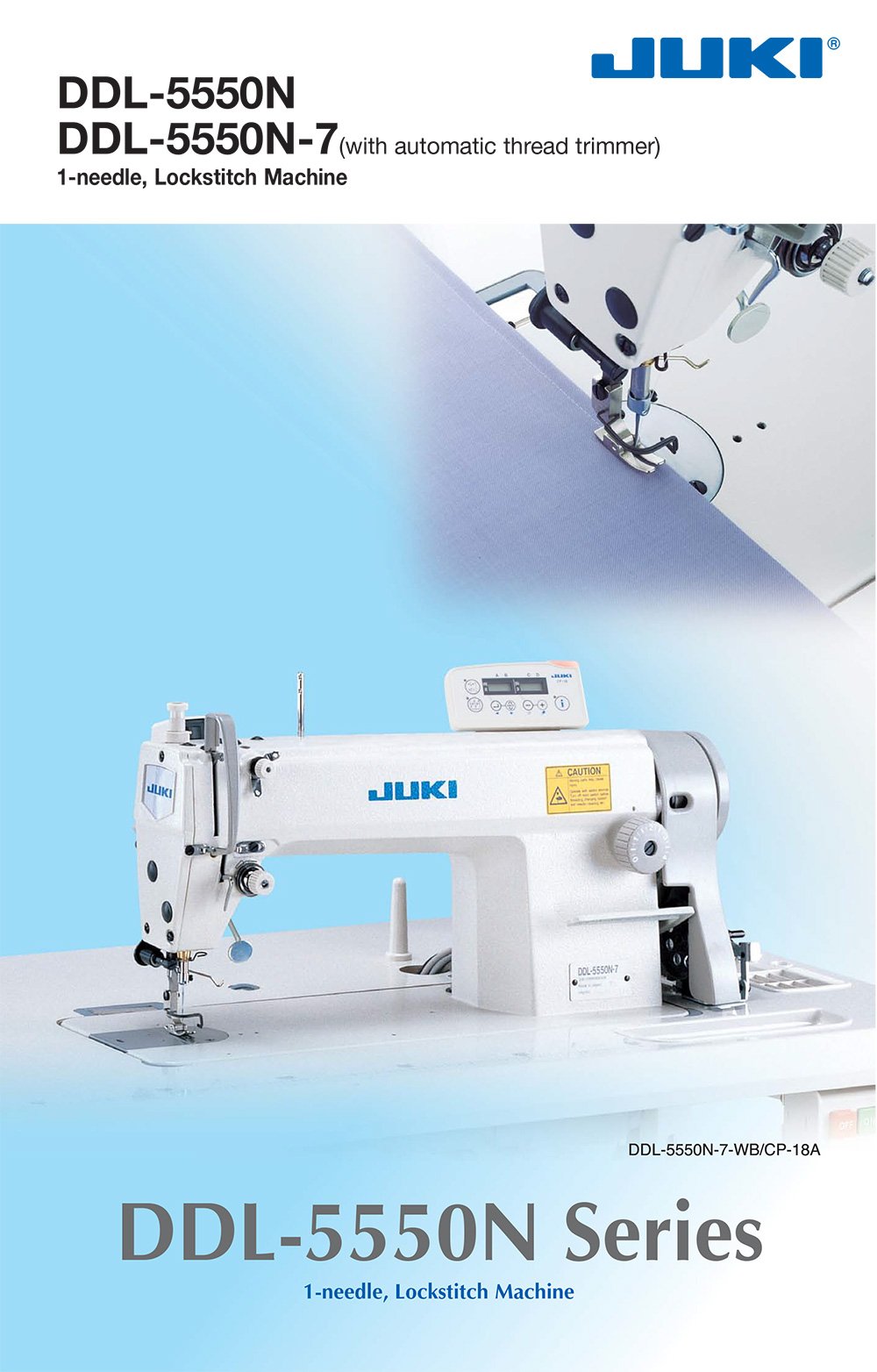

JUKI DDL-5550N-7 Automatic Straight Stitch Sewing Machine with Auto Thread Trimmer, Foot Lift, CP-18 Control Panel, JAPAN
The JUKI DDL-5550N-7 is a full automatic single needle sewing machine ideal for sewing light to medium weight materials.
Since the introduction of the DDL-8700 and DDL-9000C machines a few years ago, JUKI has put the 5550N on the chopping block. However, due to the immense popularity and worldwide demand from the sewing community, they wisely decided to keep it in production. This machine is loved from the most ardent professional designers to big multinational sewing factories. Currently produced in limited quantities, JUKI still stocks this machine and we are happy to offer it today.
This model comes equipped with full auto functions:
- Automatic Thread Trimmer
- Automatic Foot Lift
- Automatic Back Tack Settings
- Original JUKI Control Box and SERVO Motor
- CP-18A (or optional, full size CP-180A) Top-Mounted Control Panels
- Priced and delivered complete and fully assembled – ready to sew upon delivery
This is a MADE IN JAPAN machine with superior refinement of components and assembly process.
DDL-5550N-7(with automatic thread trimmer)

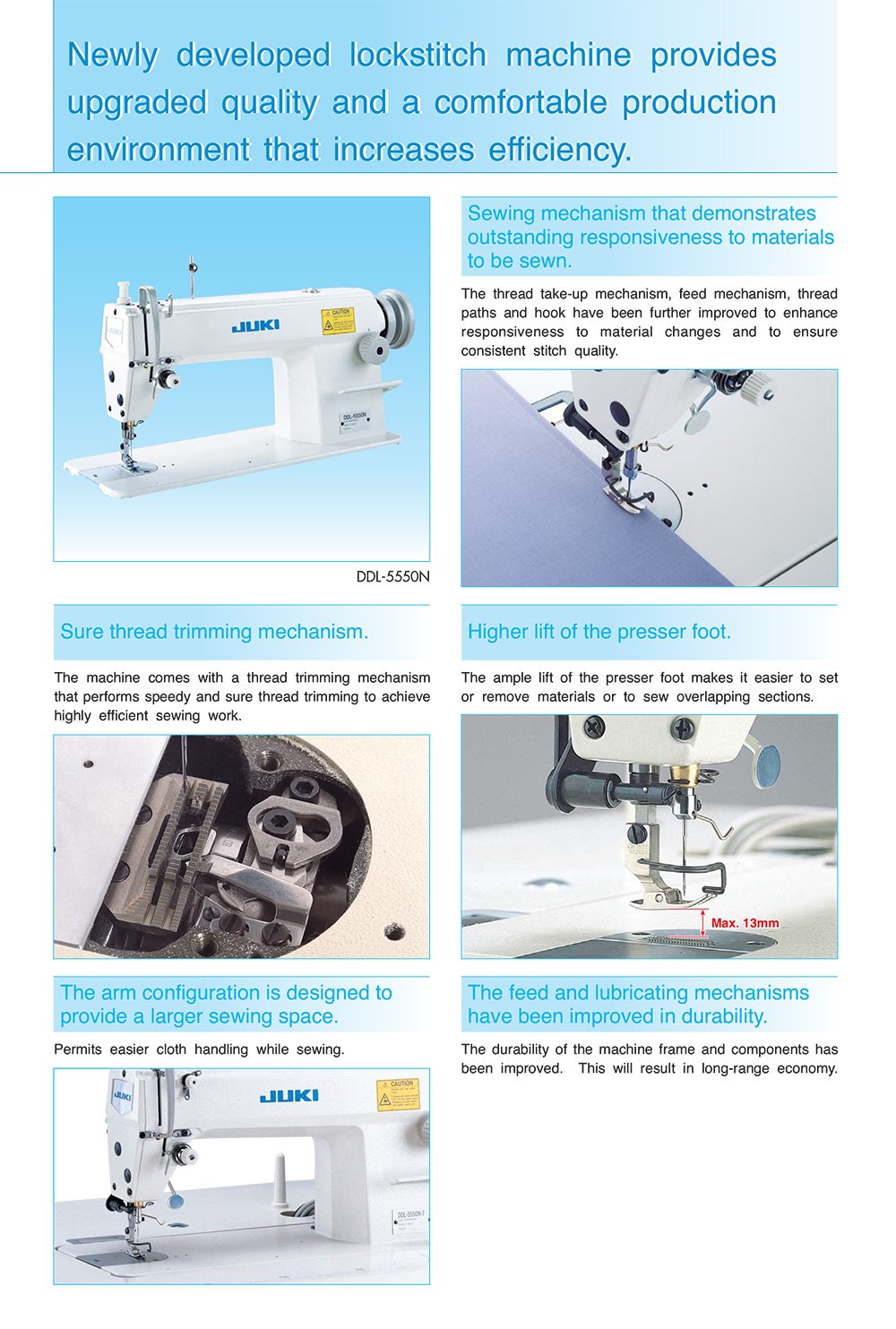

The DDL-5550N Series lockstitch machine provides upgraded quality and a comfortable production environment that increases efficiency.
The thread take-up mechanism, feed mechanism, thread paths and hook have been further improved to enhance DDL-5550N responsiveness to material changes and to ensure consistent stitch quality.
Sure thread trimming mechanism (DDL-5550N-7).
The machine comes with a thread trimming mechanism that performs speedy and sure thread trimming to achieve highly efficient sewing work.
Higher lift of the presser foot.
The ample lift of the presser foot makes it easier to set or remove materials or to sew overlapping sections.

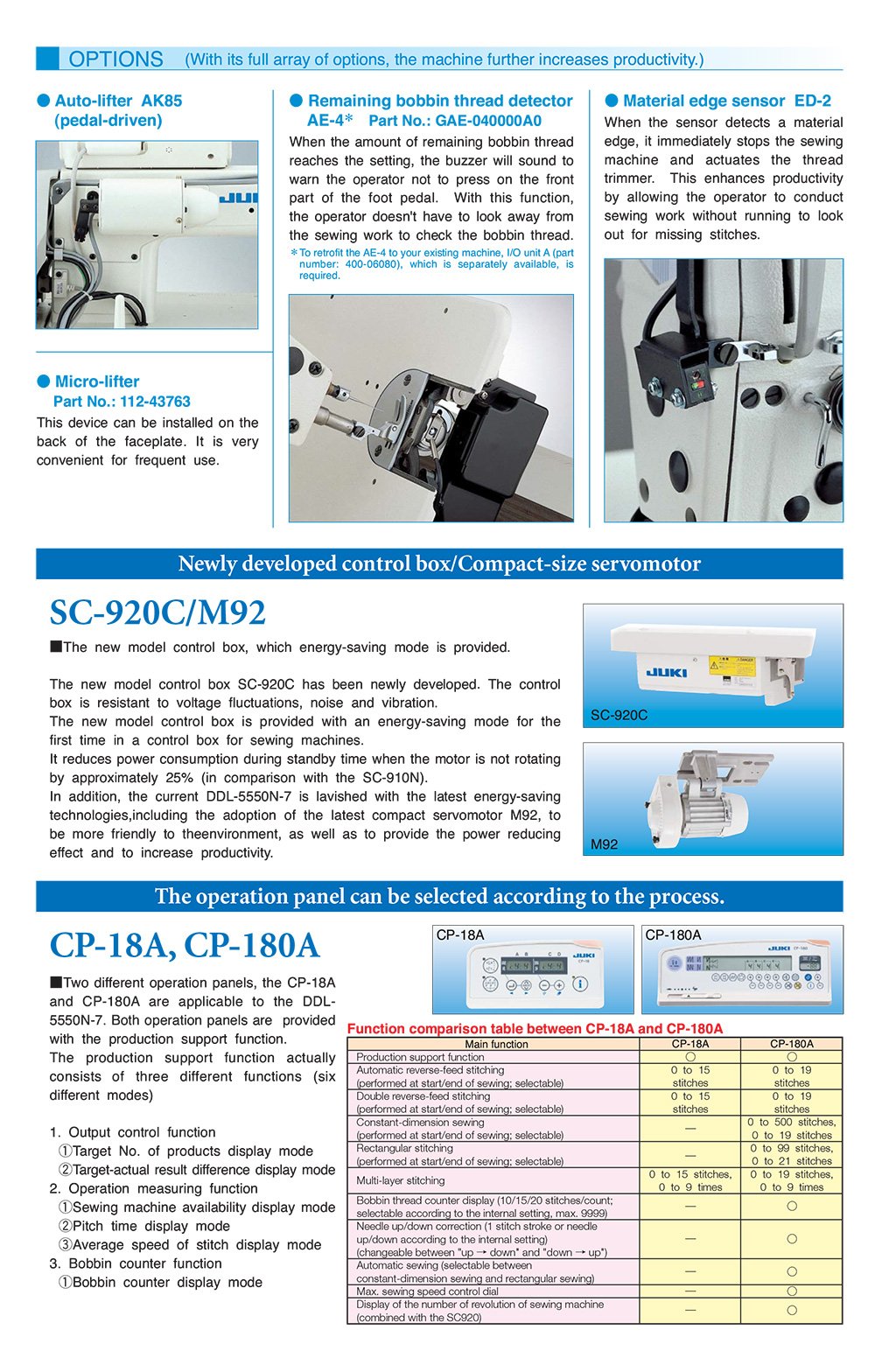

Newly developed control box SC-920/ Compact-size servomotor M92.
The new model control box SC-920C has been newly developed. The control box is resistant to voltage fluctuations, noise, and vibration. The new model control box is provided with an energy-saving mode for the first time in a control box for sewing machines. It reduces power consumption during standby time when the motor is not rotating by approximately 25% (in comparison with the SC-910N).In addition, the current DDL-5550N-7 is lavished with the latest energy-saving technologies, including the adoption of the latest compact servomotor M92, to be more friendly to the environment, as well as to provide the power reducing effect and to increase productivity.
The operation panel CP-18A and CP-180A can be selected according to the process.
Two different operation panels, the CP-18A and CP-180A are applicable to the DDL-5550N-7. Both operation panels are provided with the production support function. The production support function actually consists of three different functions (six different modes).

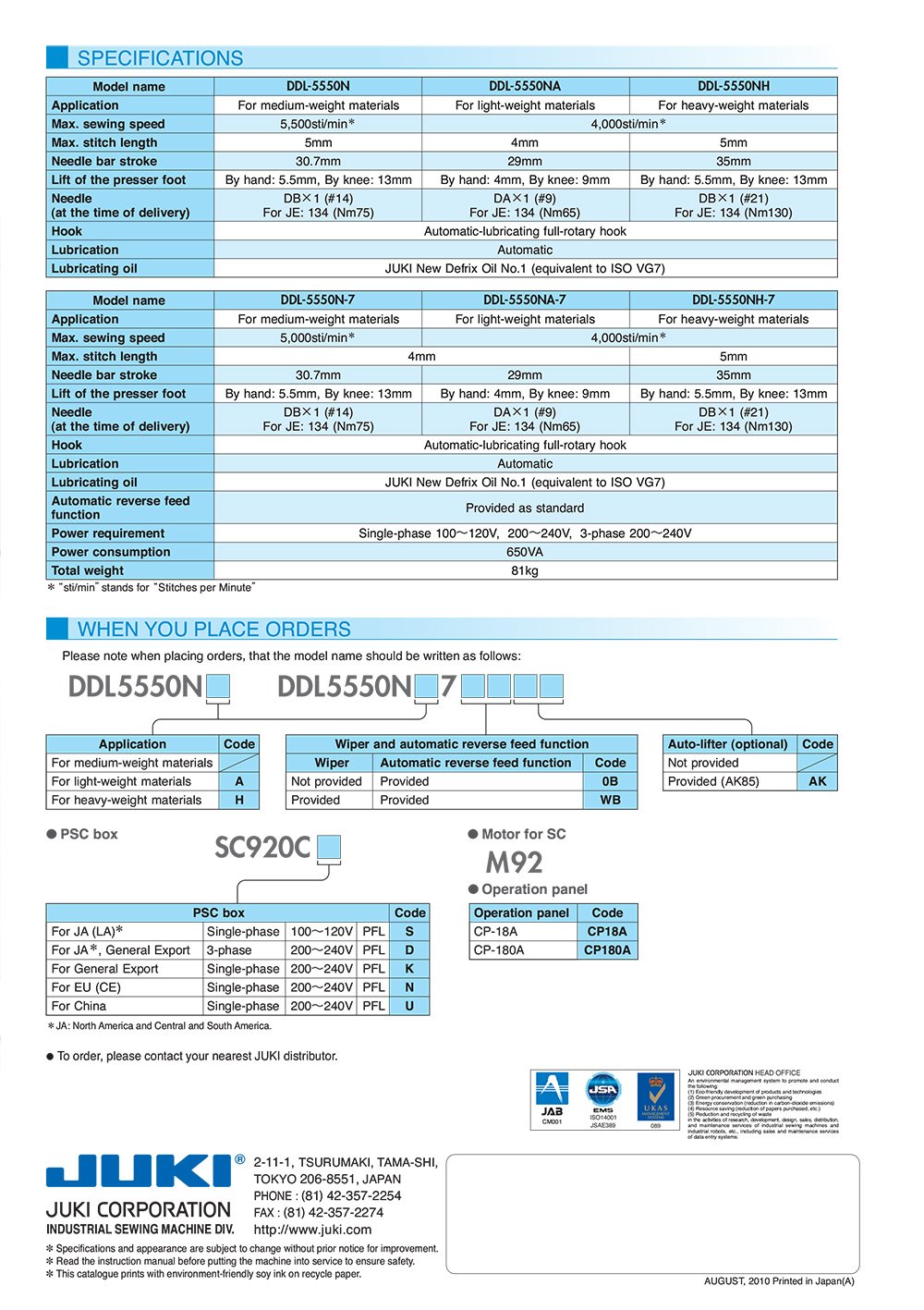

| Model | DDL-5550N-7 | |
|---|---|---|
| Application | Medium-weight | |
| Max. sewing speed | 5‚000sti/min | |
| Max. sitch length | 4mm | |
| Presser foot | By knee: 13mm | |
| Needle | DB×1 (#14)‚134 (Nm75) | |
Contact us for more details or to purchase this machine over the phone.
